DTC 72: Side-Airbag Module (RH) (Squib) System Fault 2 (Open in the Squib Circuit): Notes

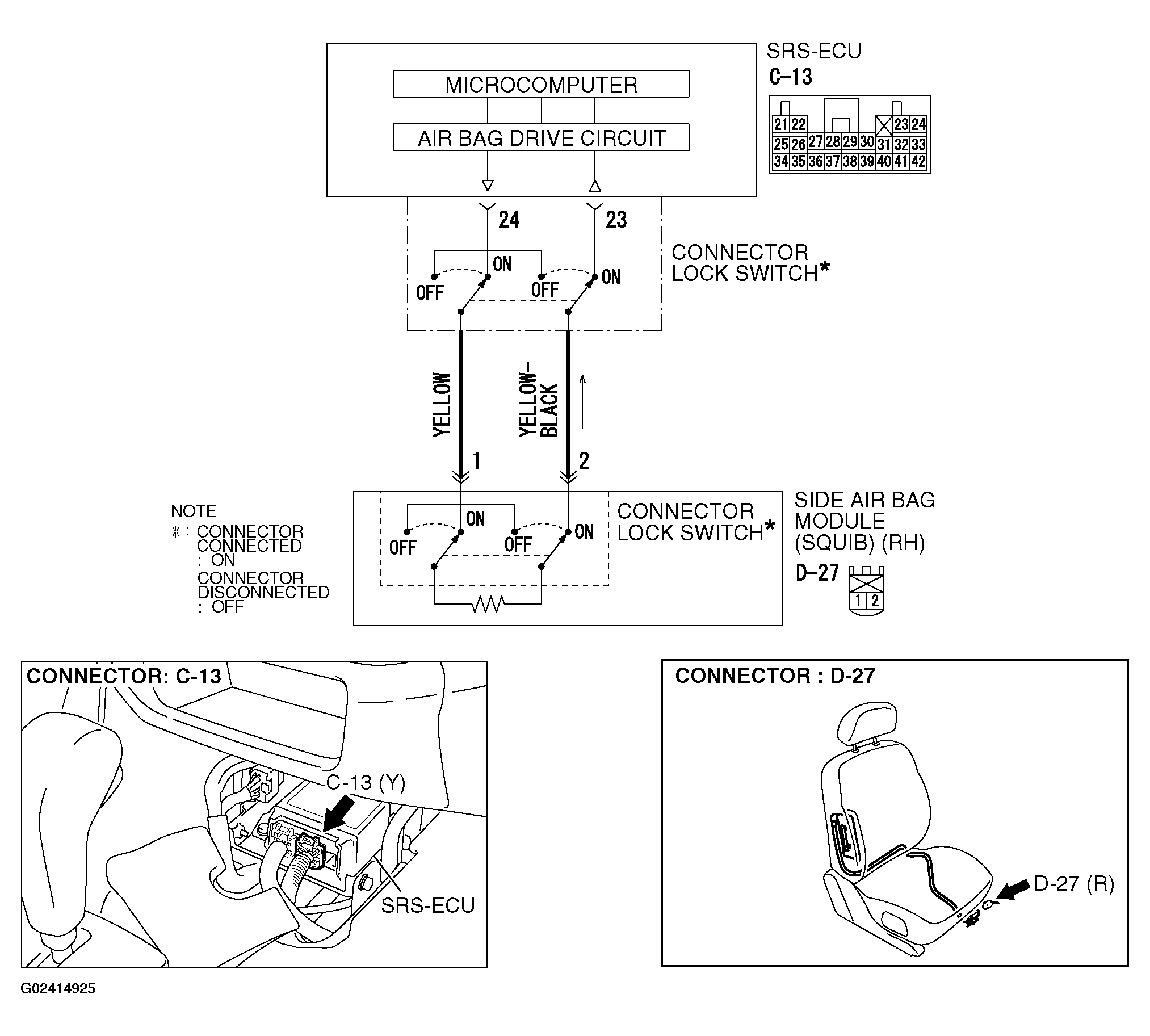

Fig 1: Side-Airbag Module (RH) (Squib) Circuit

G02414925

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
