DTC 65: Passenger's (Front) Air Bag Module (Squib) System Fault for Ground Circuit (Short-Circuited to Ground): Notes

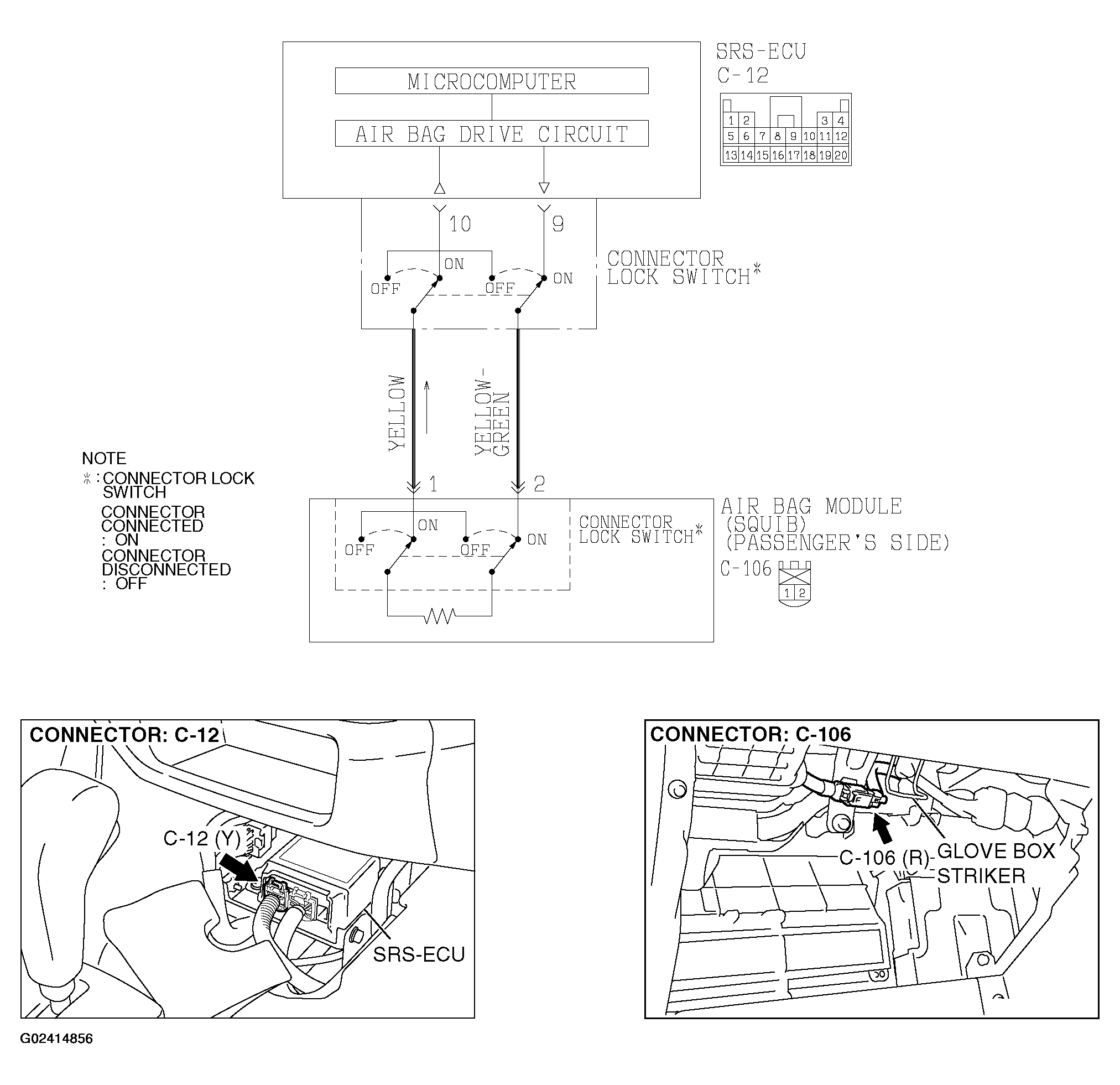

Fig 1: Passenger'S (Front) Air Bag Module (Squib) Circuit
G02414856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
