DTC 62: Driver's Air Bag Module (Squib) System Fault for Ground Circuit (Short-Circuited to Ground): Notes

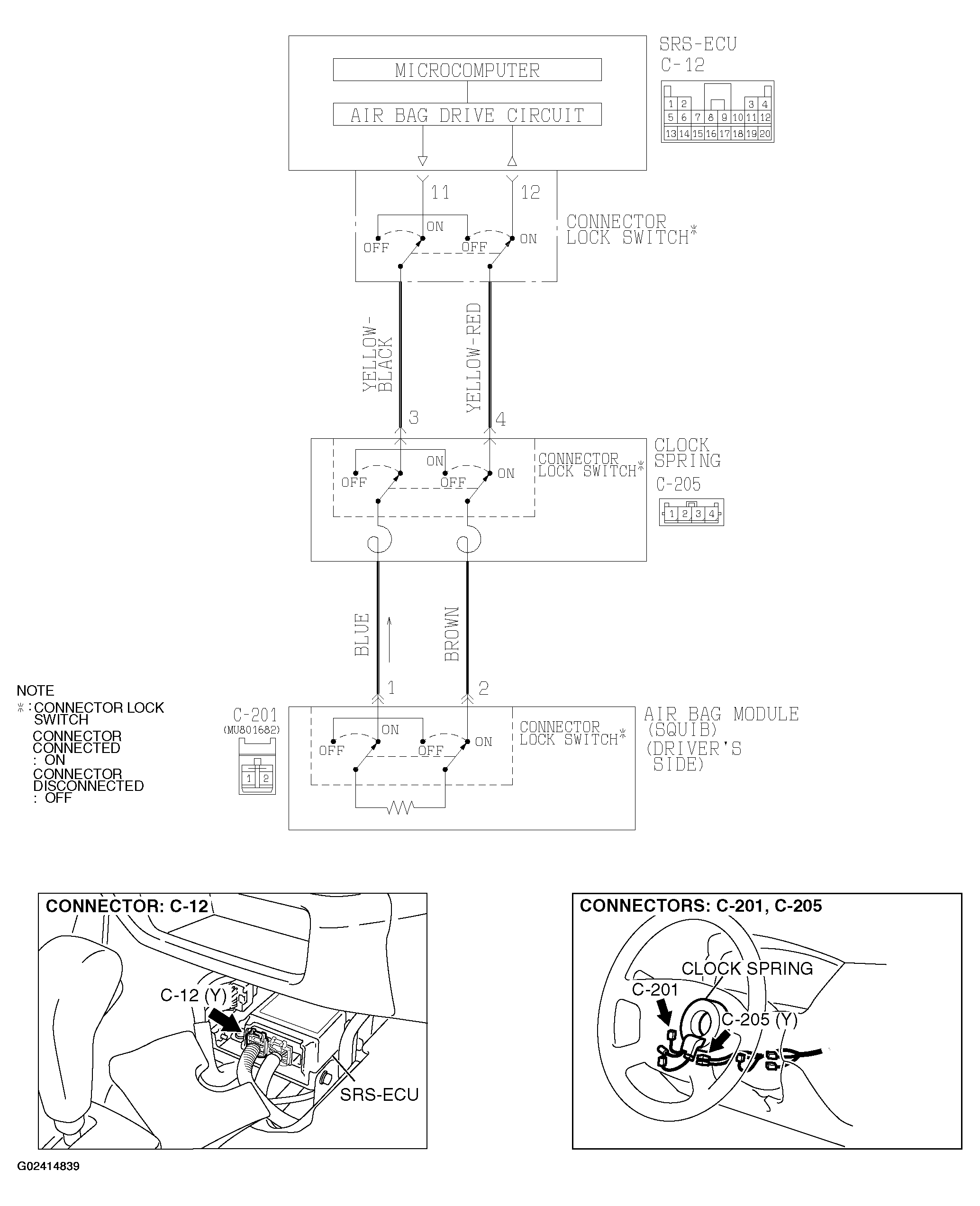

Fig 1: Driver'S Air Bag Module (Squib) Circuit

G02414839

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
