DTC 21: Driver's Air Bag Module (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit): Notes

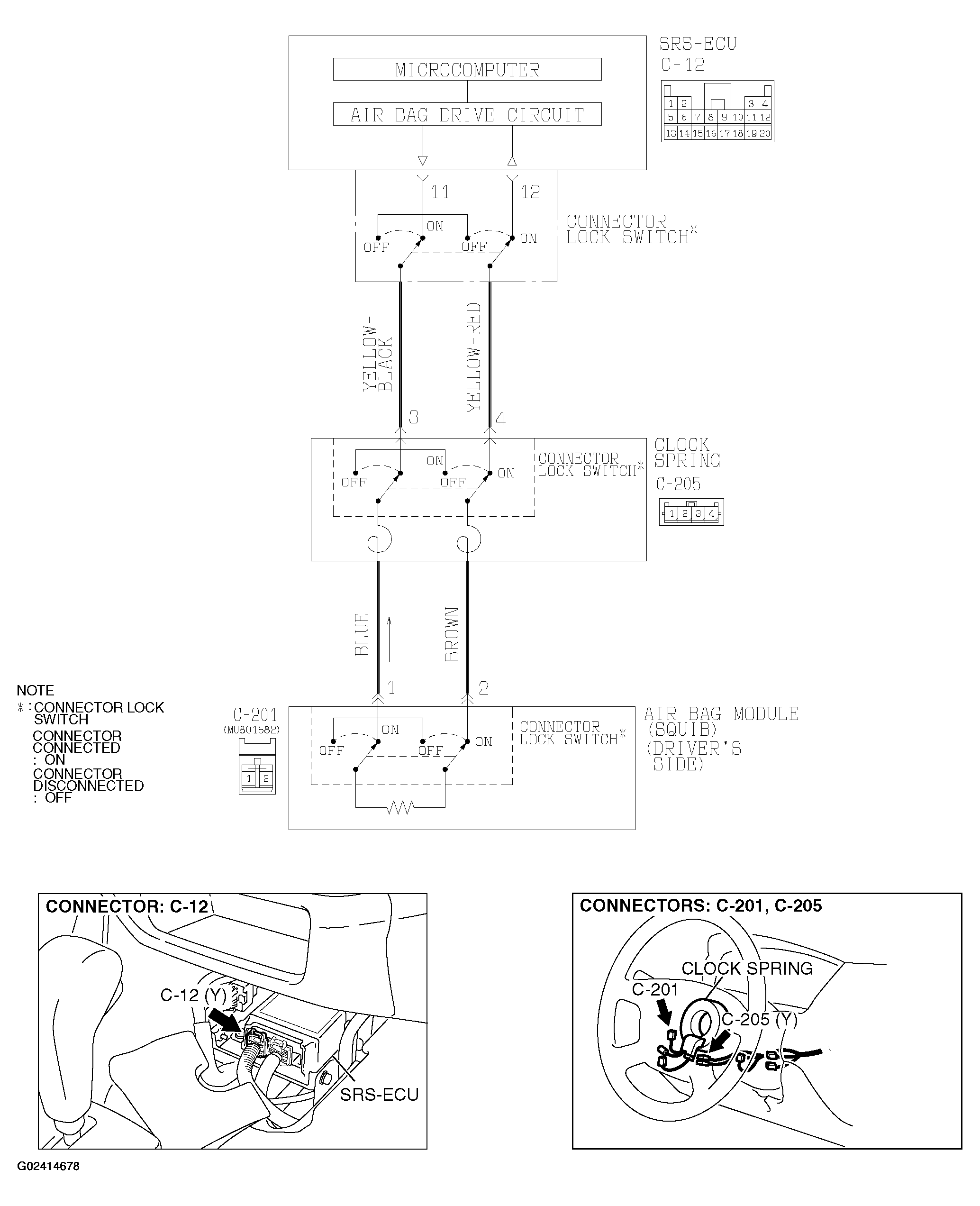

Fig 1: Driver'S Air Bag Module (Squib) Circuit
G02414678Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
