Clip Position

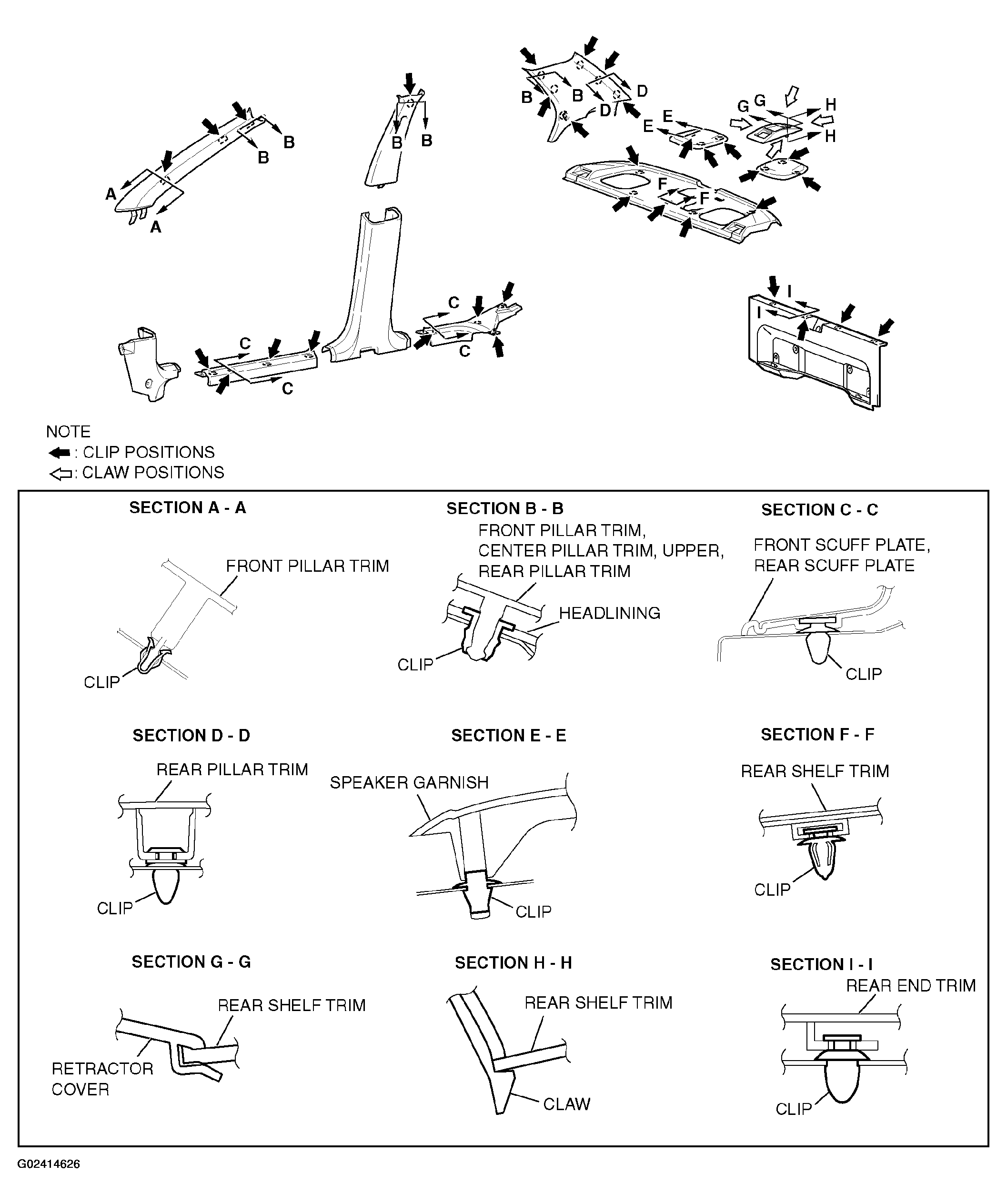

Fig 1: Identifying Clip Position
G02414626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
