Removal And Installation

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, Refer to SRS SERVICE PRECAUTIONS .

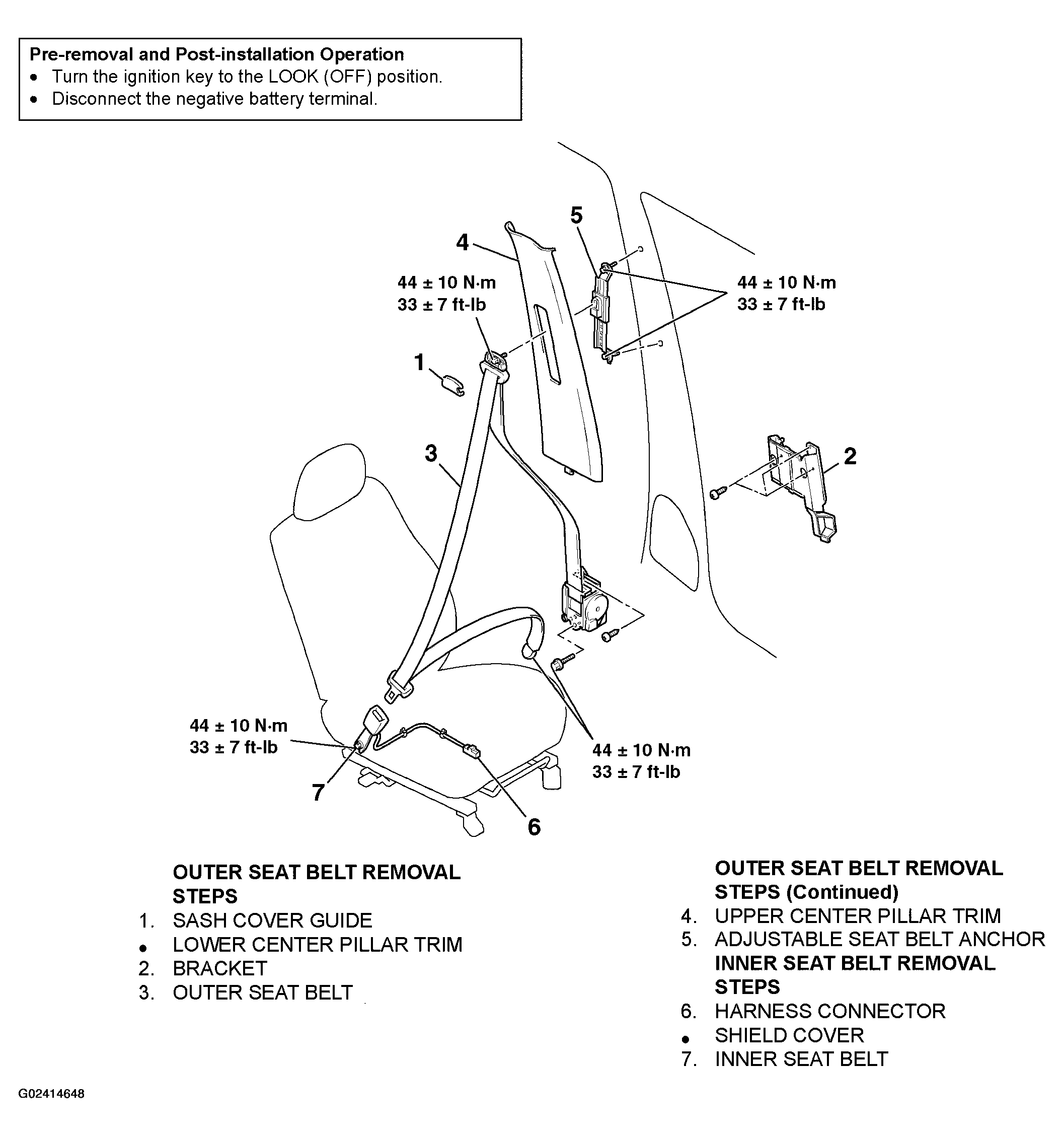

Fig 1: Removing Front Seat Belt
G02414648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
