Main Sealant And Adhesive Table

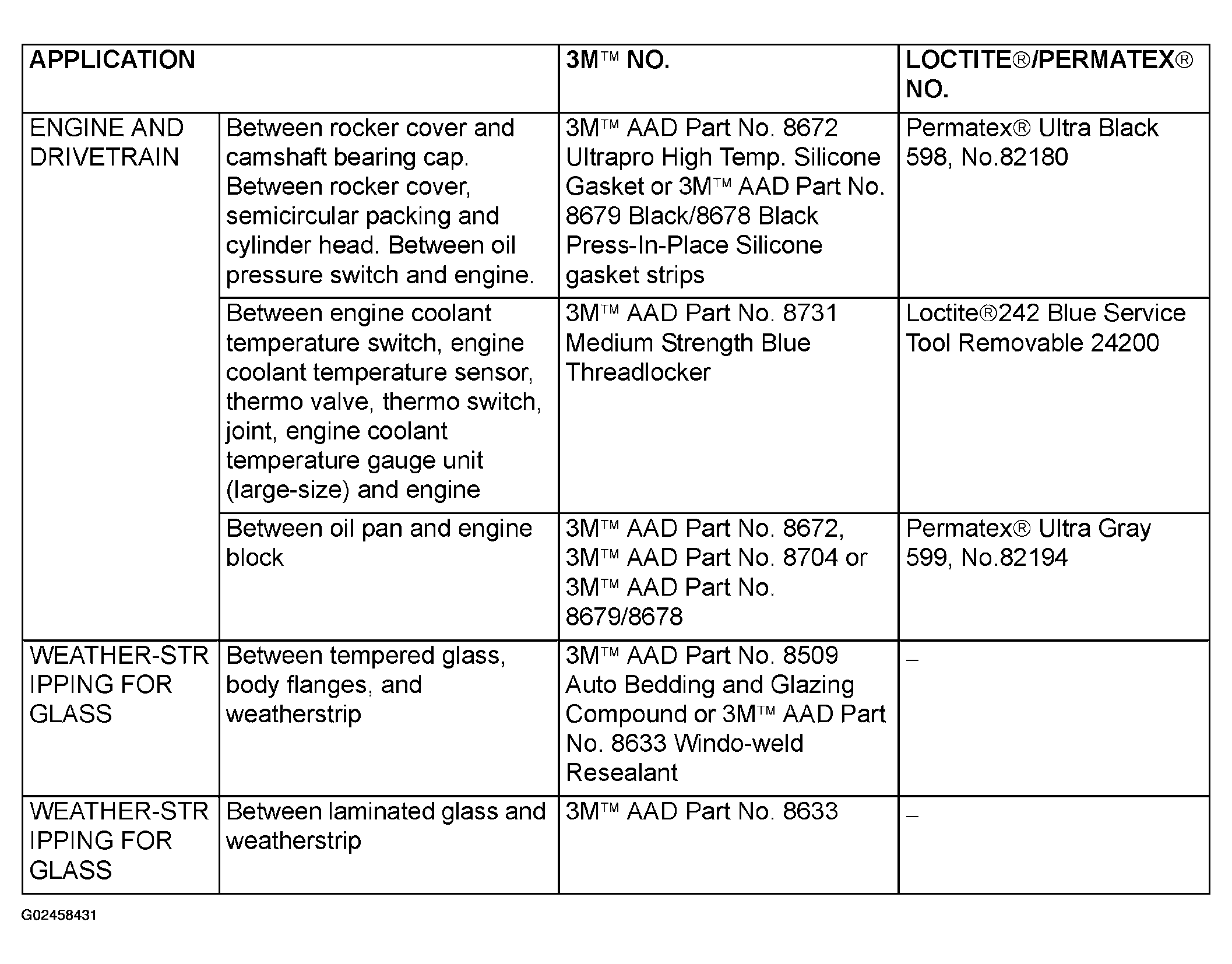

Fig 1: Main Sealant And Adhesive Reference (1 Of 3)
G02458431Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

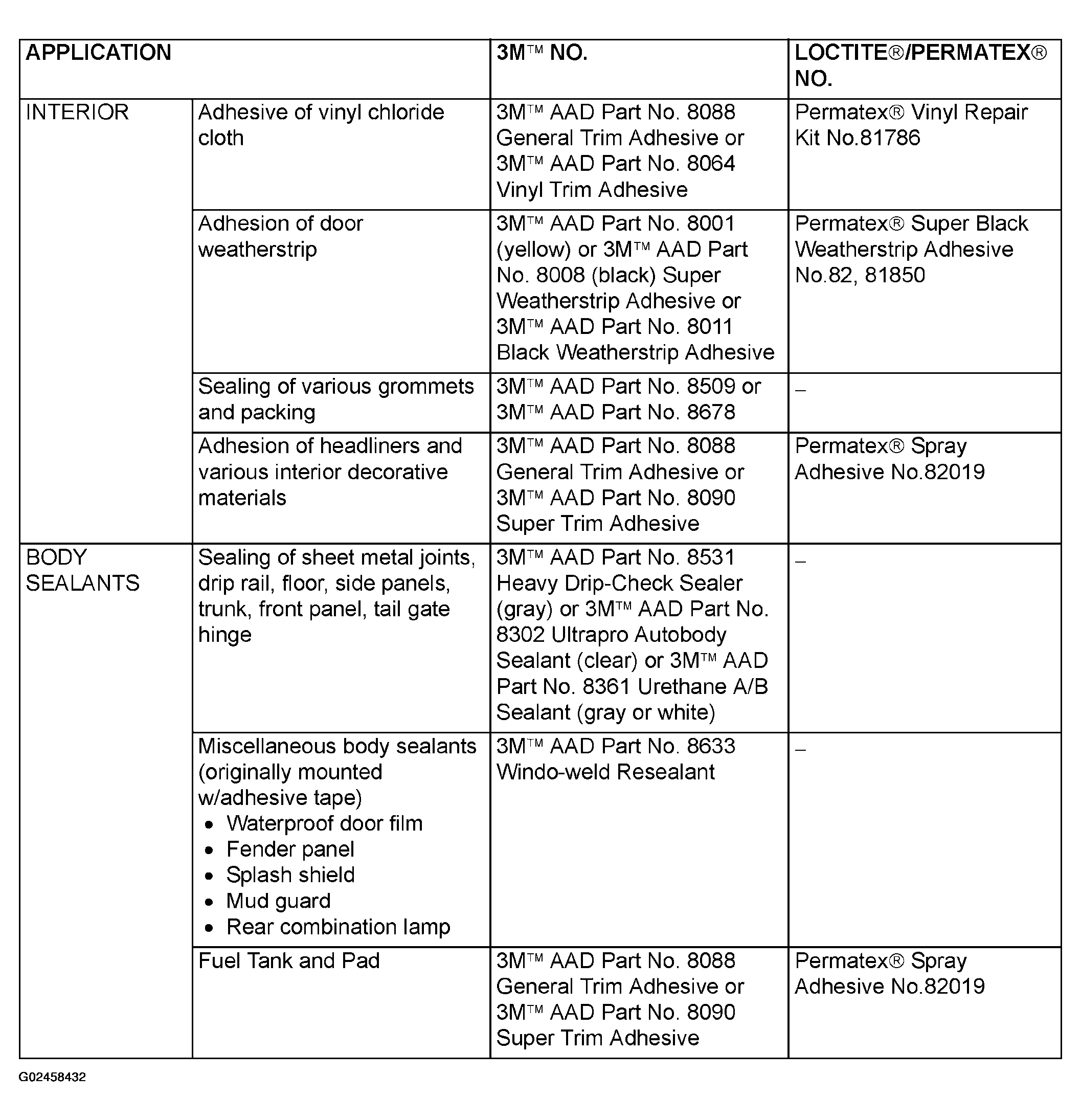

Fig 2: Main Sealant And Adhesive Reference (2 Of 3)
G02458432Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

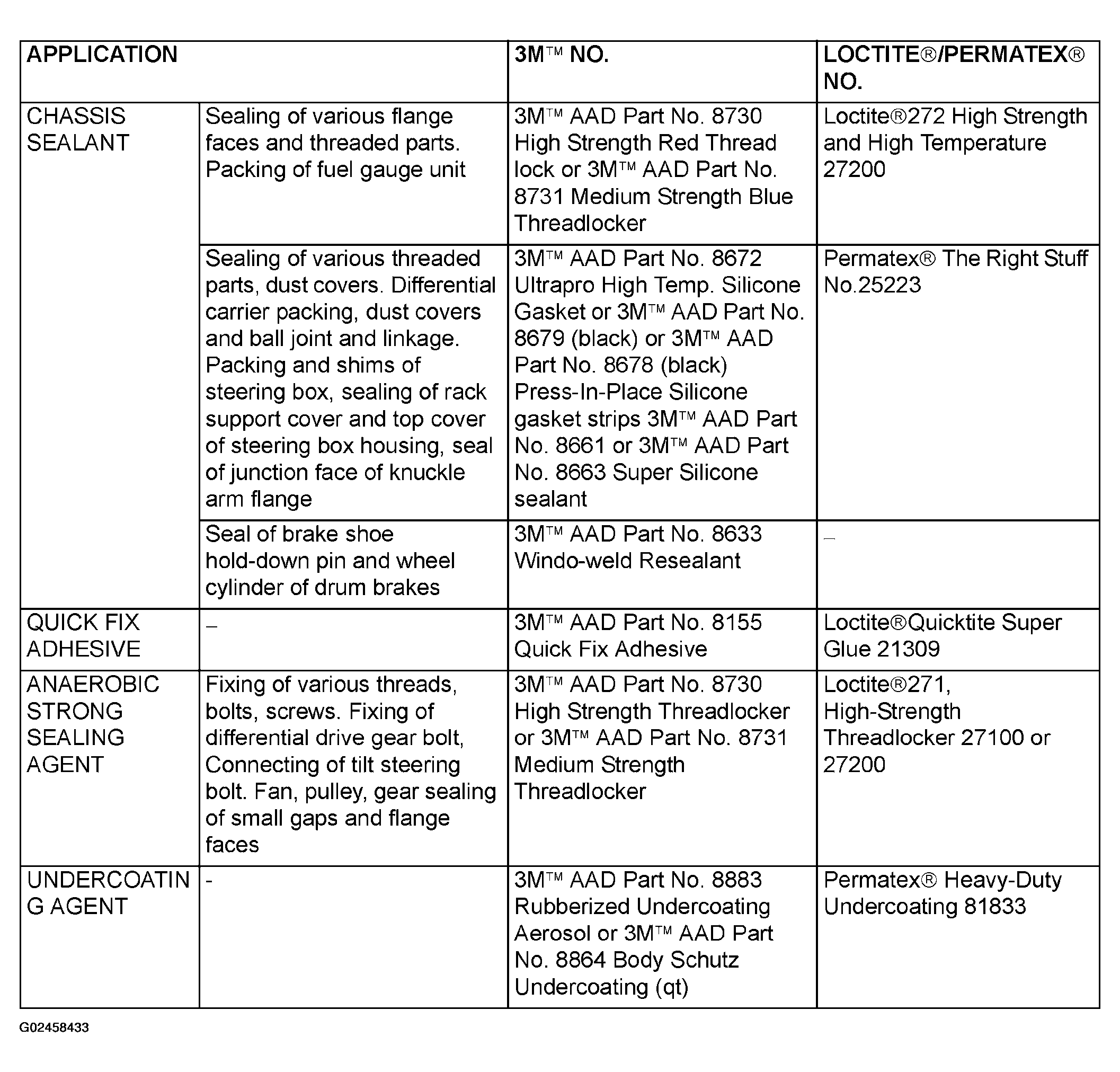

Fig 3: Main Sealant And Adhesive Reference (3 Of 3)
G02458433Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
