Hydraulic Unit Disposal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The hydraulic unit has its accumulator filled with a high-pressure gas. Never throw it into a fire. Also, never attempt to disassemble, press, weld or melt it.
  • When drilling a hole in the accumulator, be sure to wear safety goggles since drill chips may blow out together with the gas.

When discarding the hydraulic unit, drill a hole in the accumulator at the illustrated position beforehand in order to release the inside gas.

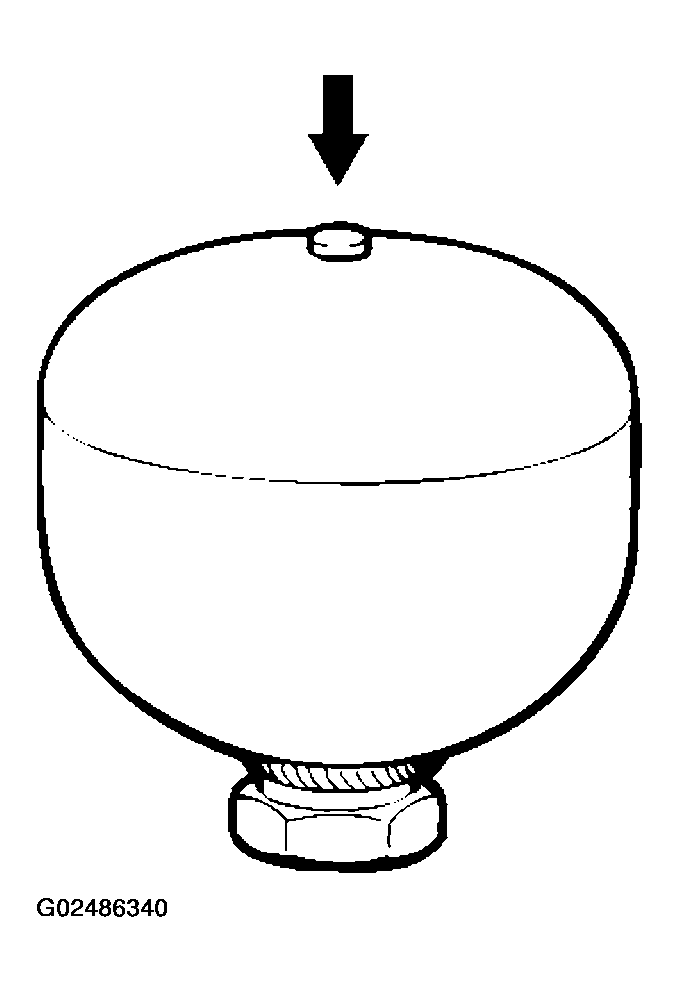

Fig 1: Identifying Position For Drilling Hole In Accumulator
G02486340Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
