Stoplight Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.

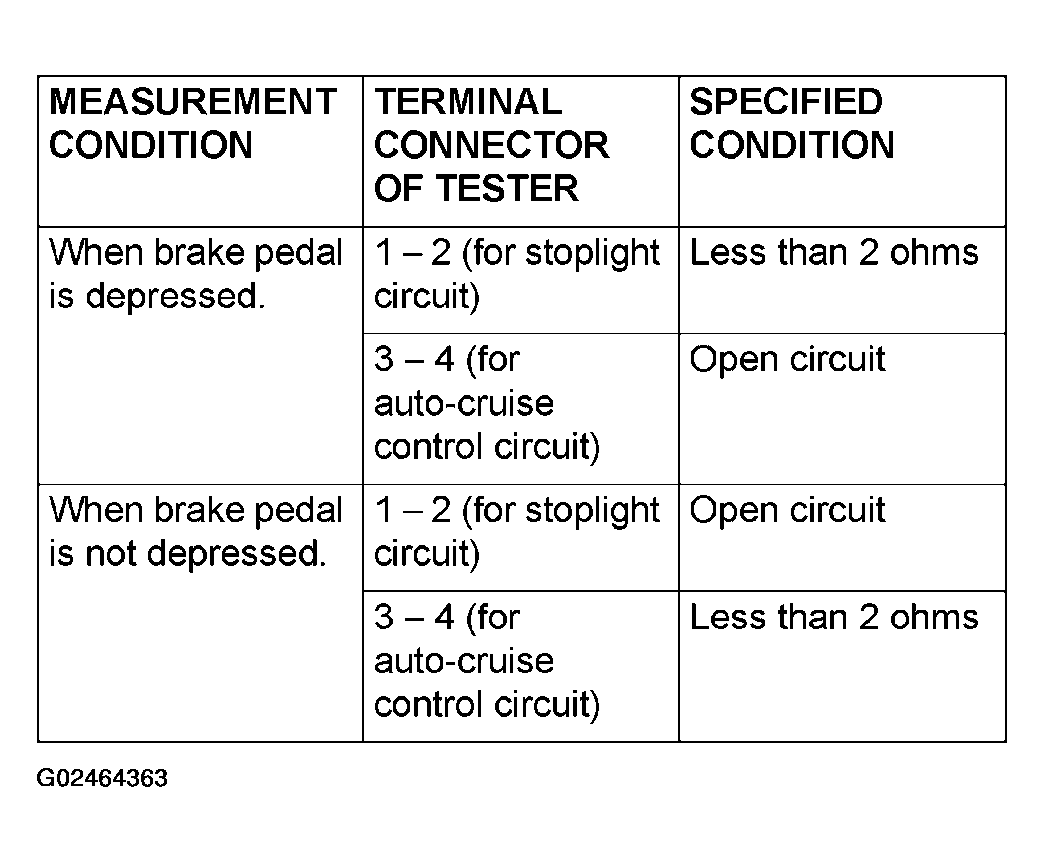

    Fig 1: Tester Connection Specified Condition Chart
    G02464363Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

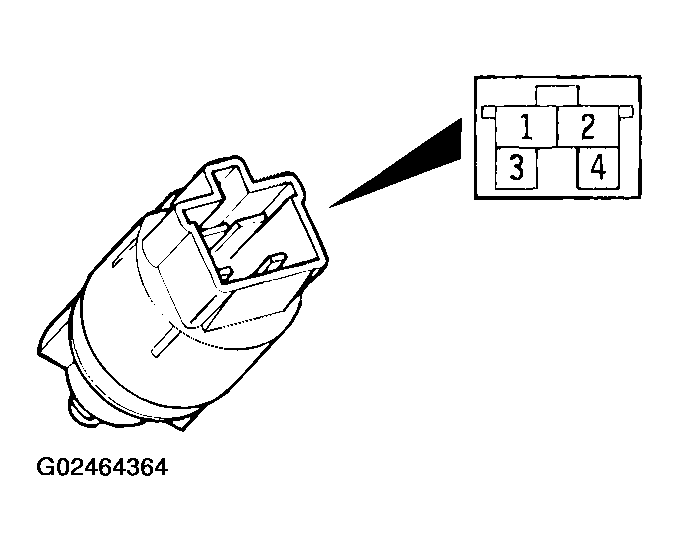

    Fig 2: Checking Stoplight Switch
    G02464364Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
