Auto-Cruise Control Switch Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove the auto-cruise control switch (Refer to AUTO-CRUISE CONTROL  .)
  2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
    AUTO-CRUISE CONTROL SWITCH CHECK

    SWITCH POSITION SPECIFIED CONDITION
    "CRUISE" (MAIN) switch "OFF" Open circuit
    "CRUISE" (MAIN) switch "ON" Less than 2 ohms
    "CANCEL" switch ON Approximately 100 Ω
    "ACC/RES" switch ON Approximately 887 Ω
    "COAST/SET" switch ON Approximately 300 Ω

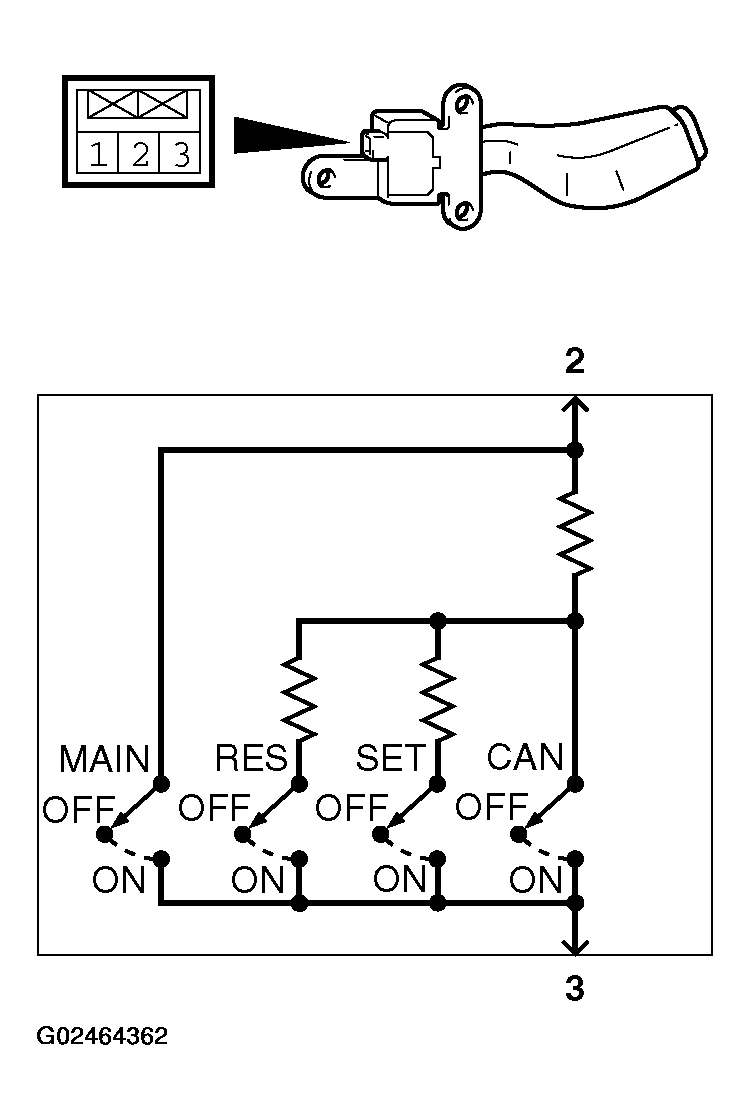

    Fig 1: Checking Auto-Cruise Control Switch
    G02464362Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
