Auto-Cruise Control Main Switch Check

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "CRUISE" (MAIN) switch is switched "ON".

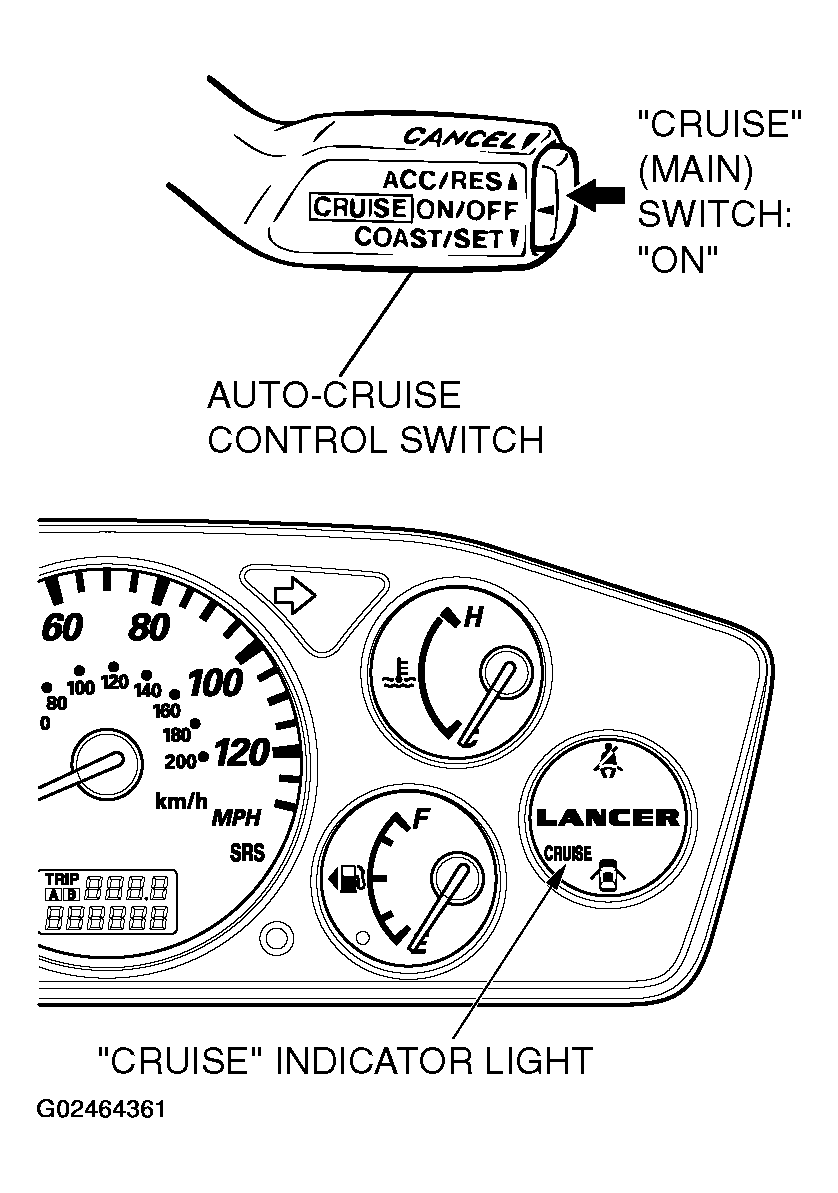

    Fig 1: Checking Auto-Cruise Control Main Switch
    G02464361Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
