DTC15: Auto-cruise Control Switch System: Notes

WARNING: This page is about a different variant/trim than selected.

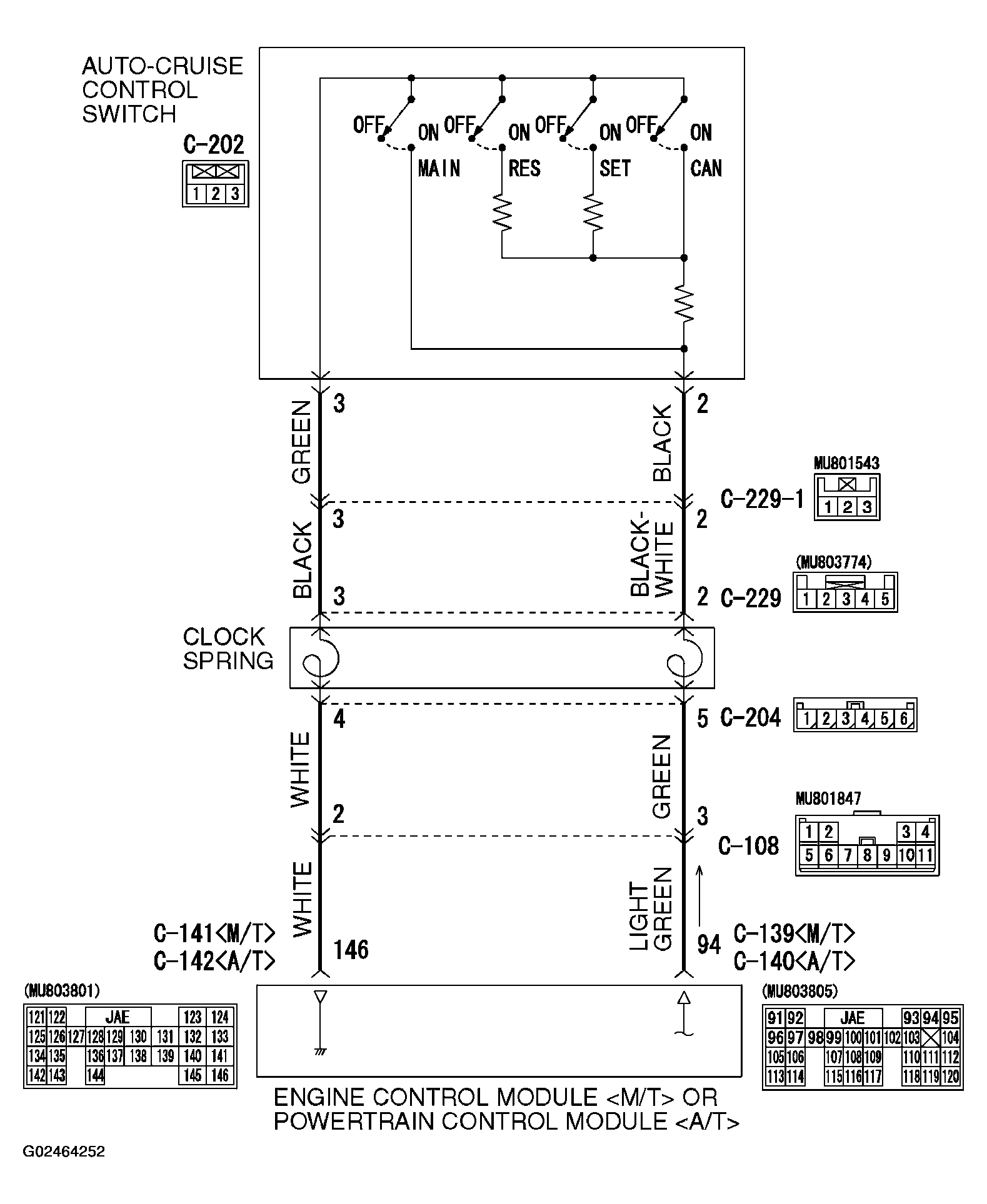

Fig 1: Auto-Cruise Control Switch System Circuit Diagram (1 Of 2)
G02464252Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

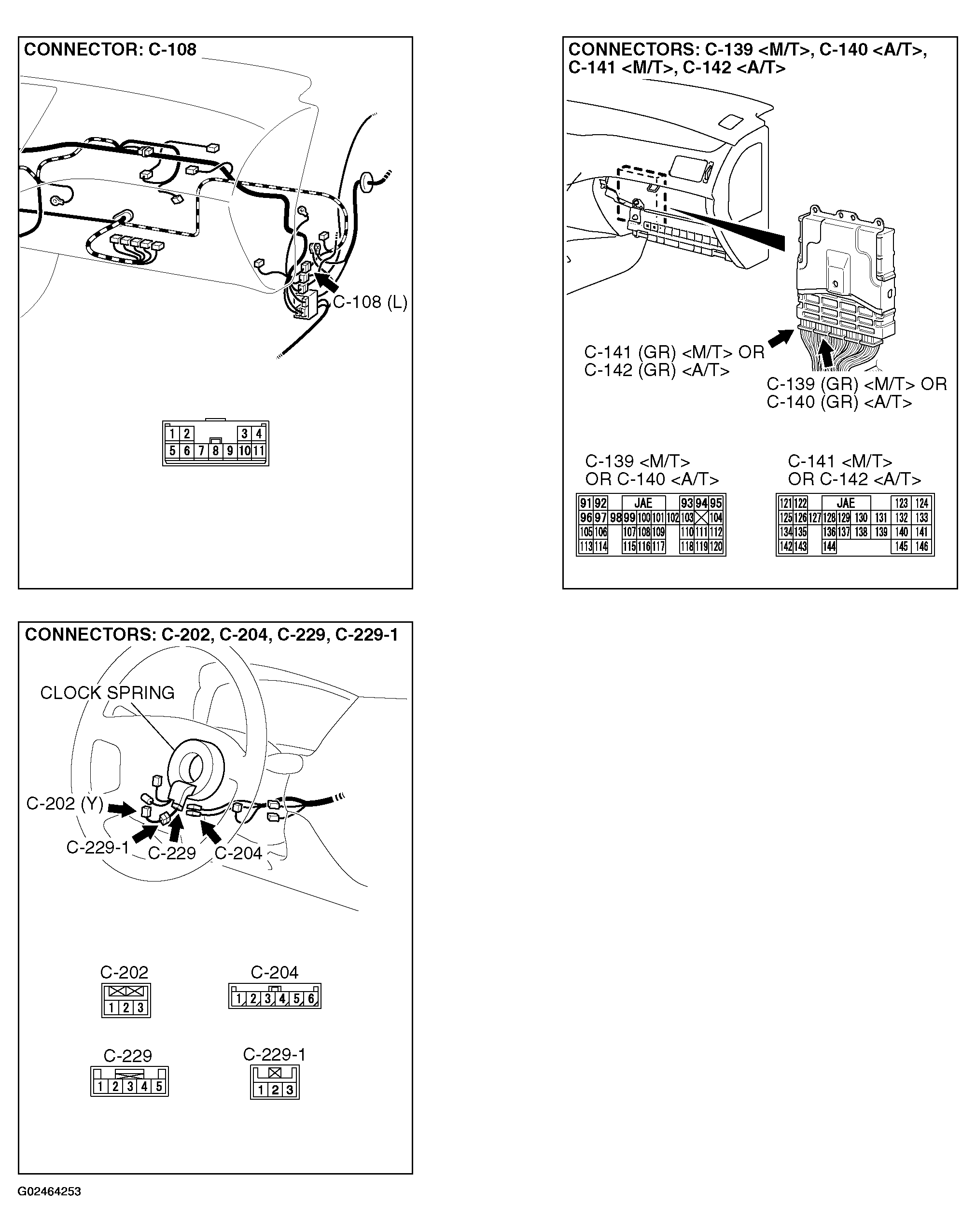

Fig 2: Auto-Cruise Control Switch System Circuit Diagram (2 Of 2)
G02464253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
