Section 38 (Auto-Cruise Control (2.4L) -- RALLIART)
>>
Auto-Cruise Control System Diagnosis
>>
Diagnostic Trouble Code Procedures
>>
DTC 22: Stoplight Switch System
>>
Notes
DTC 22: Stoplight Switch System: Notes
WARNING:
This page is about a different variant/trim than selected.

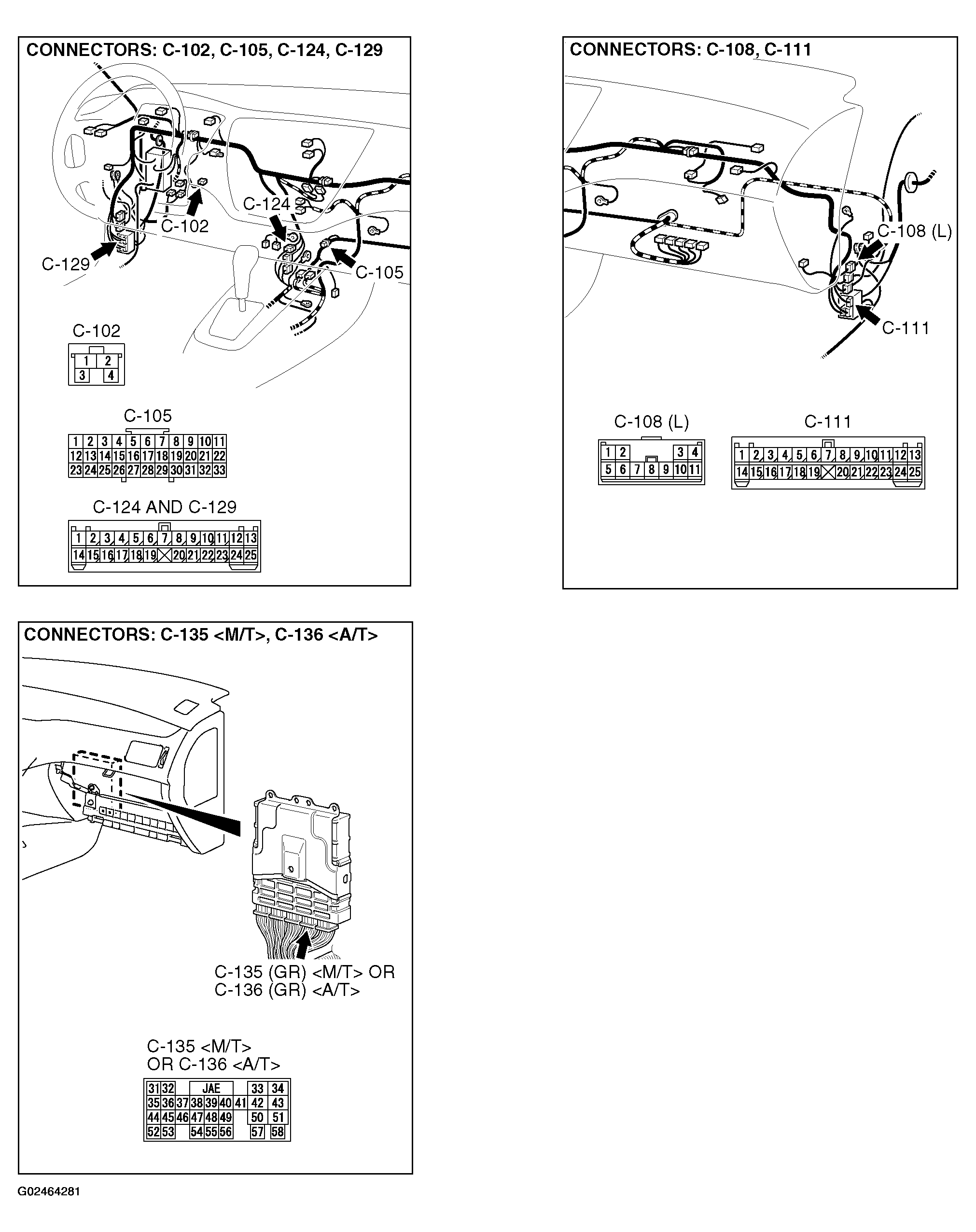

Fig 1: Stoplight Switch System Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

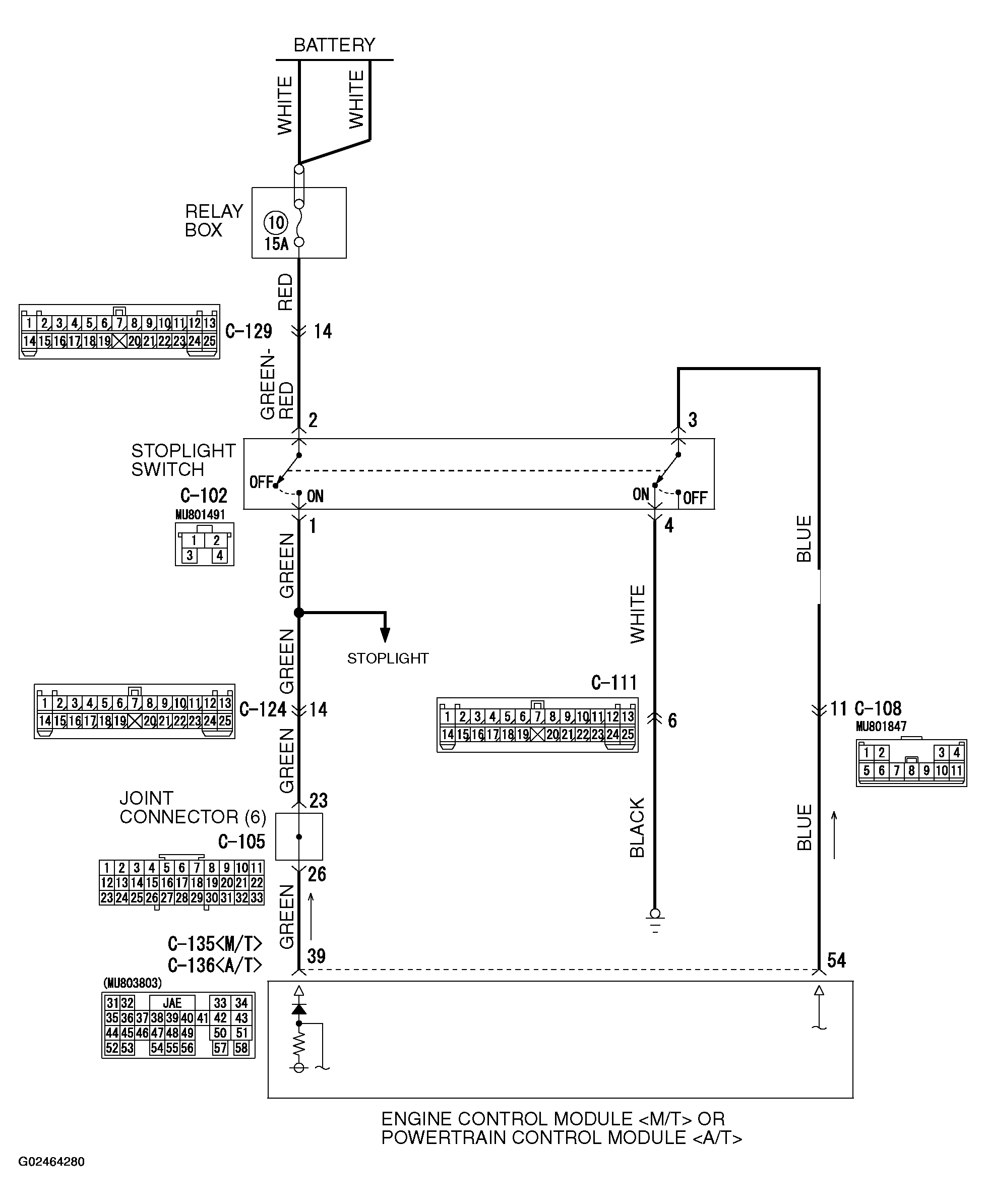

Fig 2: Stoplight Switch System Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
