Ignition Key Reminder Tone Alarm Function

WARNING: This page is about a different variant/trim than selected.

When the driver's door is opened with the ignition key inserted in the ignition key cylinder (ignition switch is in the OFF position,) the tone alarm sounds intermittently (horn sound) to indicate that the ignition key has not been removed.

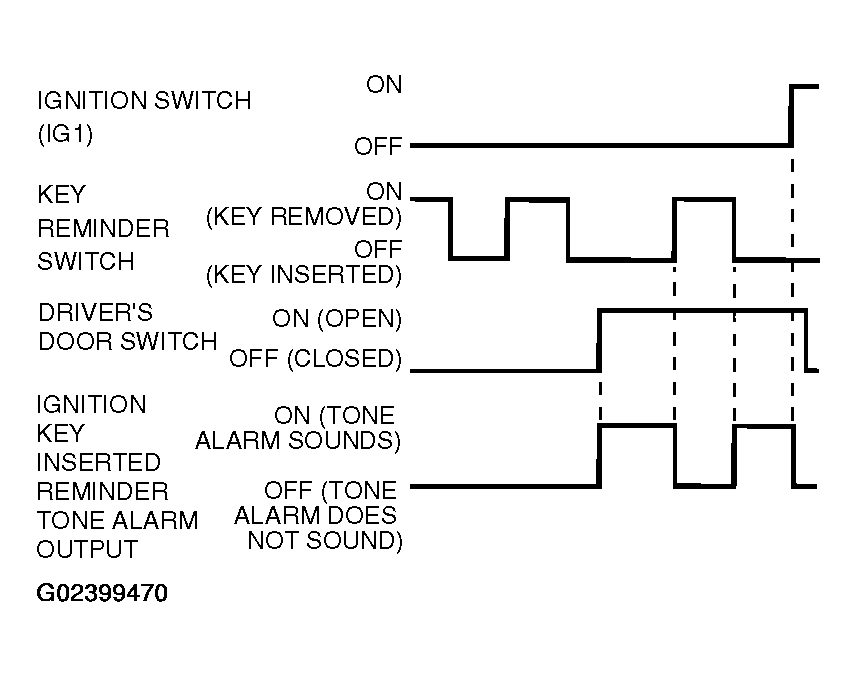

Fig 1: Drive Pattern - Ignition Key Reminder Tone Alarm Function
G02399470Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
