Front Ecu

WARNING: This page is about a different variant/trim than selected.

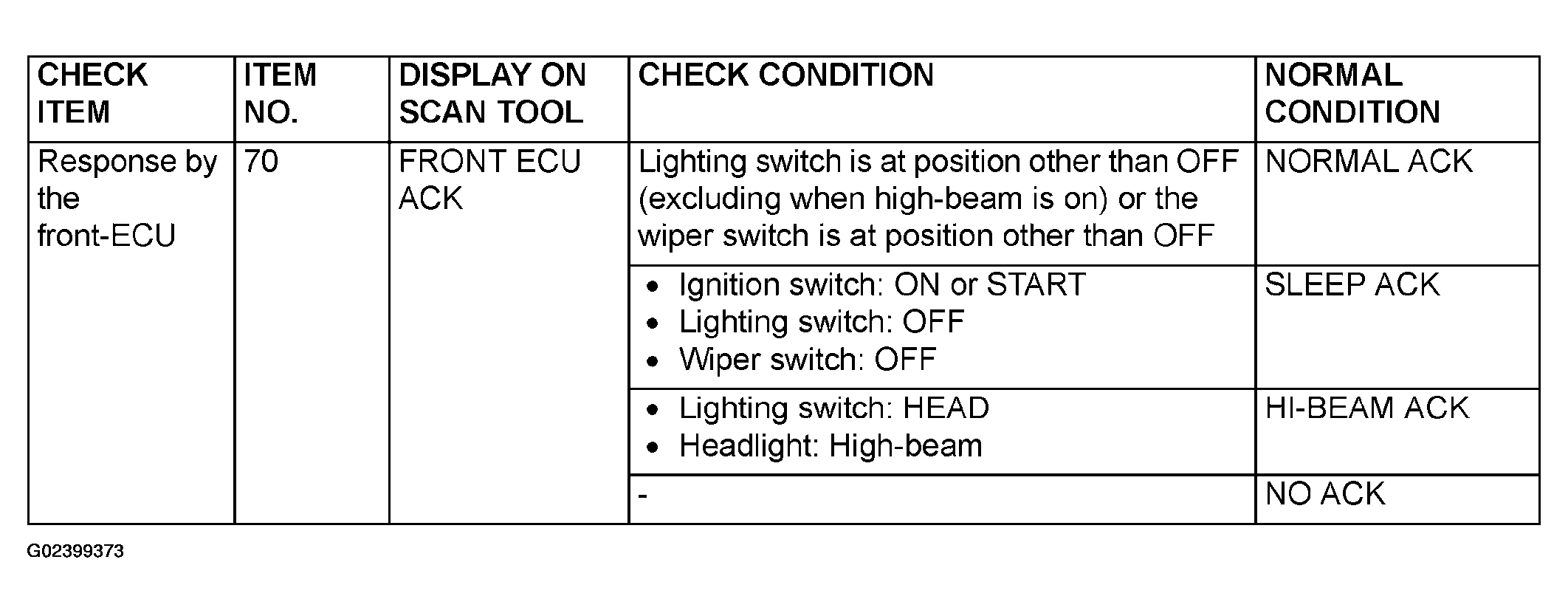

Fig 1: Data List Reference Chart - Front ECU
G02399373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: For item No. 70, the scan tool also displays "NG" under the "ECU COMM Check" when it displays "NO ACK" under the front-ECU check.
