Section 33 (Simplified Wiring System (SWS) - Evolution)
>>
SWS Diagnosis
>>
General Description
>>
Service Data Check
>>
Data List Reference Table
>>
COLUMN ECU (column switch)
COLUMN ECU (column switch)
WARNING:
This page is about a different variant/trim than selected.

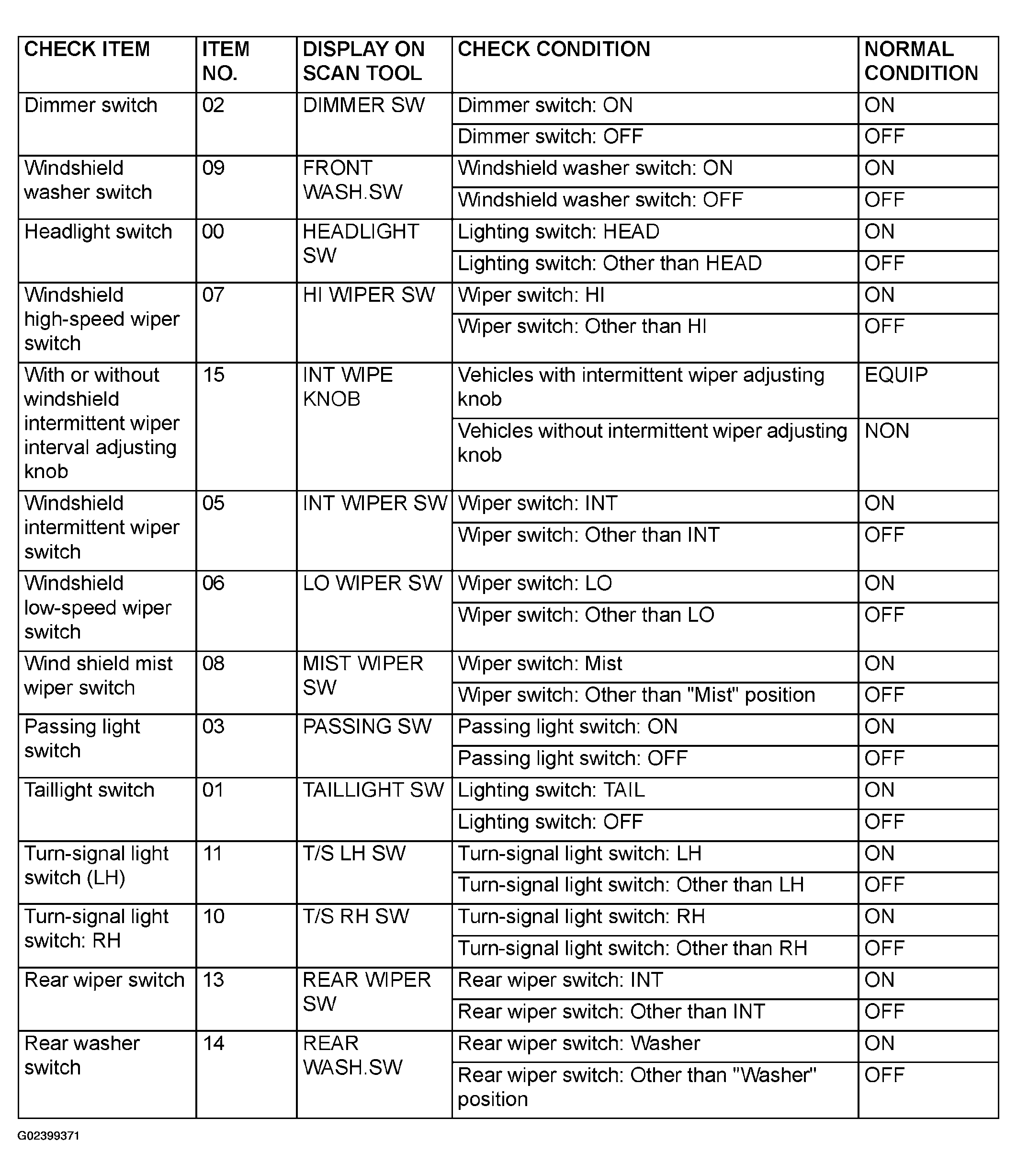

Fig 1: Data List Reference Chart - Column ECU
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
