Lining Running-In
WARNING: This page is about a different variant/trim than selected.
Carry out running-in by the following procedure when replacing the parking brake linings or the rear brake disc rotors, or when brake performance is insufficient.
CAUTION:
Carry out running-in a place with good visibility, and pay careful attention to safety.
- Adjust the parking brake stroke to the standard value.
- Standard value [Operation force: Approximately 200 N (45 pounds)]: 5 - 7 notches

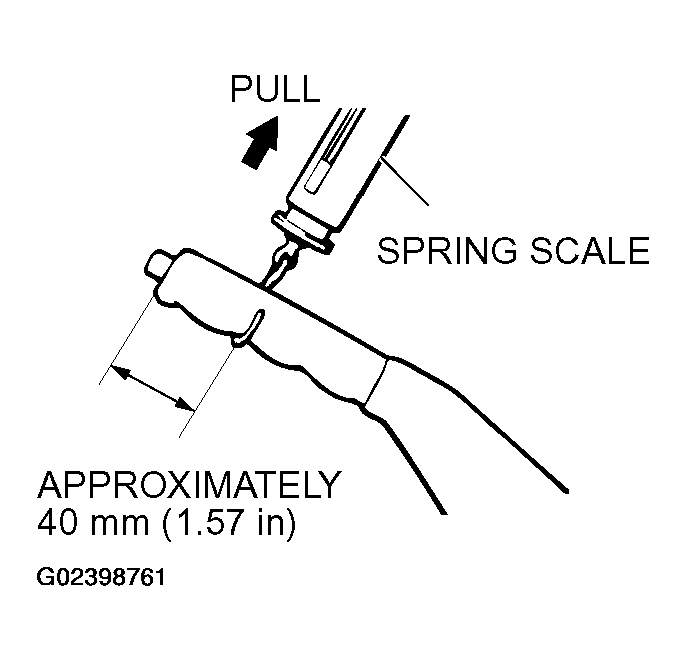

- Hook a spring scale onto the center of the parking brake lever grip and pull it with a force of 100 - 150 N (22 - 34 pounds) in a direction perpendicular to the handle.
- Drive the vehicle at a constant speed of 35 - 50 km/h (22 - 31 mph) for 100 meters (328 feet).
- Release the parking brake and let the brakes cool for 5 -10 minutes.
- Repeat the procedure in steps 2 to 4, four or five times.
