Stoplight Switch Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect an ohmmeter between the stoplight switch connector terminals.
  2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.

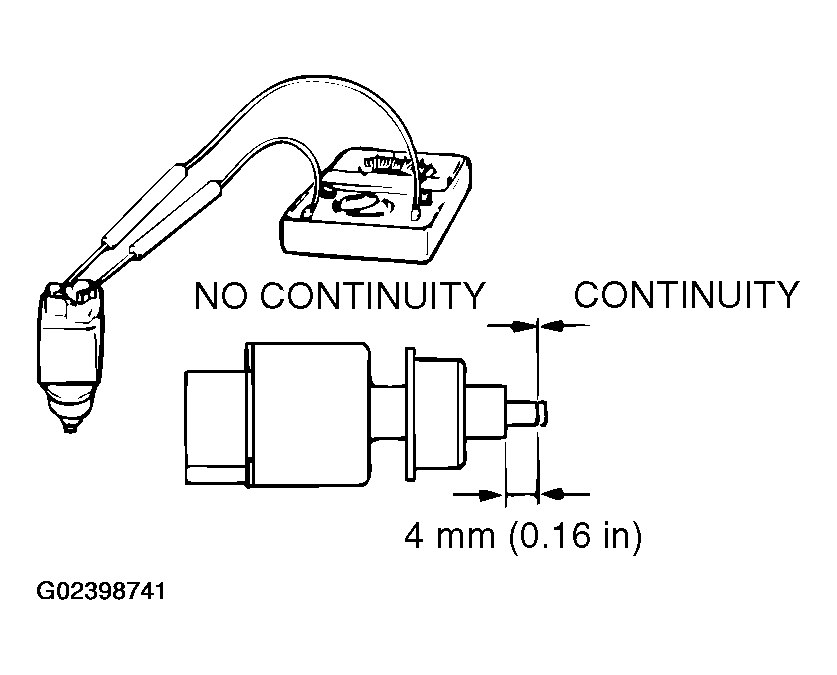

    Fig 1: Measuring Ohmmeter Between Stoplight Switch Connector Terminals
    G02398741Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
