DTC 71: Lateral G-Sensor System: Notes

WARNING: This page is about a different variant/trim than selected.

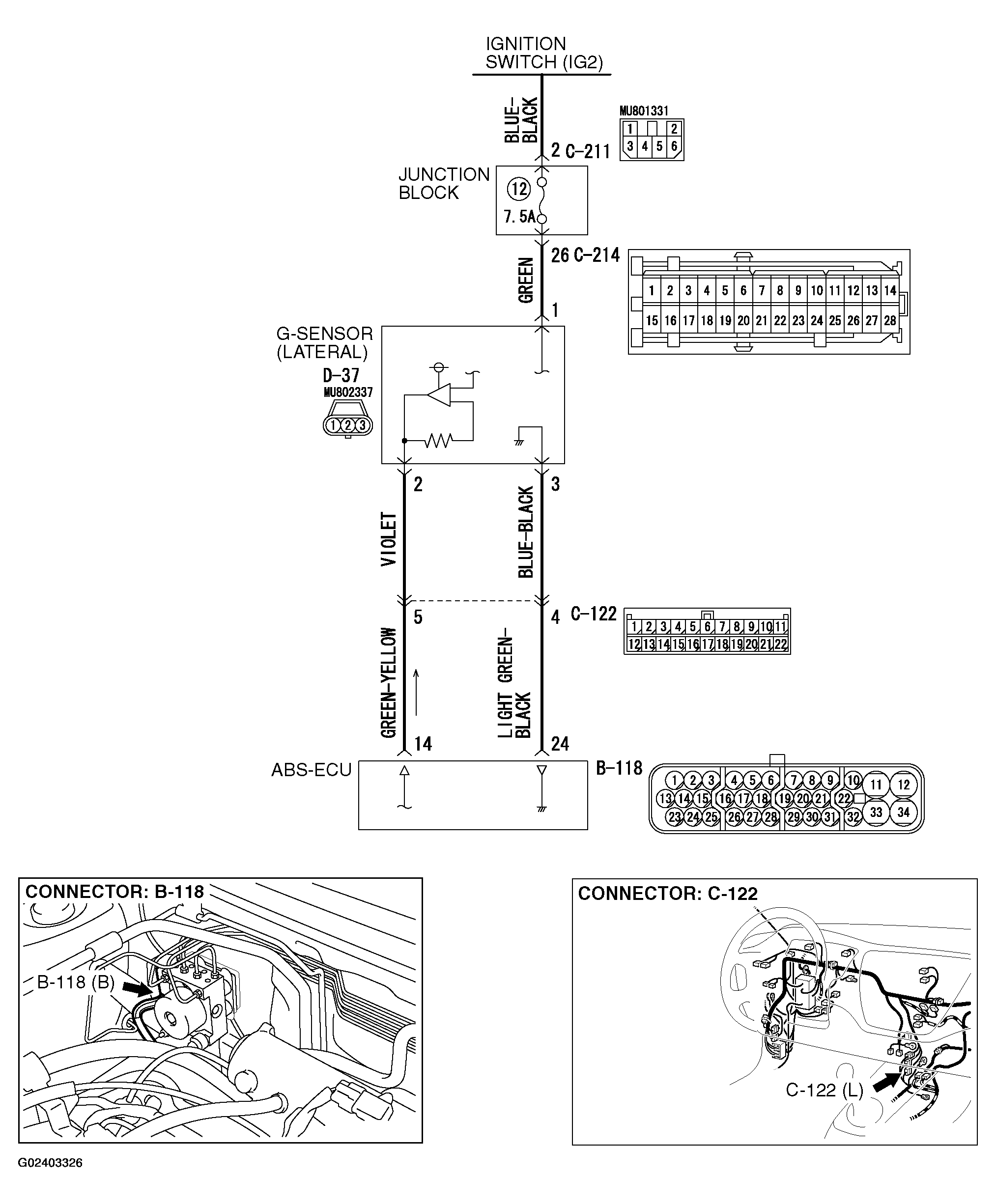

Fig 1: Lateral G-Sensor Circuit
G02403326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

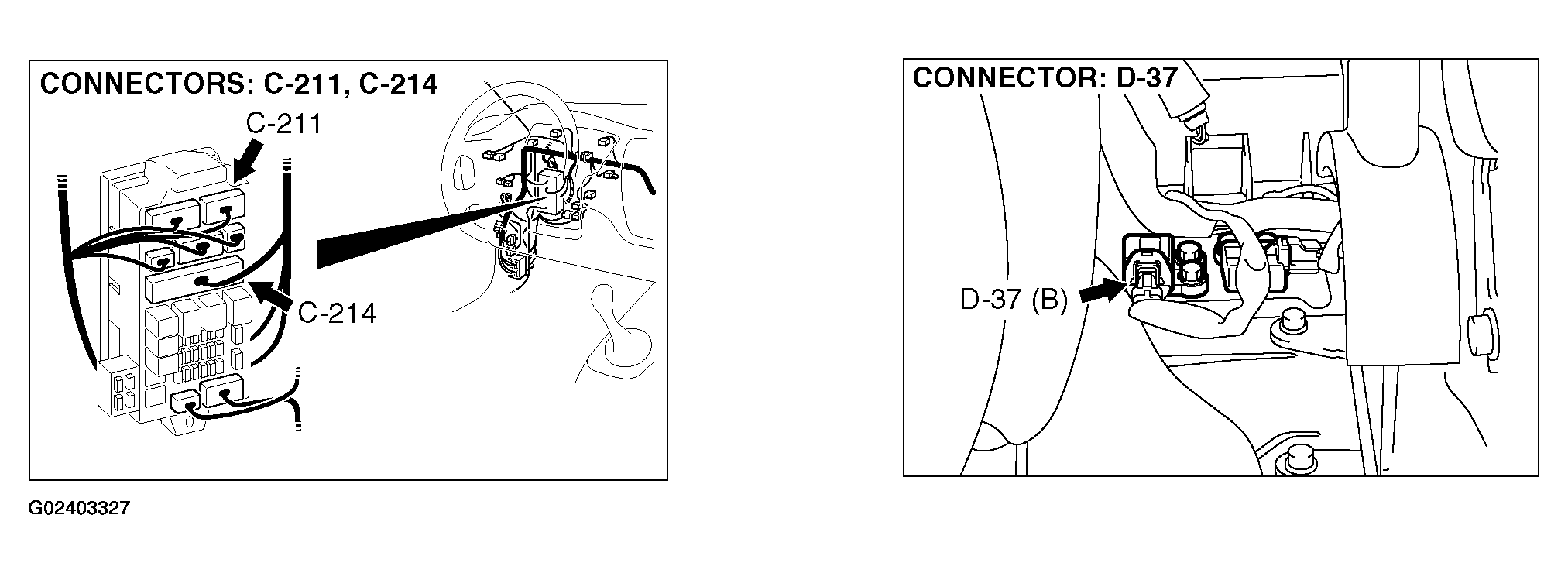

Fig 2: Identifying Connector Terminal Location
G02403327Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
