How To Diagnose: Inspection

WARNING: This page is about a different variant/trim than selected.

Sight and sound checks
Check relay operation, blower motor rotation, light illumination, etc. Listen for a "click" when some relay covers are pushed down.

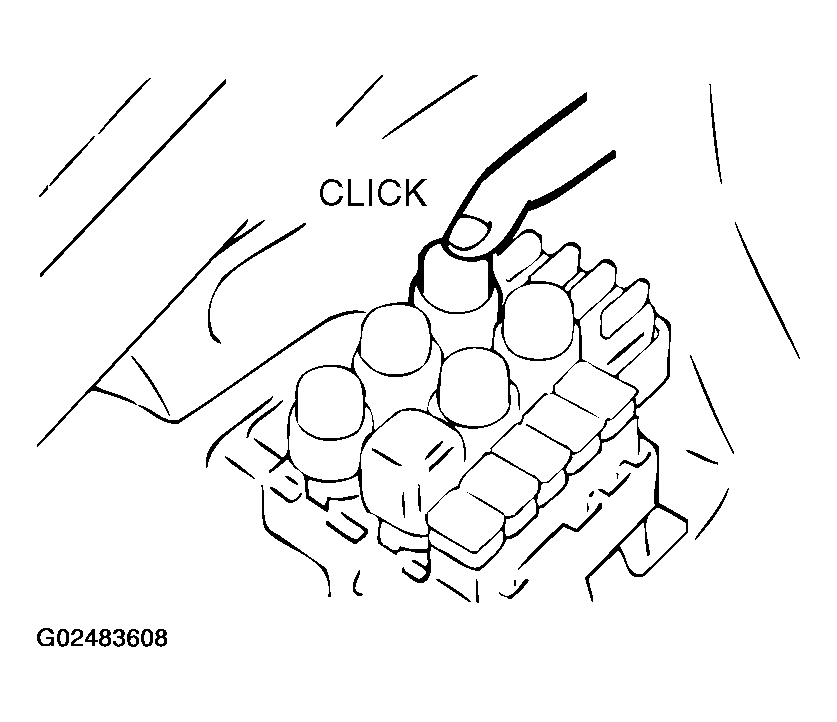

Fig 1: Checking Sight And Sound
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Simple checks
For example, if a headlight does not come on and a faulty fuse or poor grounding is suspected, replace the fuse with a new one. Or use a jumper wire to ground the light to the body. Determine which part(s) is/are responsible for the problem.

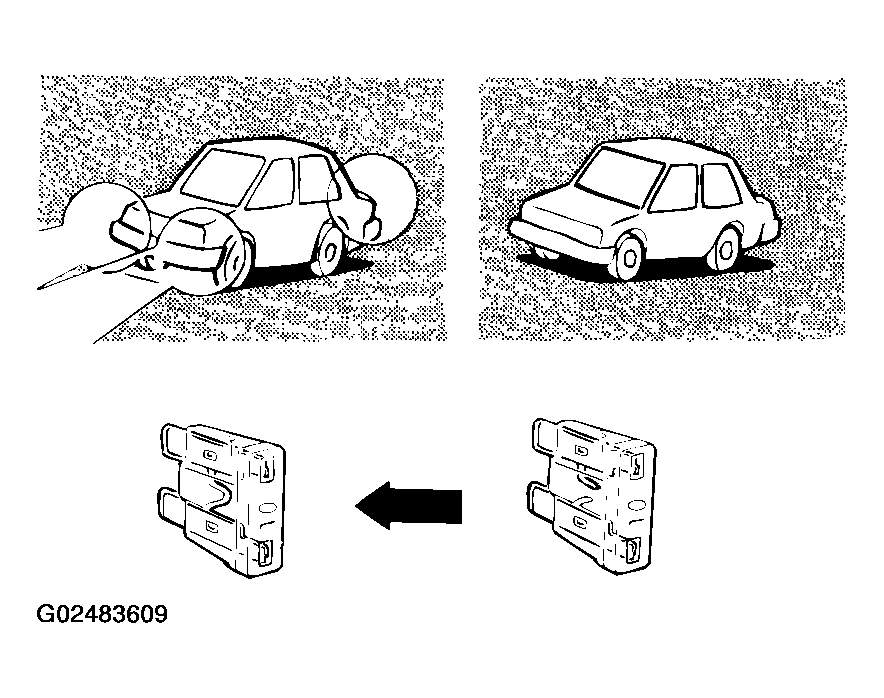

Fig 2: Identifying Simple Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Checking with instruments
Use an appropriate instrument in an adequate range and read the indication correctly.

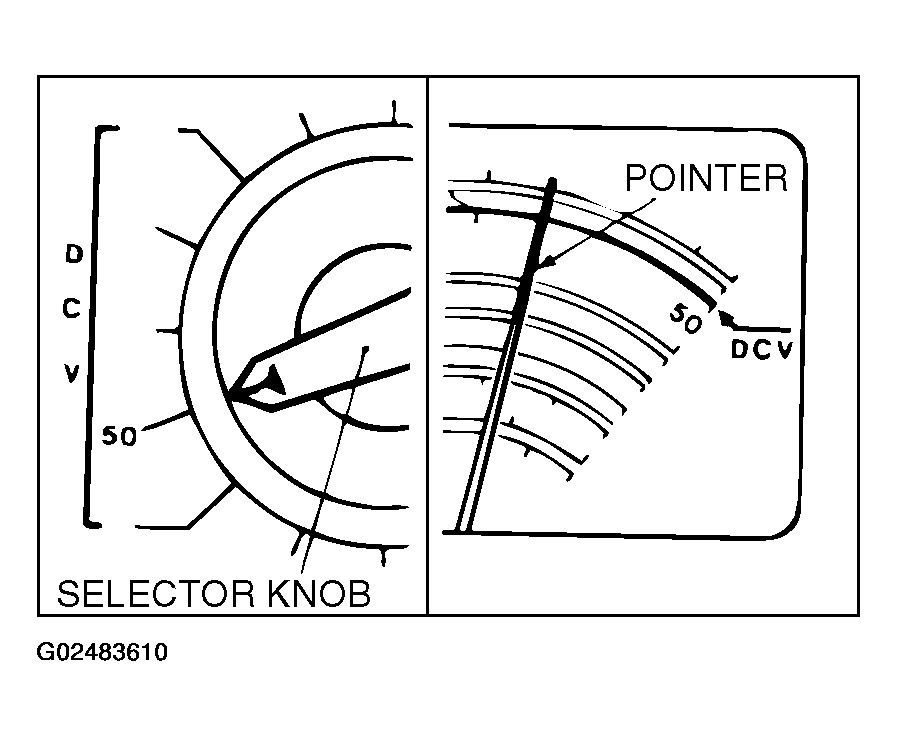

Fig 3: Checking With Instrument
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
