Removal And Installation

WARNING: This page is about a different variant/trim than selected.

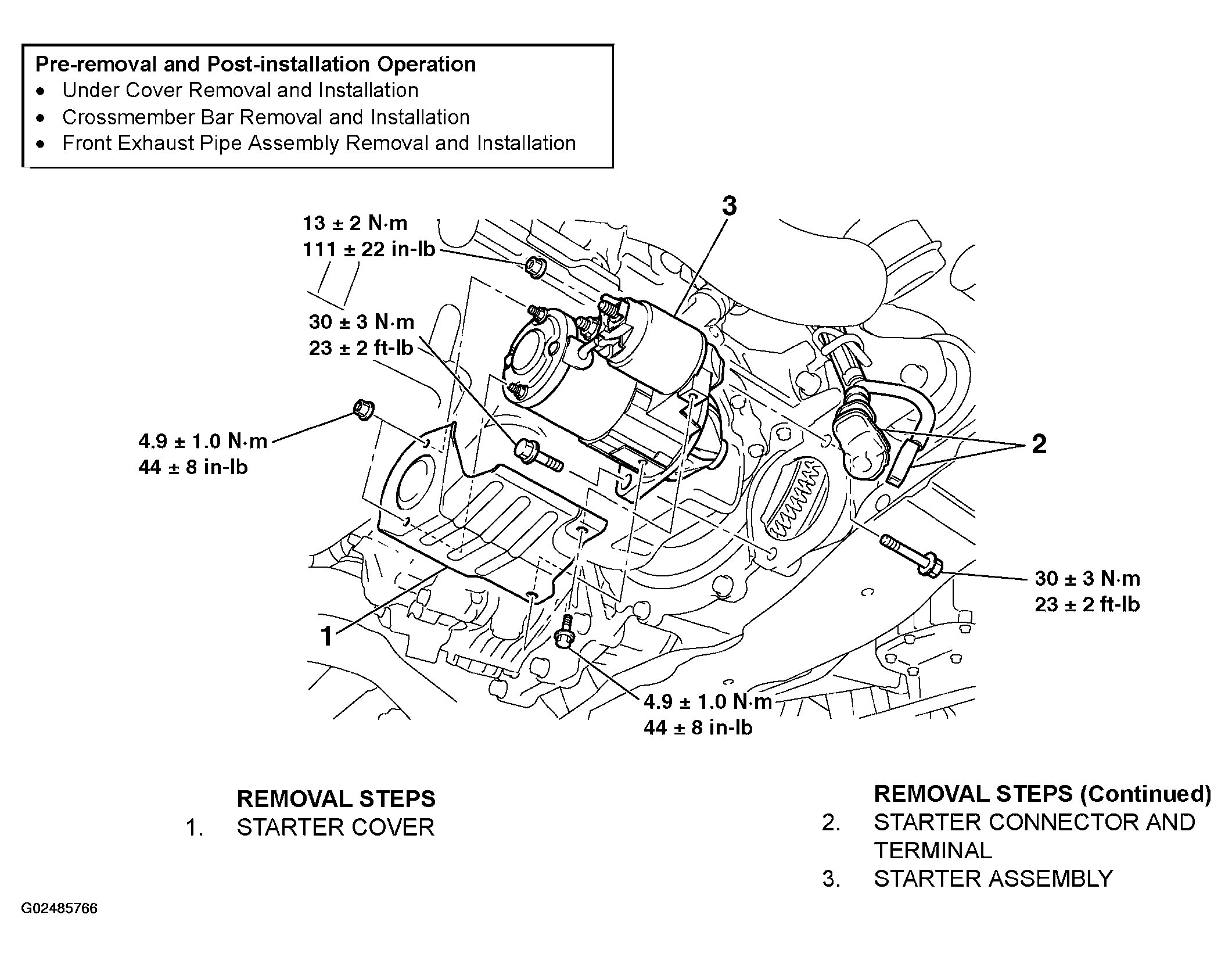

Fig 1: Removing/Installing Starter Motor Component Assembly
G02485766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
