Removal And Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Parts marked by * are made of recycled-paper mixed plastic material, so observe the following precautions.
  1. Avoid any shock or load to these parts when removing and installing them.
  2. Engage the case hinges securely when assembling these parts.
NOTE: Parts marked by * are made of recycled-paper mixed plastic material. Dispose of according to state and local laws

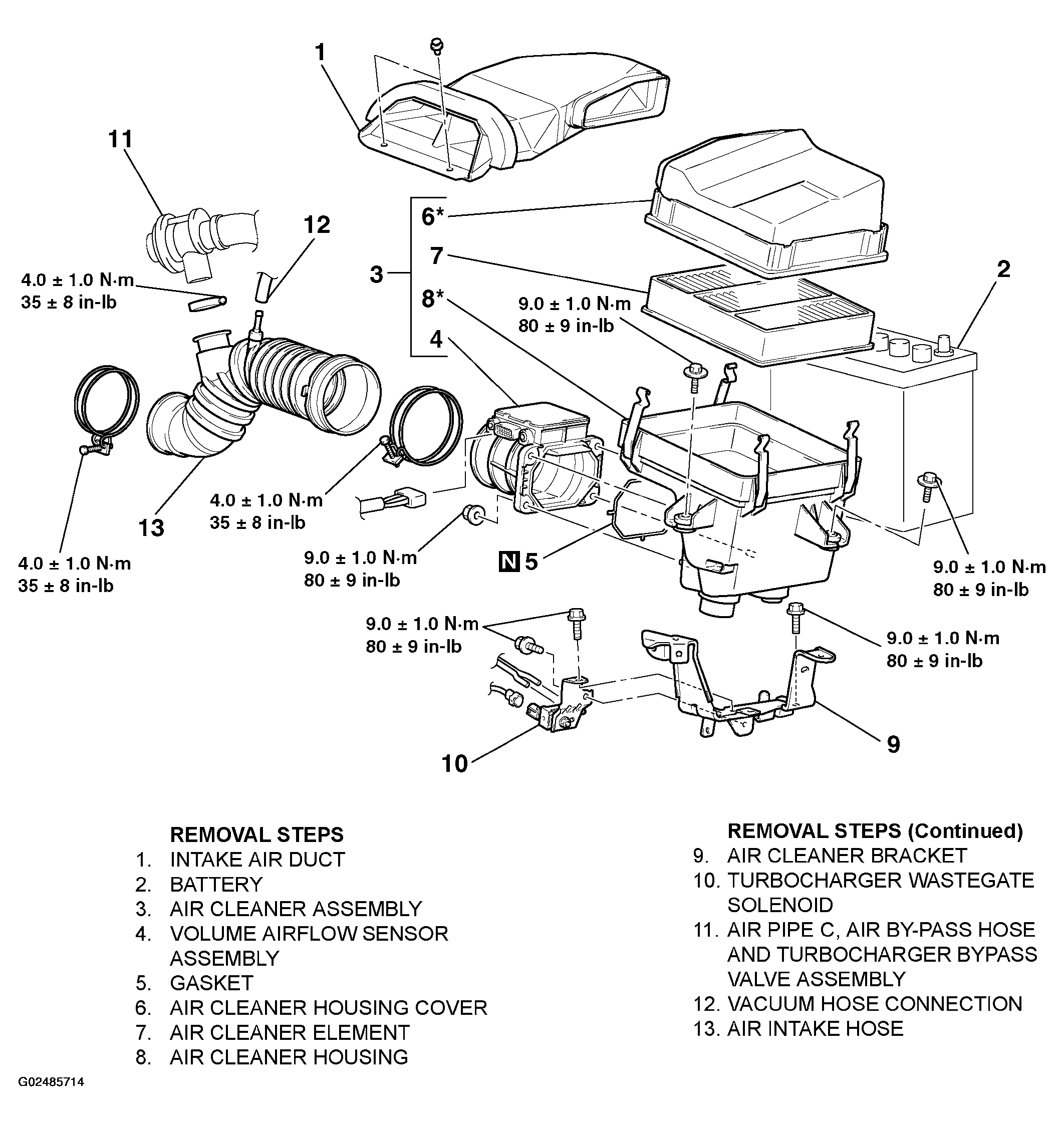

Fig 1: Removing And Installing Air Cleaner Assembly
G02485714Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
