Removal And Installation < 2.4L Engine >

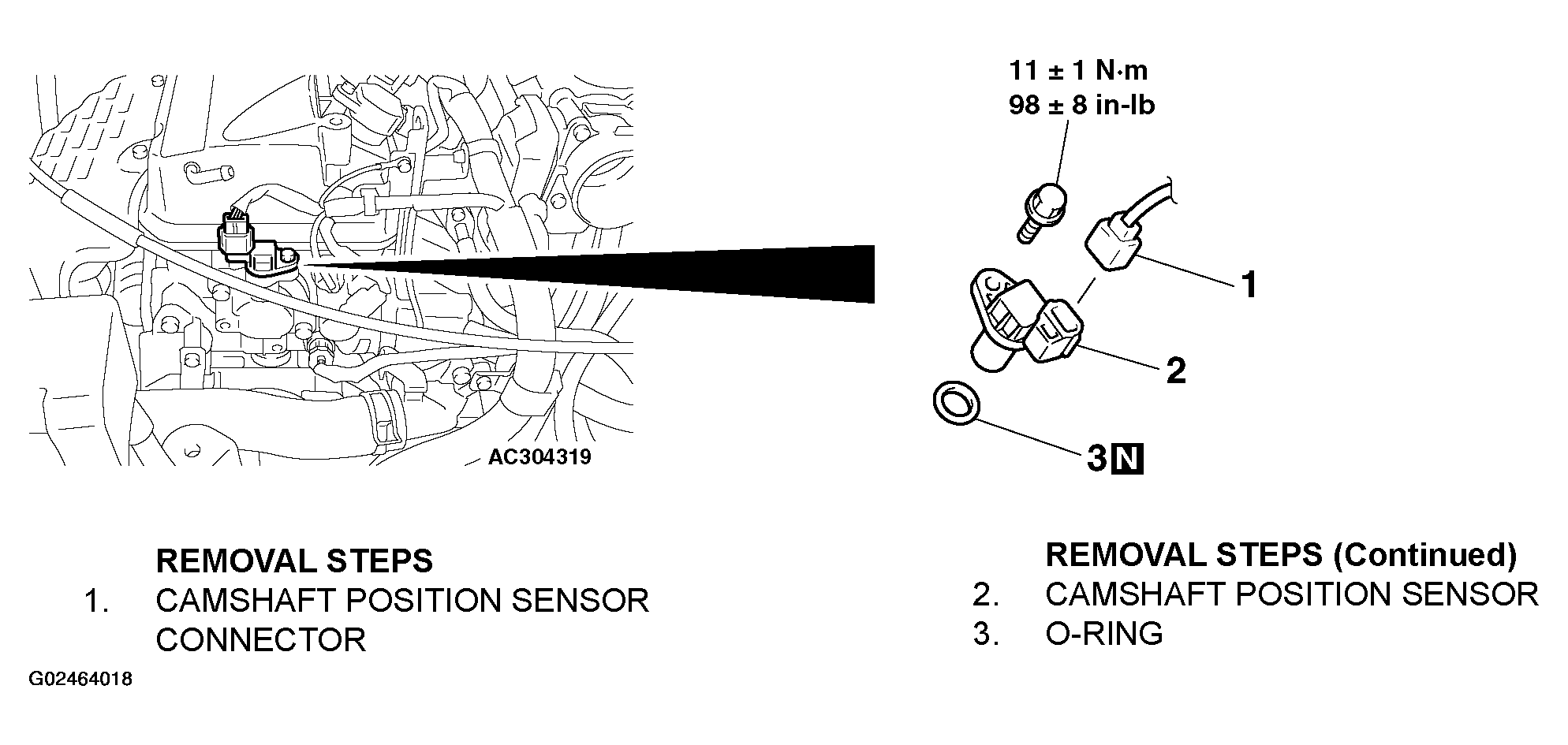

Fig 1: Removal Steps Of Camshaft Position Sensor - 2.4L Engine

G02464018

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
