< 2.0L Engine >

  1. Disconnect the vacuum hose (white stripe) from the vacuum control valve and connect the hand vacuum pump to the vacuum control valve.
  2. Plug the end of the removed vacuum hose.
  3. Start the engine and run at idle.
  4. As described in the chart below, check the vacuum condition.
    VACUUM CONDITION REFERENCE

    ENGINE CONDITION NORMAL VACUUM CONDITION
    Idling Approximately 21.3 - 24.0 kPa (6.3 - 7.1 in Hg)

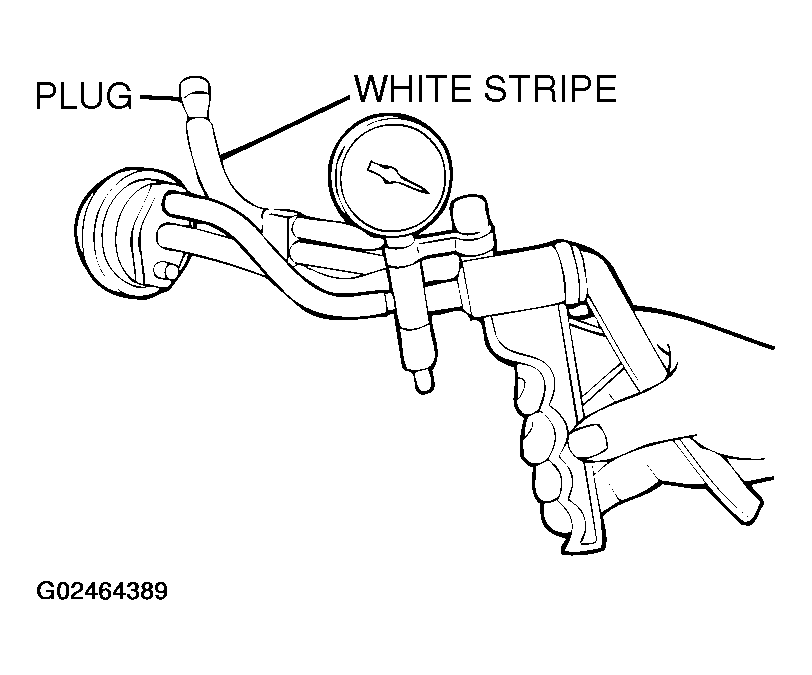

    Fig 1: Connecting Hand Vacuum Pump To Vacuum Control Valve
    G02464389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
