Removal And Installation < 2.4L Engine >: Notes

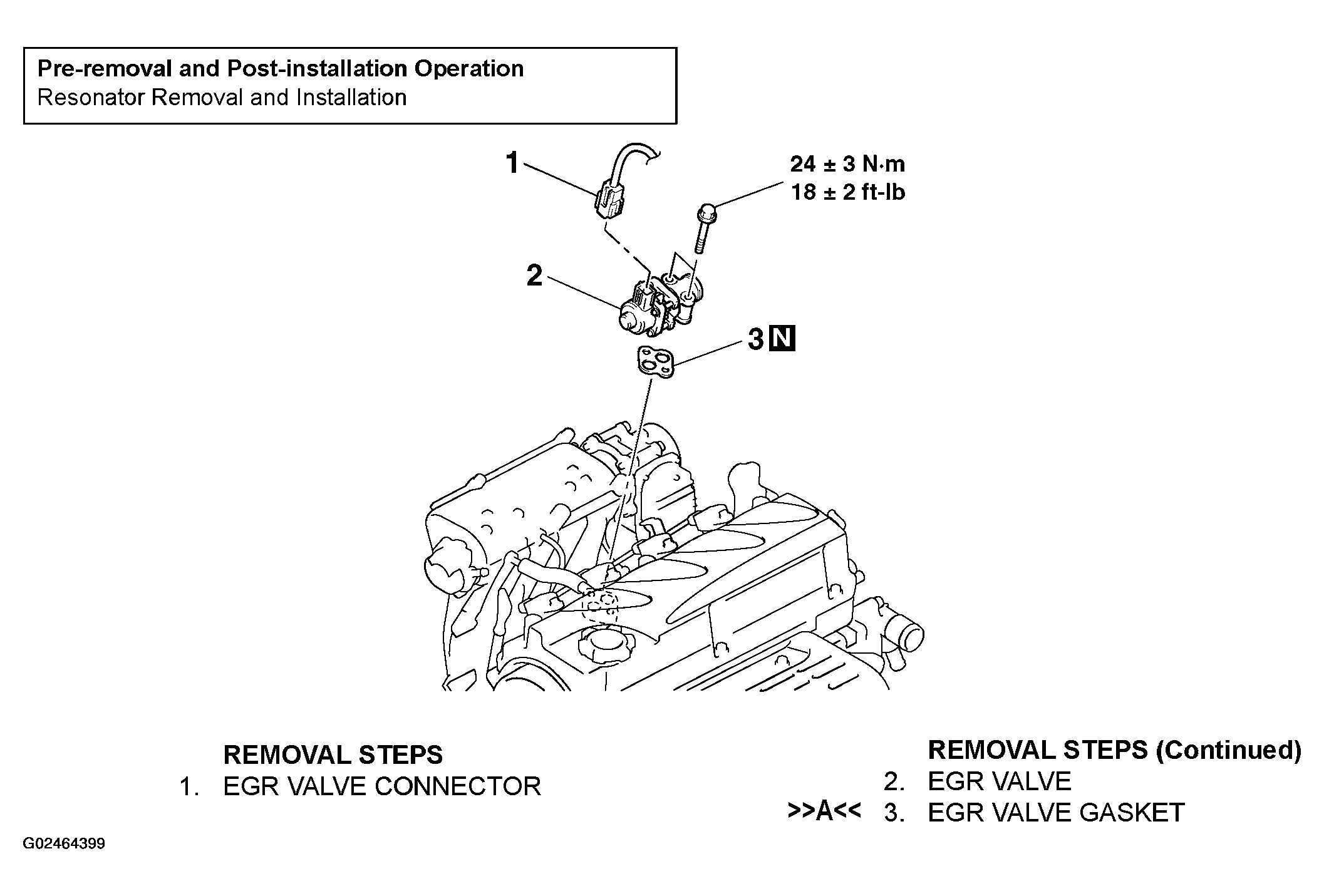

Fig 1: Removing Emission Vacuum Hose Connection, EGR Valve And Gasket - 2.4L Engine
G02464399Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
