Removal And Installation < 2.0L Engine >

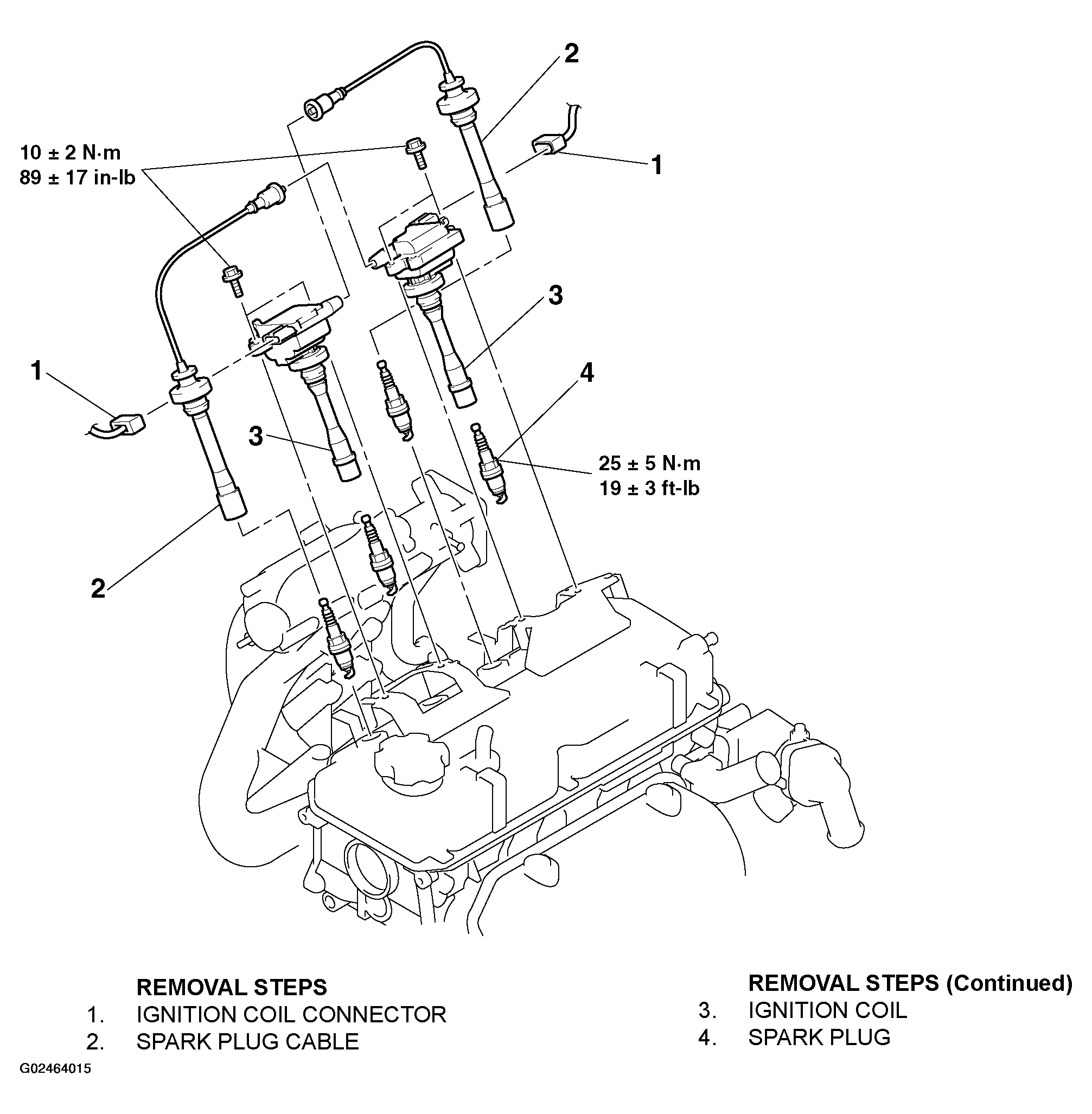

Fig 1: Removal Steps Of Ignition Coil - 2.0L Engine

G02464015

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
