Engine Oil Pressure Check

Required Special Tool:

MD998054: Engine Oil Pressure Switch Wrench

1. Check engine oil quantity.
   CAUTION: Since sealant is applied to the thread of the engine oil pressure switch, take care not to damage the engine oil pressure switch when removing it.
2. Use special tool MD998054 to remove the engine oil pressure switch.
   NOTE: Remove the terminal of oil pressure switch where special tool MD998054 is not fitted.
3. Install the engine oil pressure gauge.
   NOTE: Use a 1/8 pipe thread adapter.

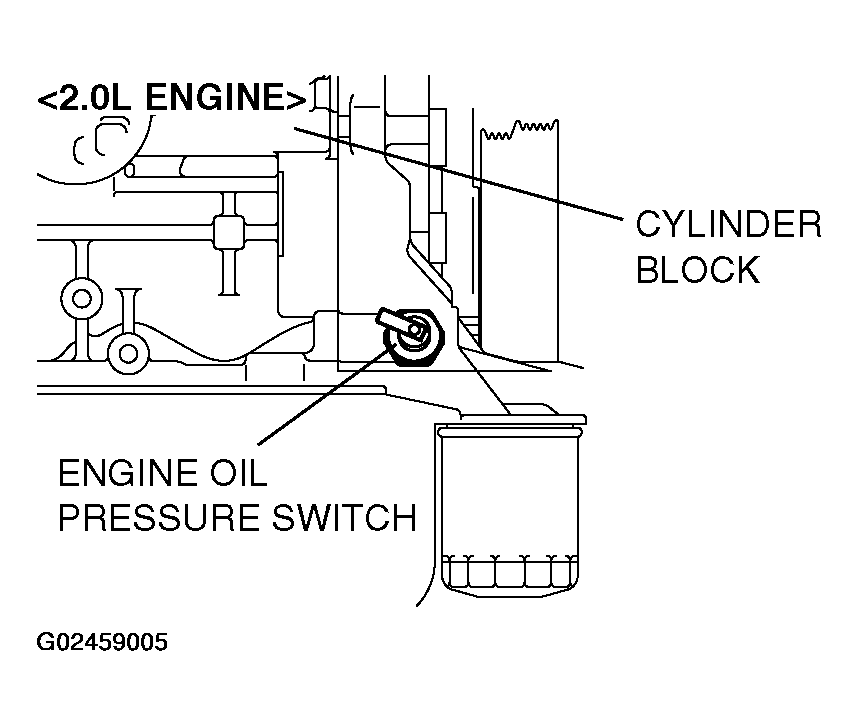

   Fig 1: Identifying Engine Oil Pressure Switch (2.0L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Run the engine to warm it.
5. After the engine has been warmed up, check that engine oil pressure is within the standard value.

   Standard value:

   At idle: 29 kPa (4.2 psi) or more At 3,500 r/min: 294 - 686 kPa (43 - 100 psi)

6. Remove the engine oil pressure gauge.

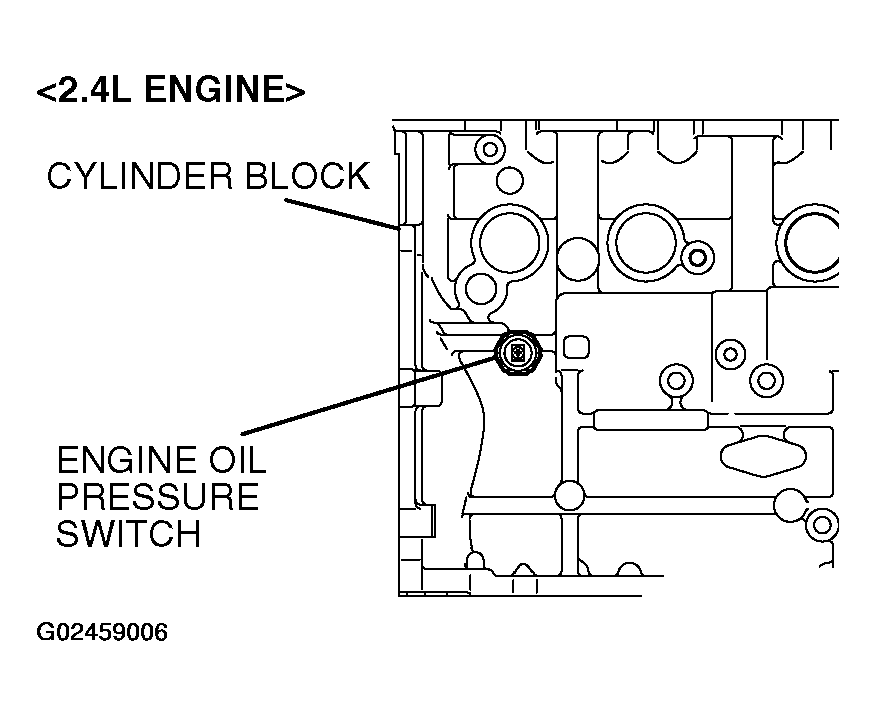

   Fig 2: Identifying Engine Oil Pressure Switch (2.4L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

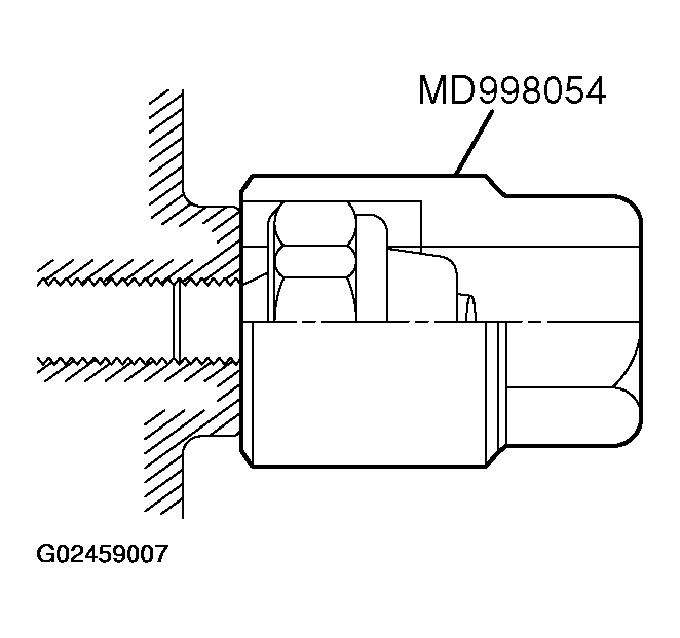

   Fig 3: Using Special Tool For Removing Engine Oil Pressure Switch

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Apply the specified sealant 3M™ AAD Part number 8672 or equivalent to the threads of the engine oil pressure switch.

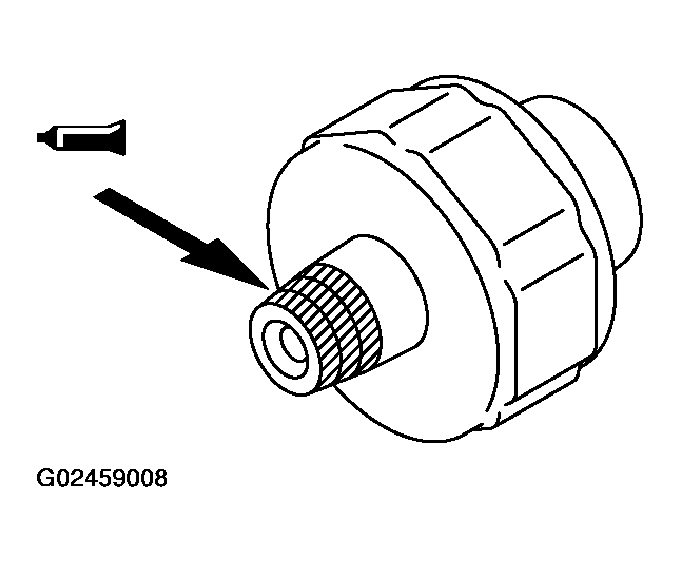

   Fig 4: Applying Sealant On Threads Of Engine Oil Pressure Switch

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CAUTION: Do not start the engine within one hour after the engine engine oil pressure switch has been installed.
8. Use special tool MD998054 to tighten the engine oil pressure switch to the specified torque.

   Tightening torque:

   < 2.0L ENGINE > 10 +/- 2 N.m (87 +/- 17 in-lb)

   < 2.4L ENGINE > 19 +/- 3 N.m (14 +/- 2 ft-lb)

   Fig 5: Using Special Tool To Tighten Engine Oil Pressure Switch

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
