Removal And Installation < 2.4L Engine >: Notes

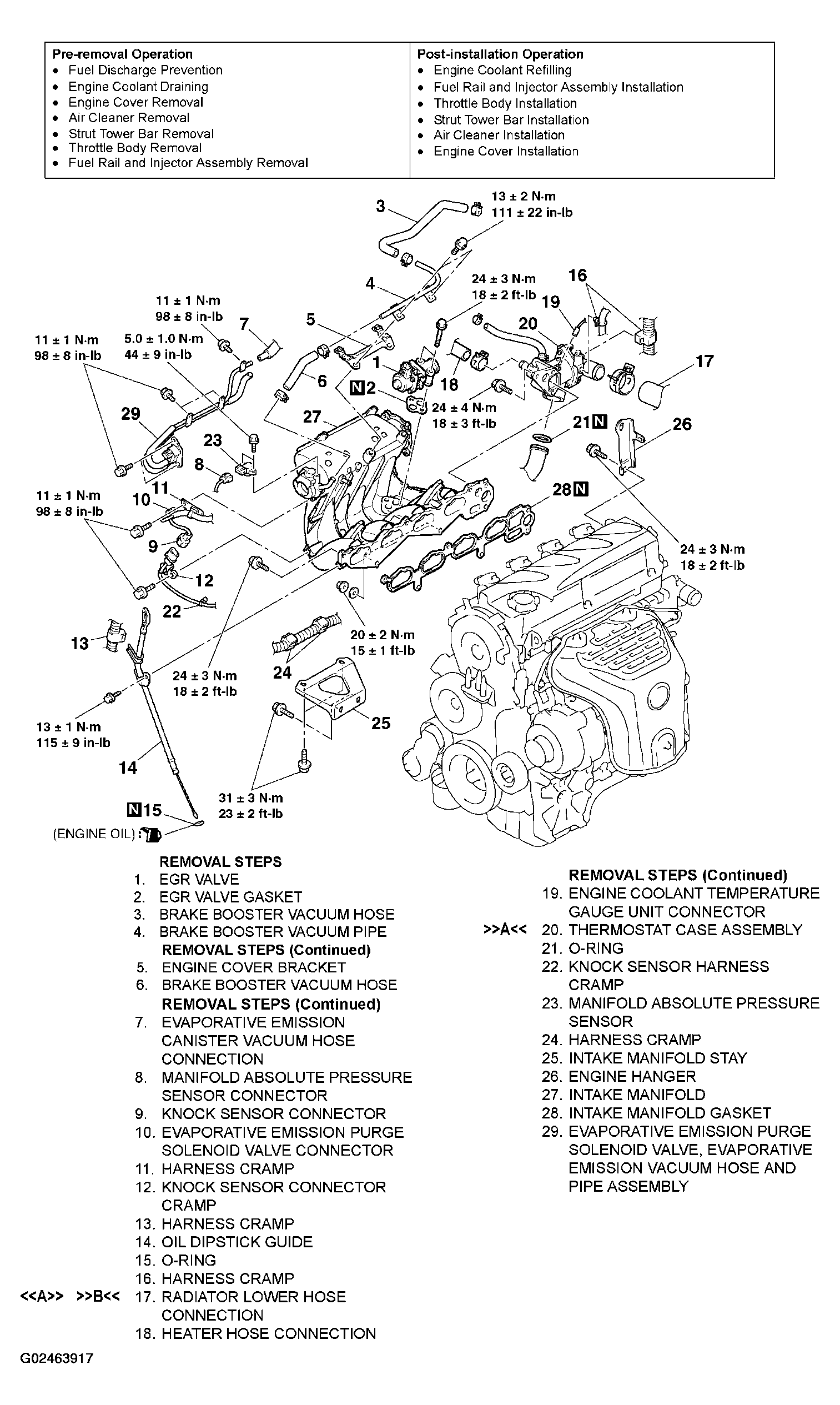

Fig 1: Exploded View Of Intake Manifold (2.4L Engine)

G02463917

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
