Overrunning Clutch

  1. Make sure that the pinion cannot be turned counterclockwise, and can be turned clockwise freely.
  2. Check the pinion for abnormal wear and damage.

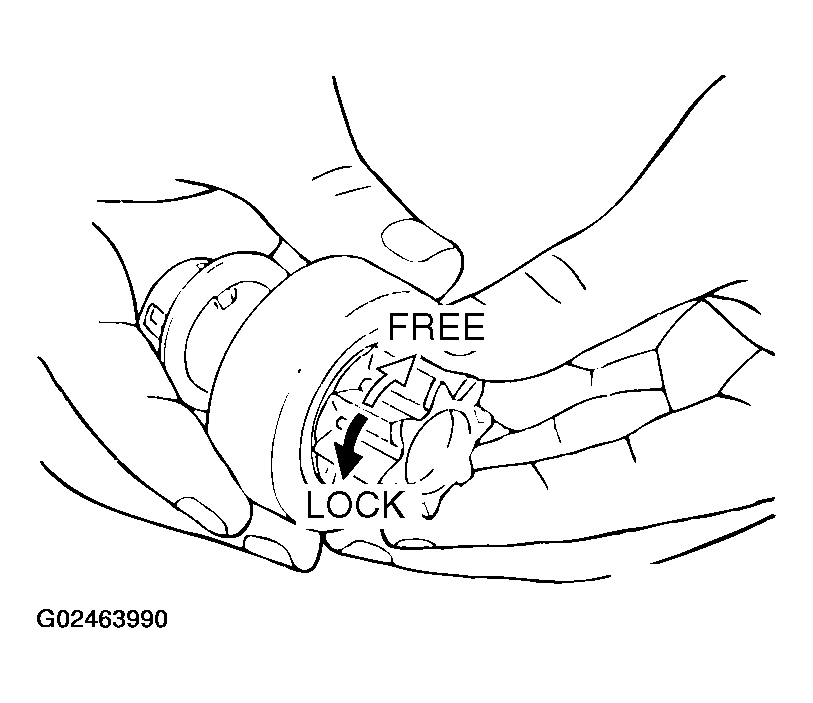

    Fig 1: Checking That Pinion Cannot Be Turned Counterclockwise, And Can Be Turned Clockwise Freely
    G02463990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
