Passenger Compartment

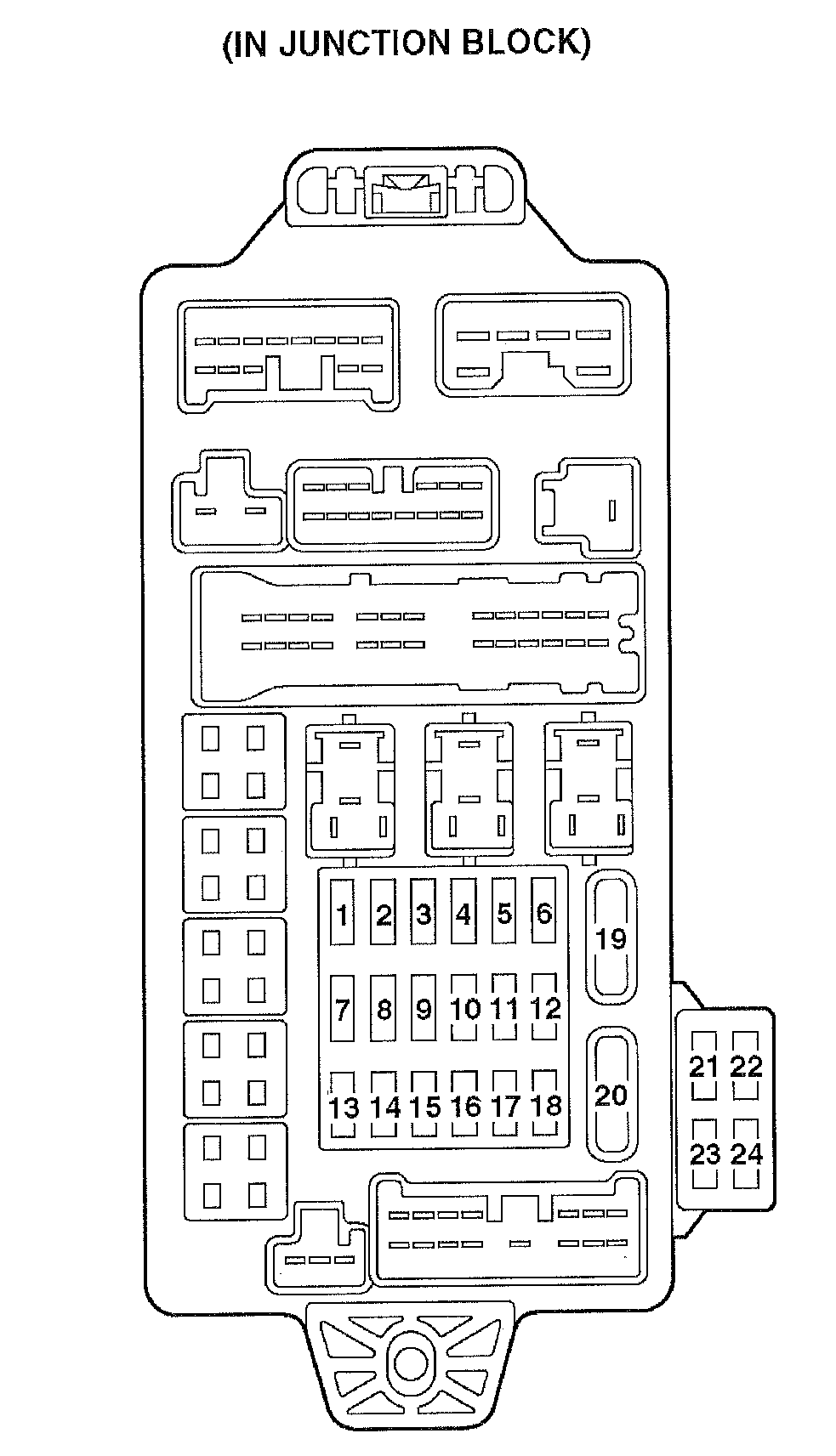

For fuse location and values, refer to illustrations below.
IDENTIFYING FUSES (PASSENGER COMPARTMENT)
| NO. | POWER SUPPLY CIRCUIT | FUSE TYPE | RATED CAPACITY (A) | HOUSING COLOR | LOAD CIRCUIT |
| 1 | Ignition switch (IG1) | Fuse | 10 | Red | Ignition coil (1), (2), (3) and ignition coil (4) |
| 2 | Ignition switch (IG1) | Fuse | 7.5 | Brown | Column switch, combination meter, ETACS-ECU, SRS-ECU, and vehicle speed sensor |
| 3 | Ignition switch (IG1) | Fuse | 7.5 | Brown | A/T control relay, input shaft speed sensor, output shaft speed sensor, vehicle speed sensor, backup light switch, SRS-ECU and transmission range switch |
| 4 | Ignition switch (IG1) | Fuse | 7.5 | Brown | Auto-cruise control-ECU |
| 5 | Ignition switch (IG2) | Fuse | 7.5 | Brown | A/C-ECU, blower relay, rear window defogger relay, front-ECU, heater control unit, combination meter, A/C compressor clutch relay, ETACS-ECU, column switch and outside/inside air selection damper control motor |
| 6 | Rear window defogger relay | Fuse | 7.5 | Brown | Remote controlled mirror (Mirror heater) |
| 7 | Ignition switch (ACC) | Fuse | 20 | Yellow | Front-ECU and windshield wiper motor |
| 8 | Ignition switch (IG1) | Fuse | 7.5 | Brown | Fuel pump relay (1), fuel pump relay (2), engine control module and powertrain control module |
| 9 | Ignition switch (ACC) | Fuse | 15 | Blue | Cigarette lighter |
| 10 | Ignition switch (ACC) | Fuse | - | - | - |
| 11 | Ignition switch (ACC) | Fuse | 7.5 | Brown | Remote controlled mirror switch |
| 12 | Ignition switch (IG2) | Fuse | 7.5 | Brown | ABS-ECU and sunroof motor assembly |
| 13 | Ignition switch (ACC) | Fuse | - | - | - |
| 14 | Ignition switch (ACC) | Fuse | 15 | Blue | ETACS-ECU |
| 15 | Fusible link No.1 | Fuse | 15 | Blue | Data link connector |
| 16 | Fusible link No.1 | Fuse | - | - | - |
| 17 | Fusible link No.1 | Fuse | - | - | - |
| 18 | Fusible link No.1 | Fuse | - | - | - |
| 19 | Fusible link No.1 | Fuse | 30 | Green | Blower motor and blower relay |
| 20 | Fusible link No.1 | Fuse | 30 | Green | Rear window defogger |
| 21 | Fusible link No.1 | Fuse | 20 | Yellow | Sunroof motor assembly |
| 22 | - | Fuse | - | - | - |
| 23 | - | Fuse | - | - | - |
| 24 | - | Fuse | - | - | - |
Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
The table above shows the main equipment corresponding to each fuse.
The fuse box does not contain spare 7.5A 10A and 15A fuses. If a fuse of one of these capacities blows, replace it temporarily by borrowing a fuse of correct rating from:
- 7.5A: Door mirror heater
- 10A: Dome light (Engine Compartment)
- 15A: Cigarette lighter (Power outlet)
Replace the borrowed fuse as soon as possible.
