Component Location

For fuse box locations, refer to illustrations below.

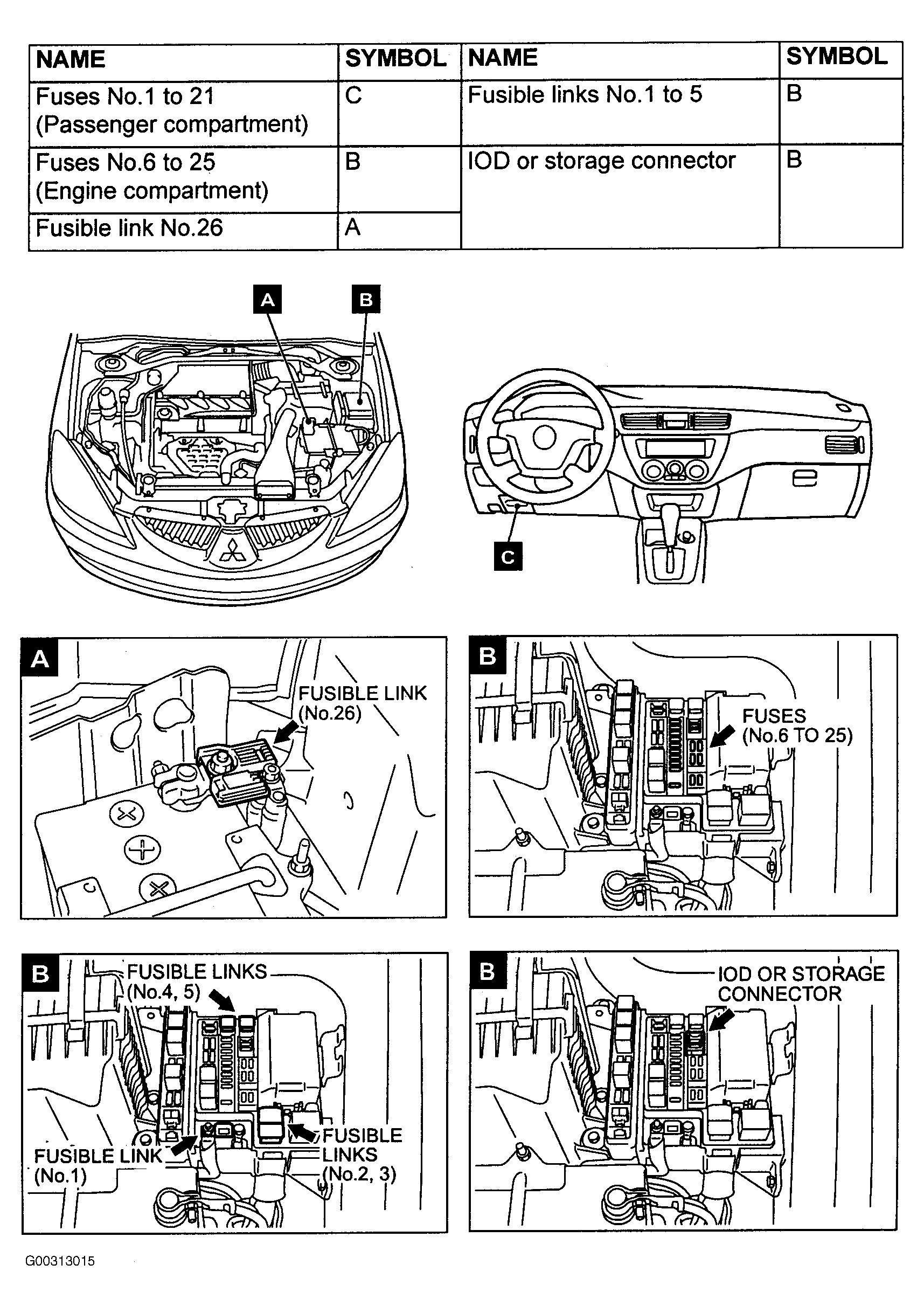

Fig 1: Locating Fuses & Fusible Links
G00313015Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

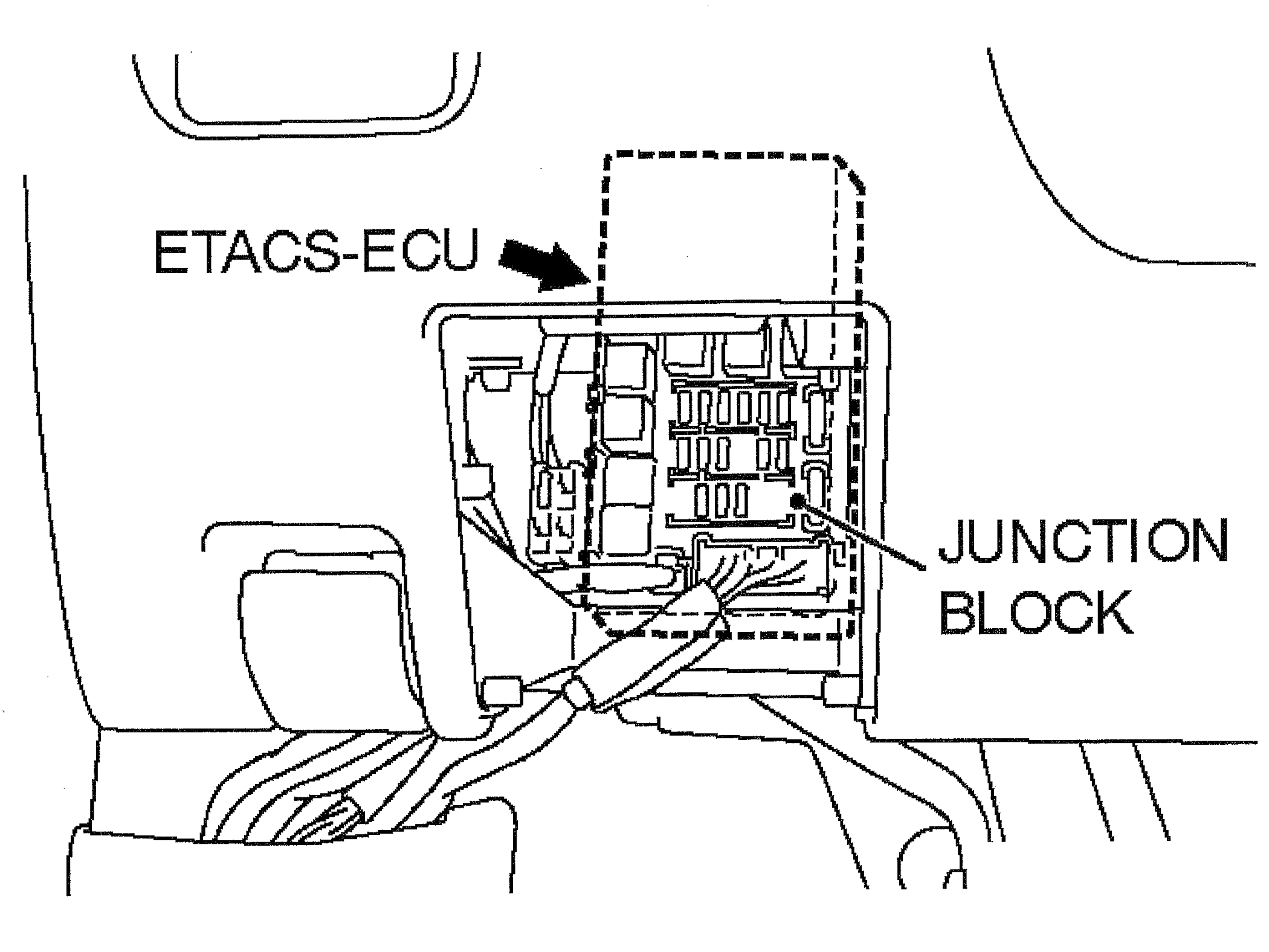

Fig 2: Locating Fuse Junction Box & ETACS - ECU
G00490441Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
