Key Reminder Switch And Ignition Key Ring Antenna Continuity Check

Ignition key reminder switch continuity check.

Disconnect key reminder switch connector C-207 without removing the ignition switch and steering lock cylinder. Then check the continuity.

KEY REMINDER SWITCH AND IGNITION KEY RING ANTENNA CONTINUITY CHECK

STATUS OF IGNITION KEY	TESTER CONNECTION	SPECIFIED CONNECTION
Removed	4-6	Less than 2 ohms
Inserted	4-6	Open circuit

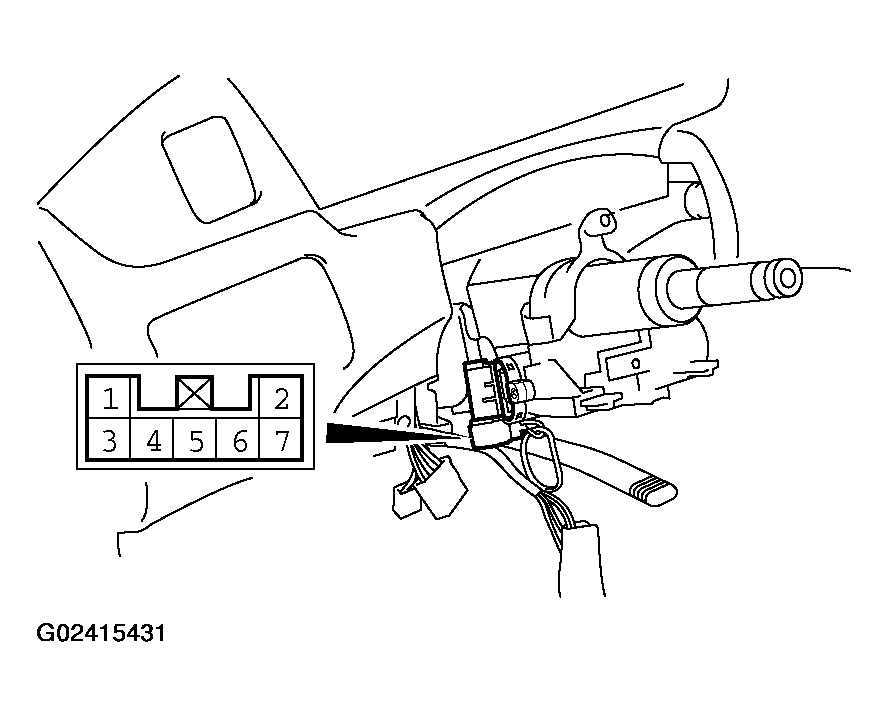

Fig 1: Disconnecting Key Reminder Switch Connector C-207

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Ignition key ring antenna check.
Check for continuity between terminal 3 and terminal 7.
1. Standard value: 2 ohm or less
