Home >> Mitsubishi >> 2005 >> Lancer ES, Standard >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System -- Except Evolution >> Generator Assembly >> Removal And Installation < 2.4L Engine > >> Notes

Removal And Installation < 2.4L Engine >: Notes

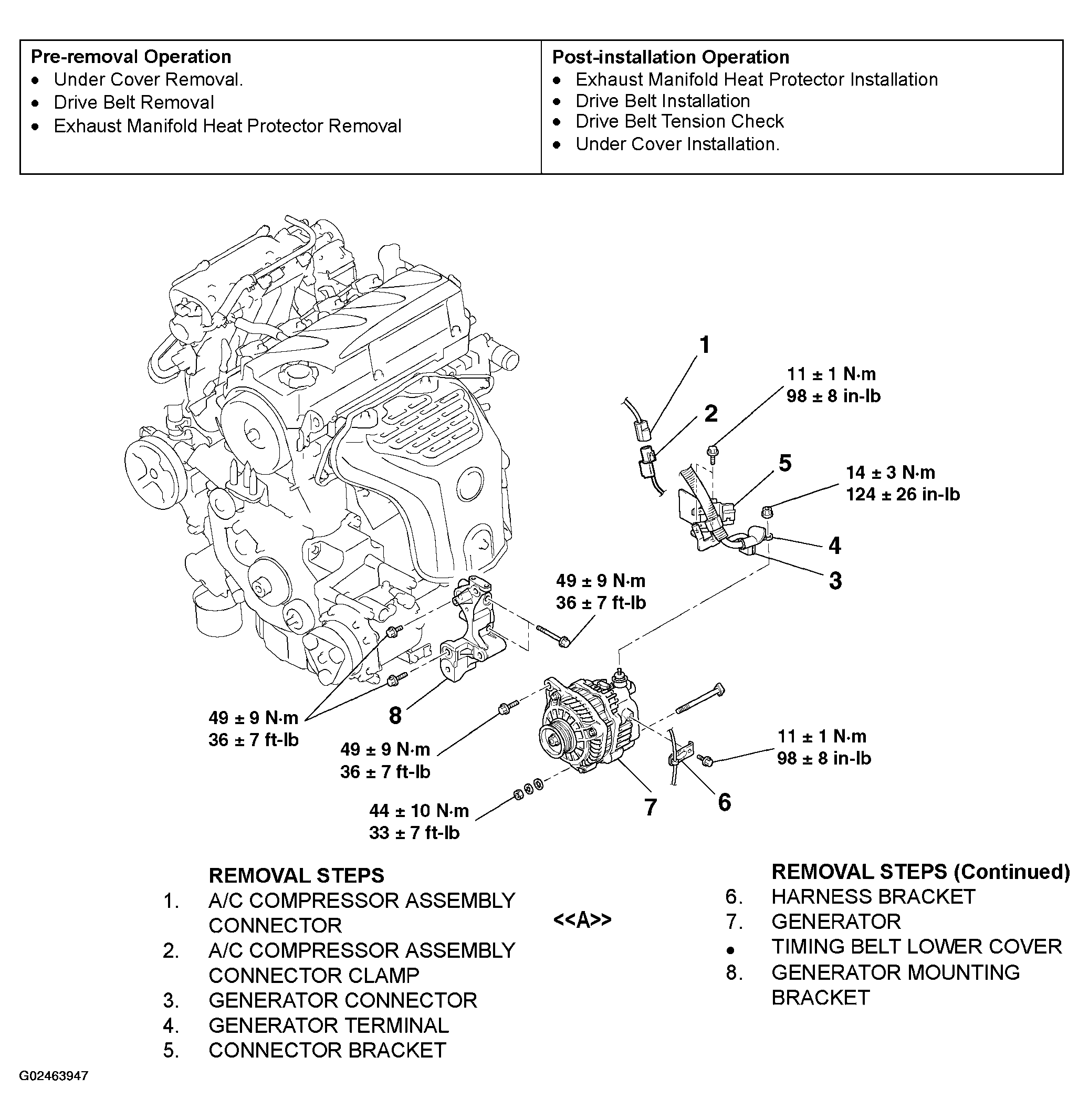

Fig 1: Removing/Installing Generator Assembly (2.4L Engine)

G02463947

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
