General Description Concerning The Fog Light: Notes

The following ECUs affect the functions and control of the fog lights and fog light indicator light.

FUNCTION AND CONTROL ECU REFERENCE

FUNCTION  CONTROL ECU
Fog light and fog light indicator light ETACS-ECU, front-ECU, column switch

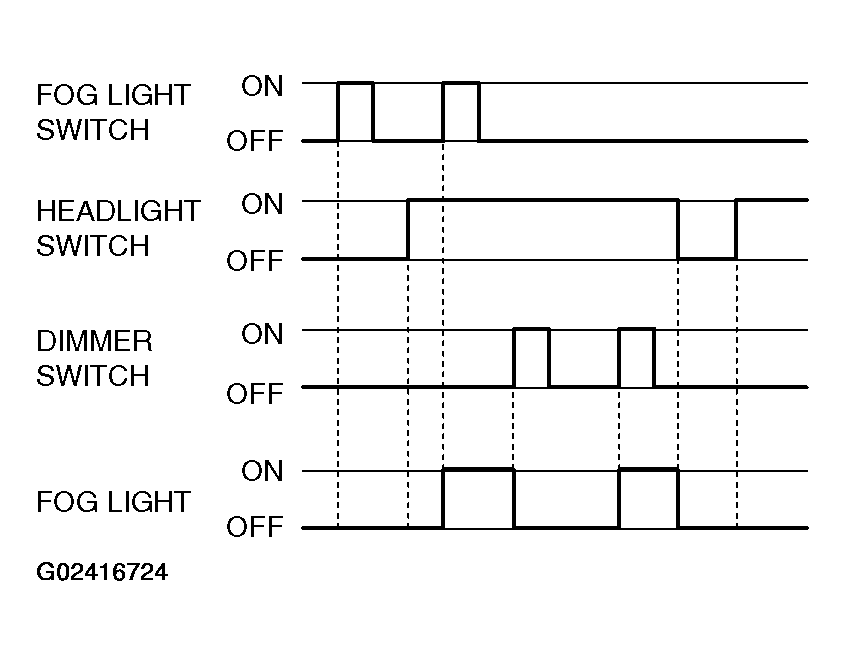

Fig 1: Identifying Blinking Pattern Of Fog Light And Fog Light Indicator Light
G02416724Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
