Lancer ES, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Simplified Wiring System (SWS) - Except Evolution
>>
SWS Diagnosis
>>
Symptom Chart
>>
< Function System >
< Function System >
NOTE:
For inspection procedures shown in the following illustrations, refer to appropriate testing in
SYMPTOM PROCEDURES
.

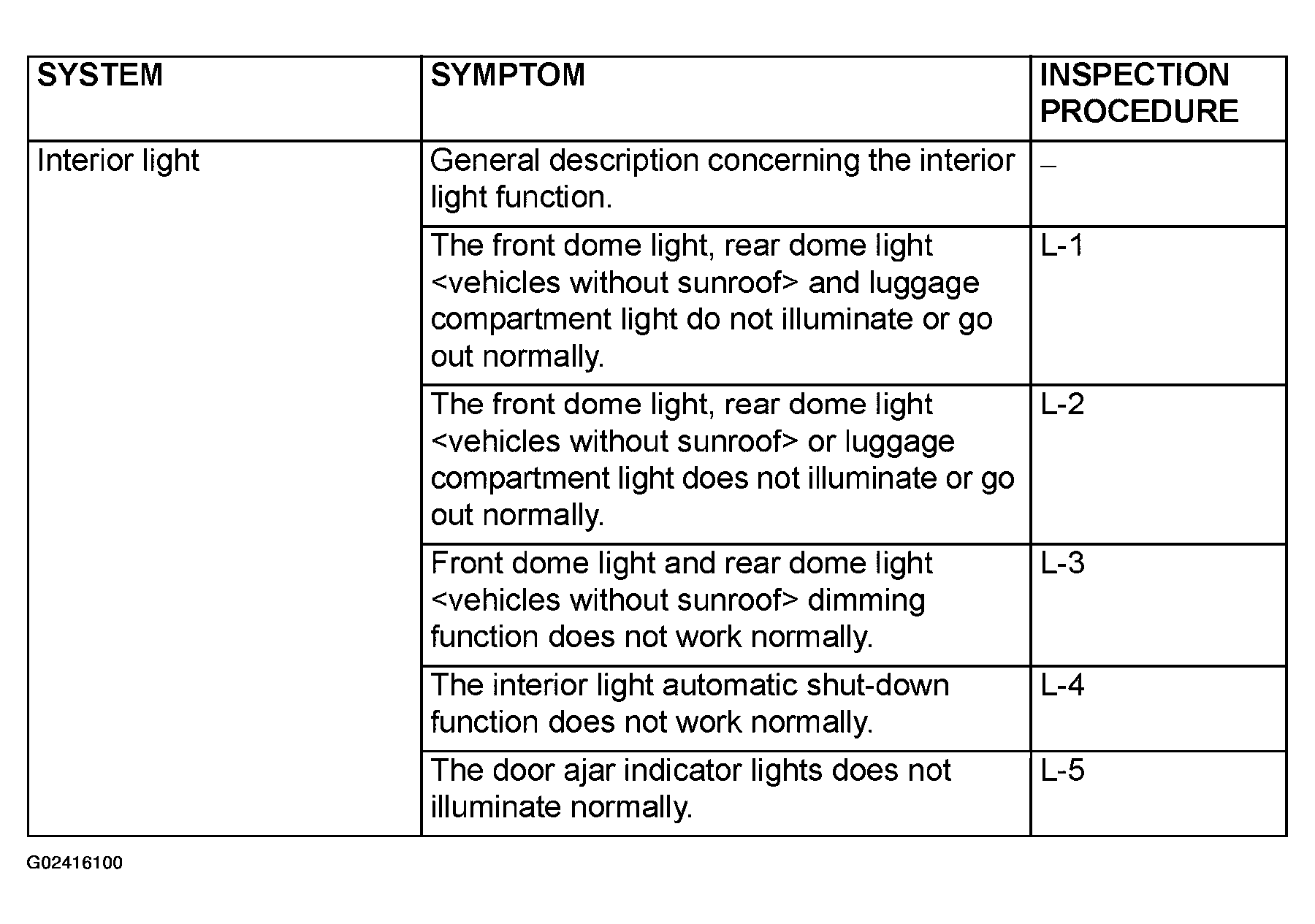

Fig 1: Problem Symptom Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

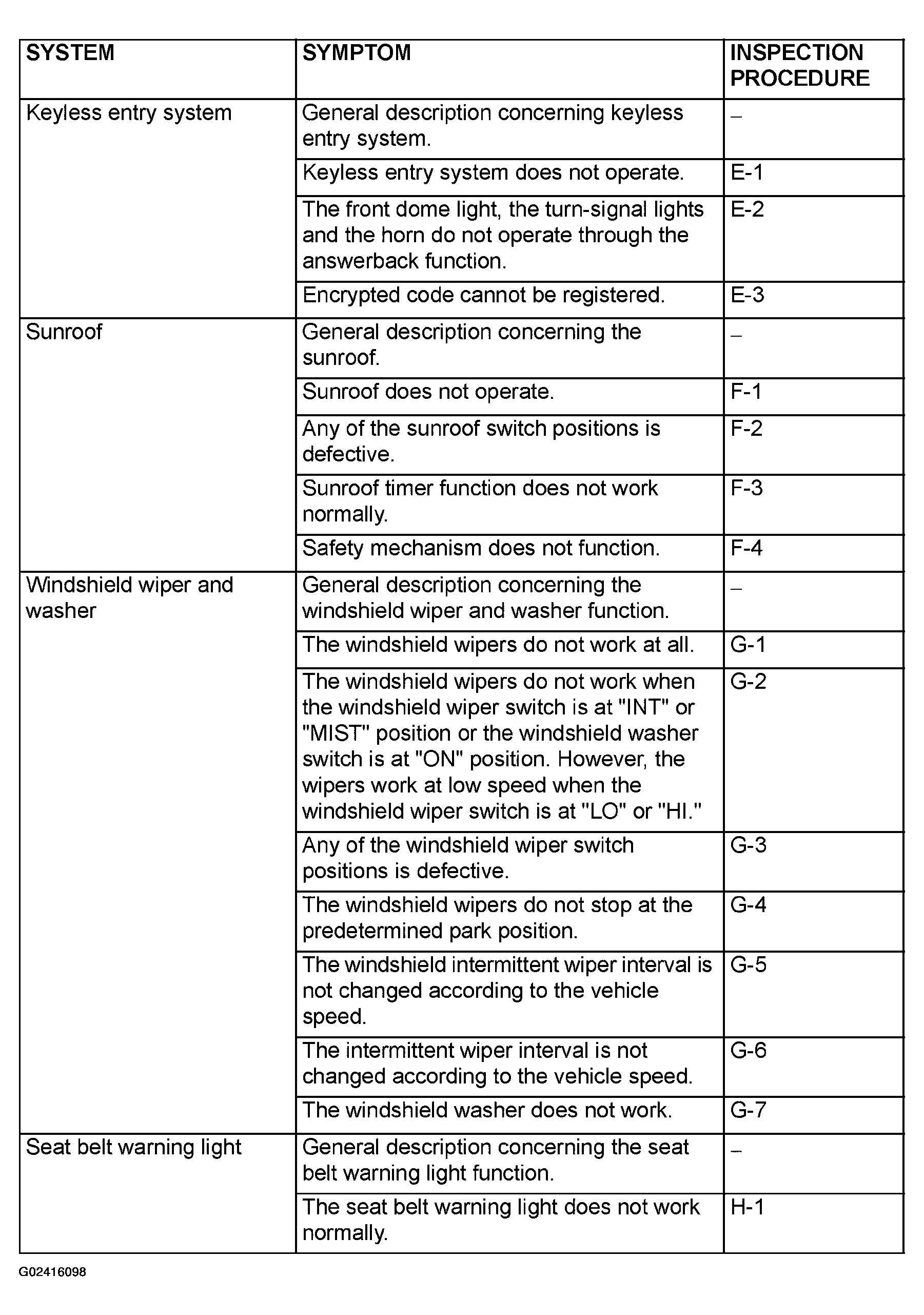

Fig 2: Problem Symptom Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

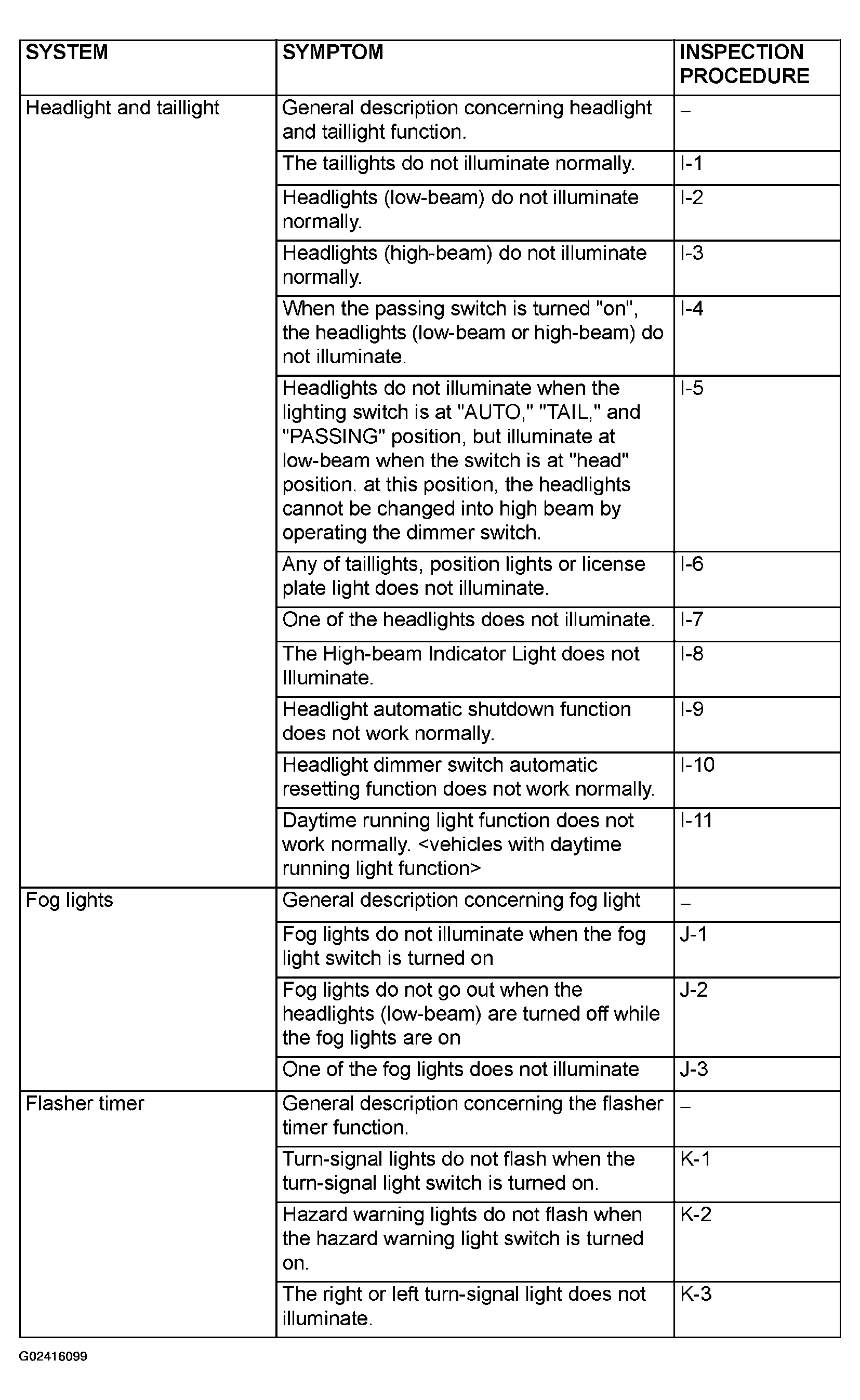

Fig 3: Problem Symptom Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

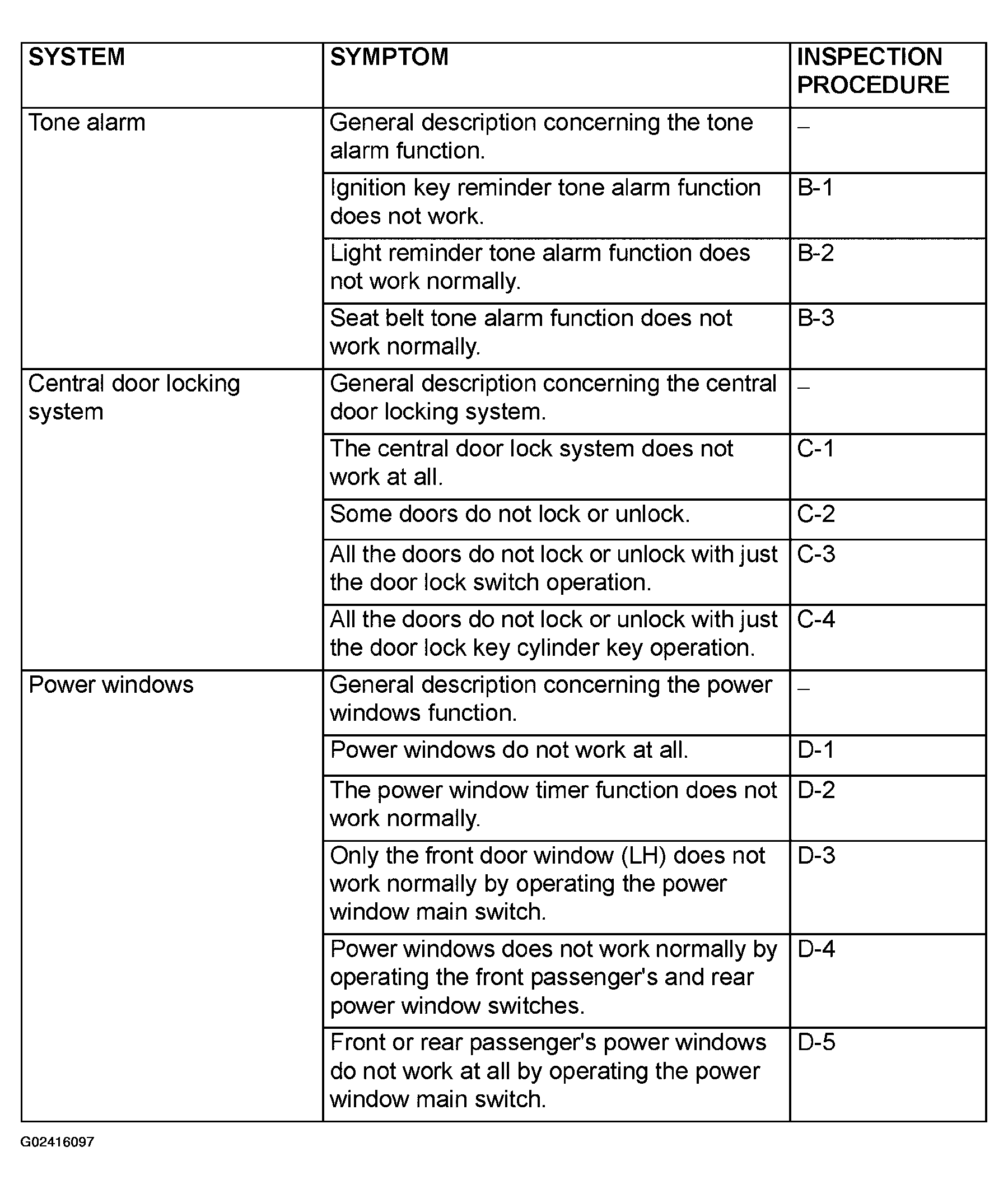

Fig 4: Problem Symptom Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
