Rear Axle -- Except Evolution: General Description

The rear axle has the following features:

• The wheel bearing is a unit ball bearing (double-row angular contact ball bearing) which incorporates the oil seals and is highly resistant to a thrust load.
• ABS rotor for detecting the wheel speeds is press-fitted to the rear hub in vehicles with ABS.

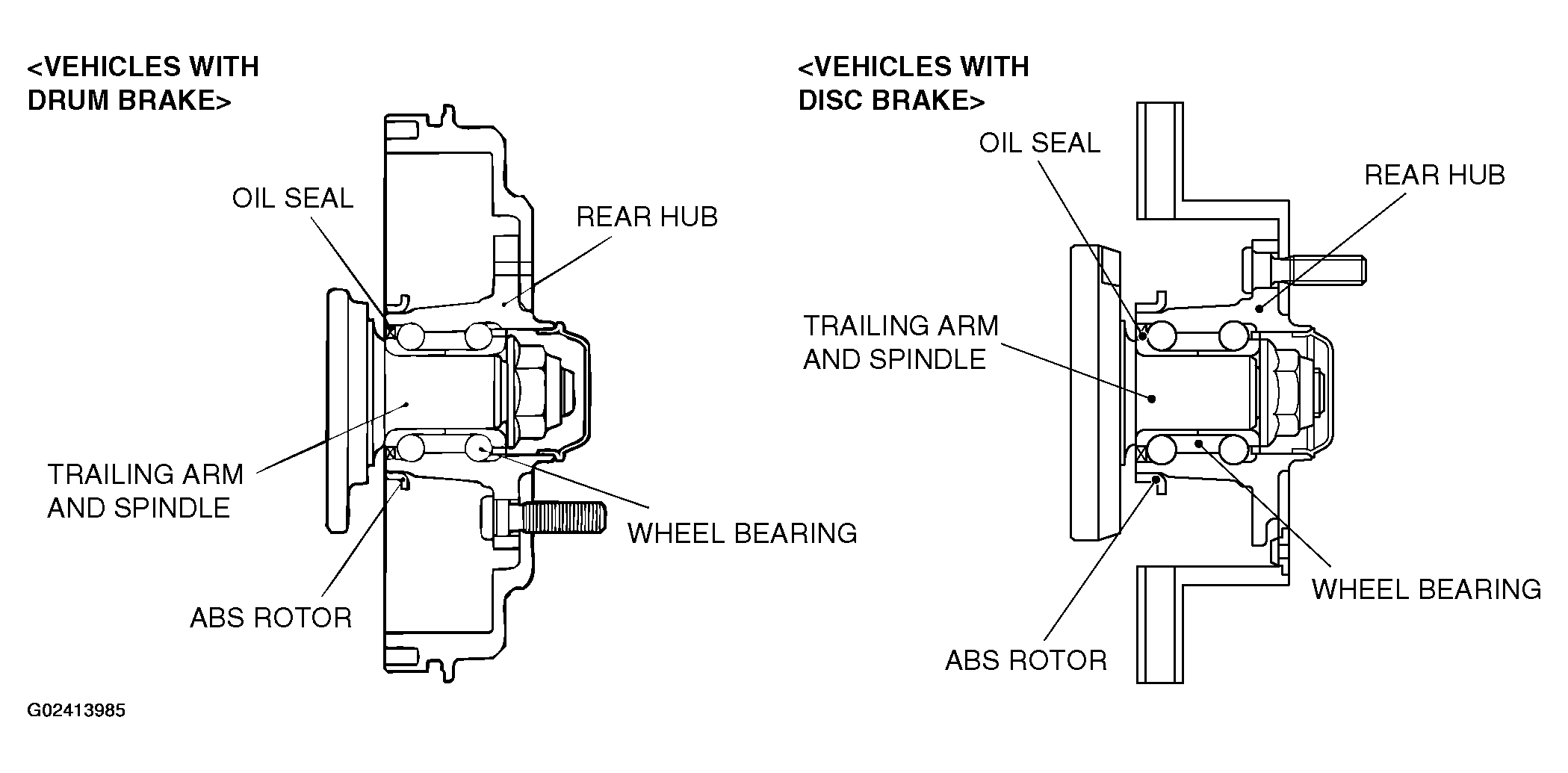

  Fig 1: Rear Axle Construction Diagram

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
