Adjustment Of Hood Height

Rotate the hood bumper by using arrow mark on the hood bumper as a guide to adjust the hood height. If the hood bumper is rotated just one turn, the hood height changes by approximately 3 mm (0.1 inch).

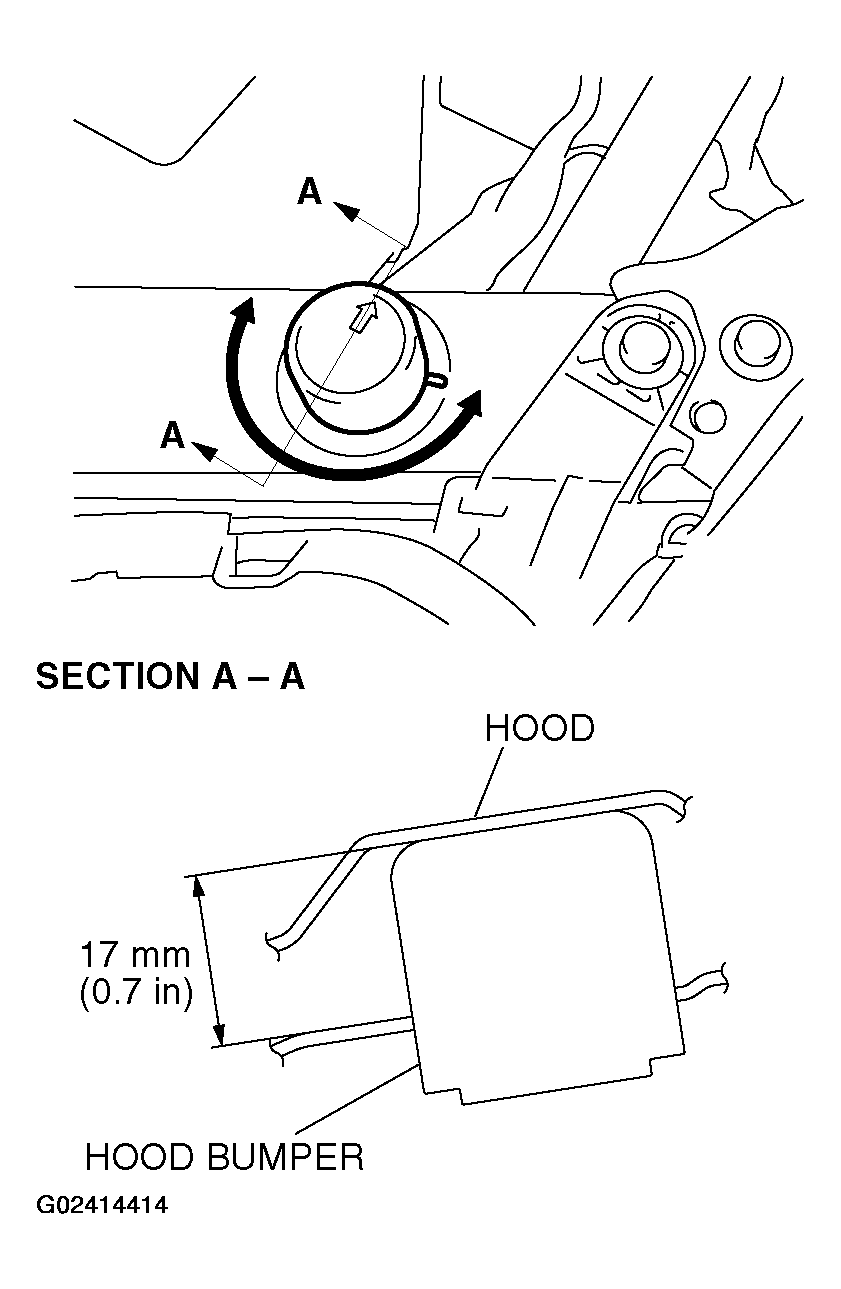

Fig 1: Adjusting Hood Bumper Height

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
