Door Switch Check

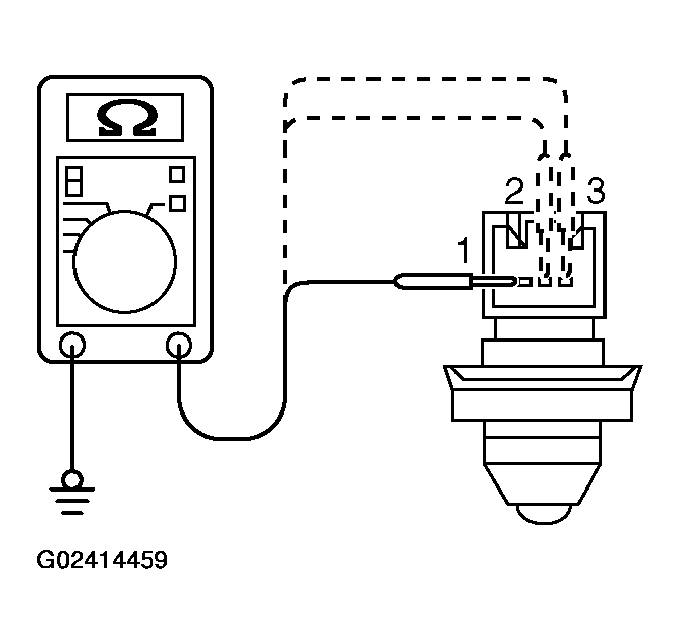

Fig 1: Checking Door Switch
G02414459Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOOR SWITCH CHECK

SWITCH POSITION  TESTER CONNECTION  SPECIFIED CONDITION
Released (ON) 1 - switch body, 2 - switch body, 3 - switch body Less than 2 ohms
Depressed (OFF) 1 - switch body, 2 - switch body, 3 - switch body Open circuit
