Disassembly And Assembly

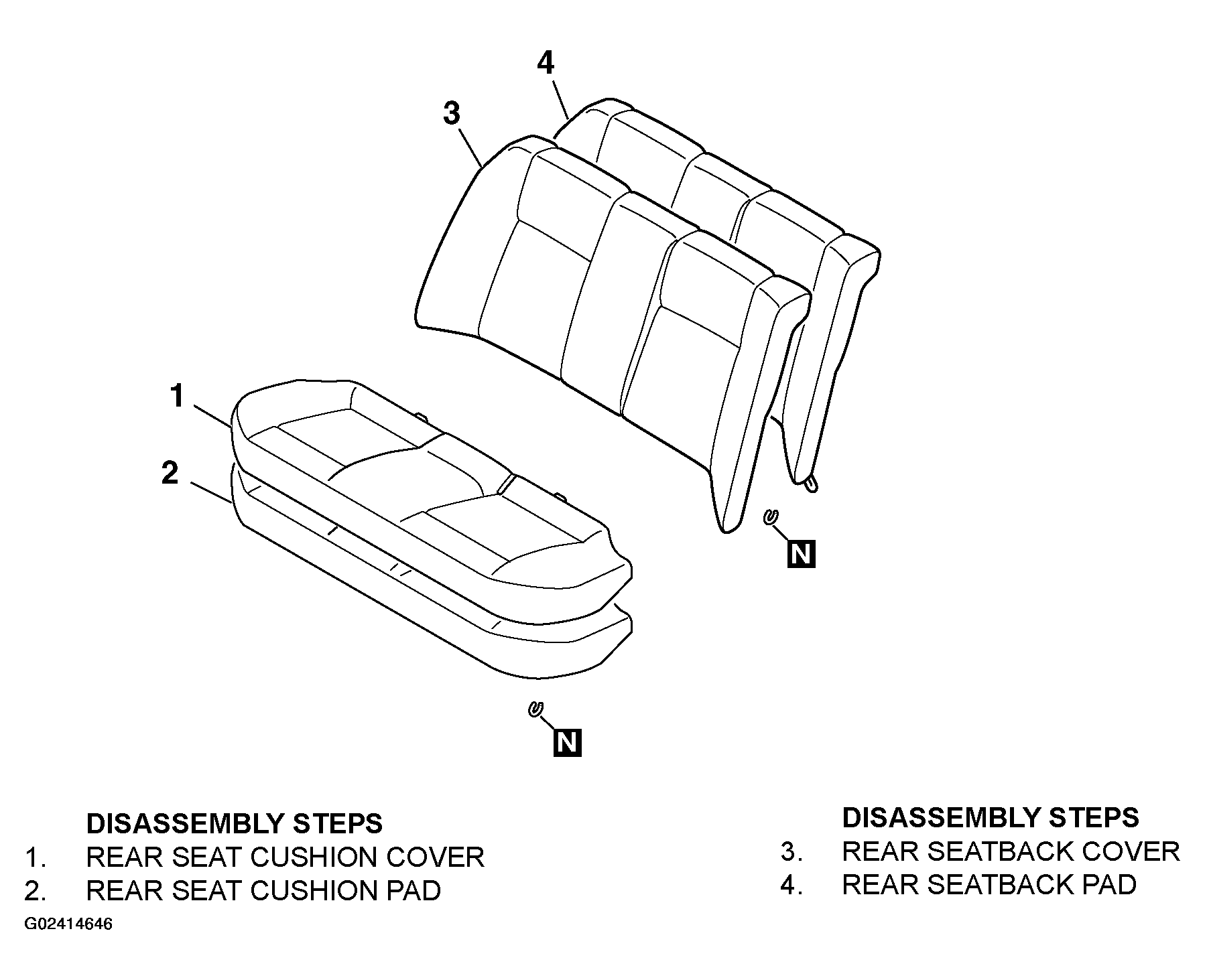

Fig 1: Removing Rear Seat Assembly (Full Seat)
G02414646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

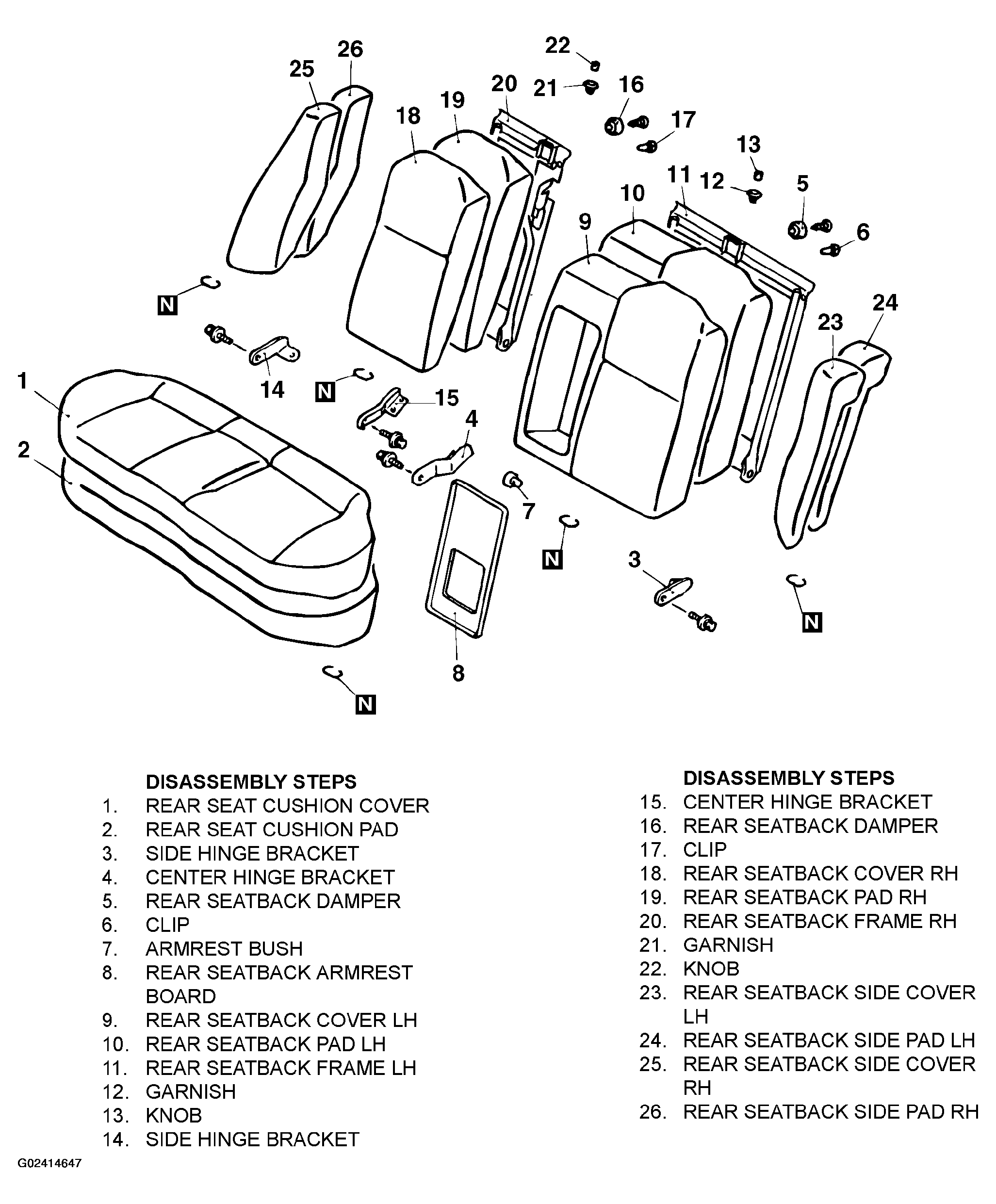

Fig 2: Installing Rear Seat Assembly (Split Seat)
G02414647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
