Service Specifications

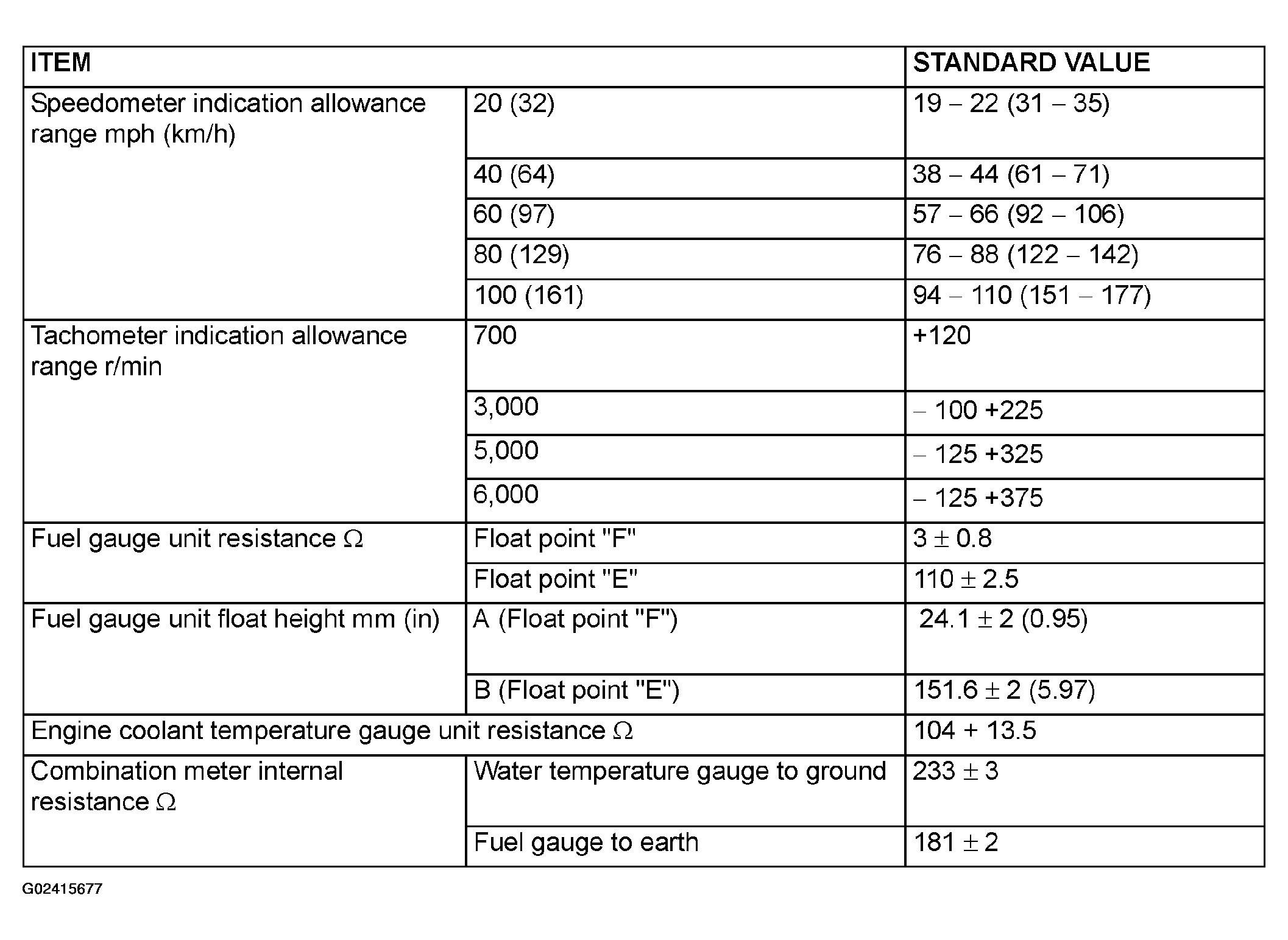

Fig 1: Combination Meter Specifications
G02415677Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

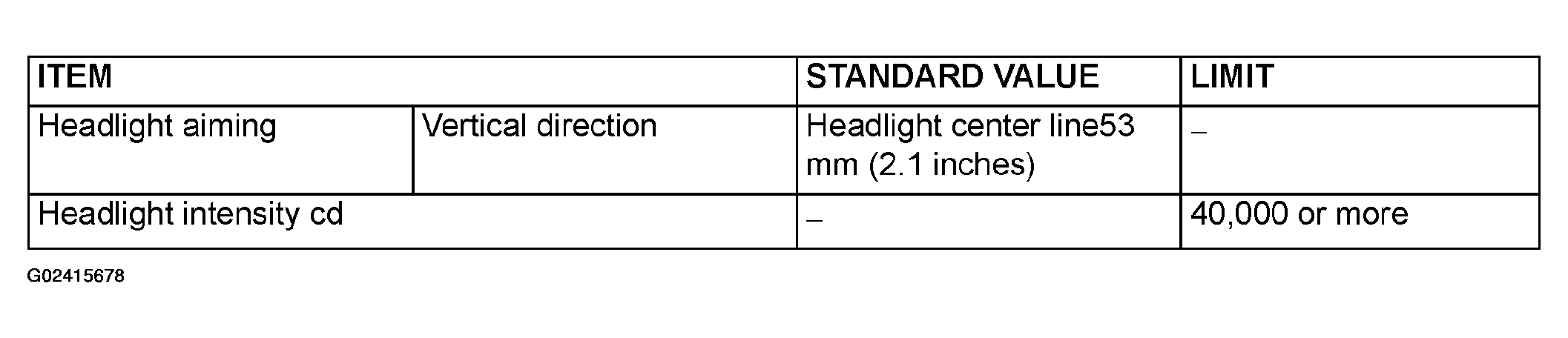

Fig 2: Headlight Specifications
G02415678Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
