Home >> Mitsubishi >> 2005 >> Lancer ES, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control -- Except Evolution >> Catalytic Converter >> Removal And Installation < Vehicles For CALIFORNIA > >> Notes

Removal And Installation < Vehicles For CALIFORNIA >: Notes

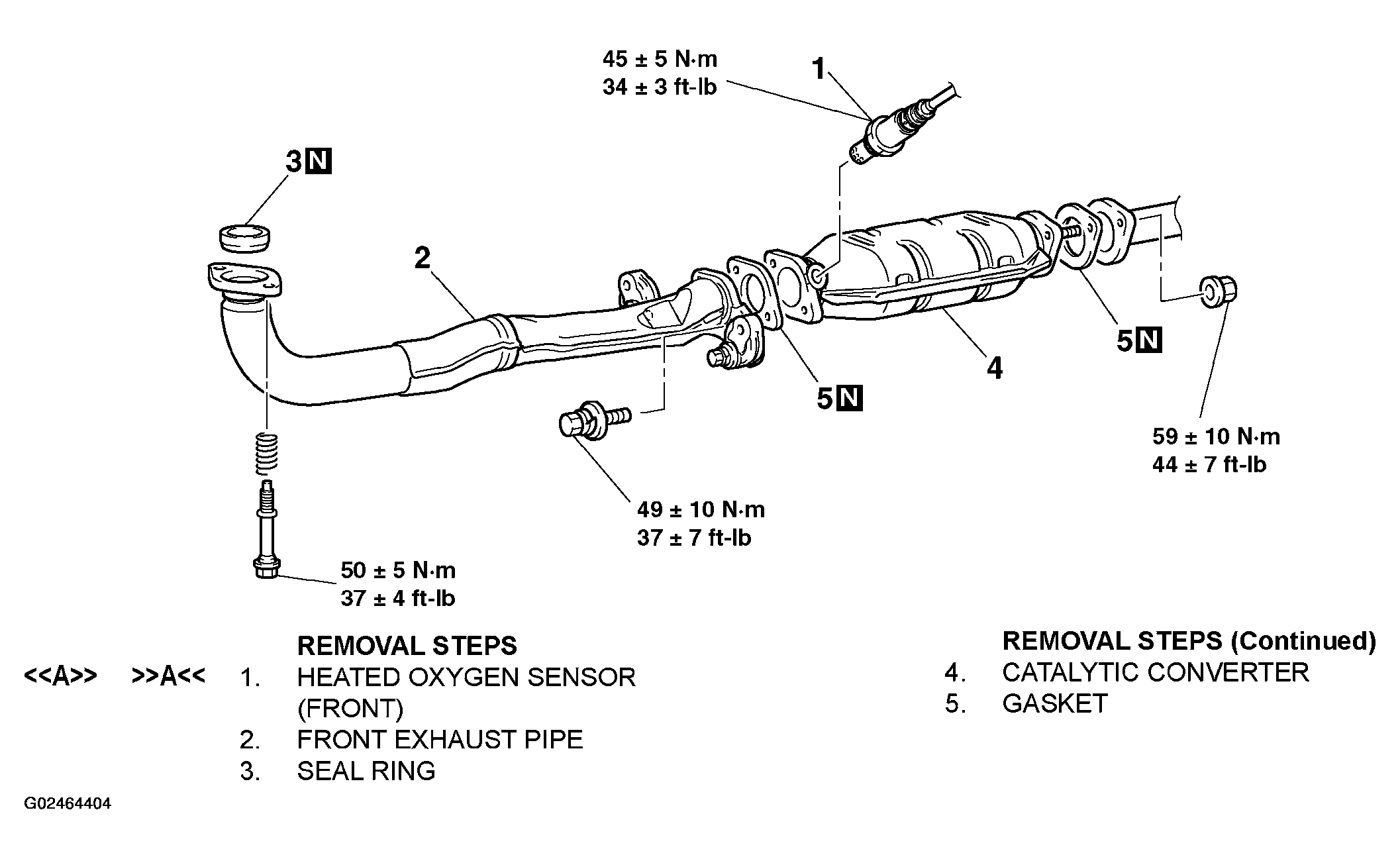

Fig 1: Removing Catalytic Converter And Components
G02464404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
