Fuel Pump Module Disassembly And Assembly: Notes

NOTE: For removal and installation, refer to FUEL PUMP (MODULE) REPLACEMENT  .

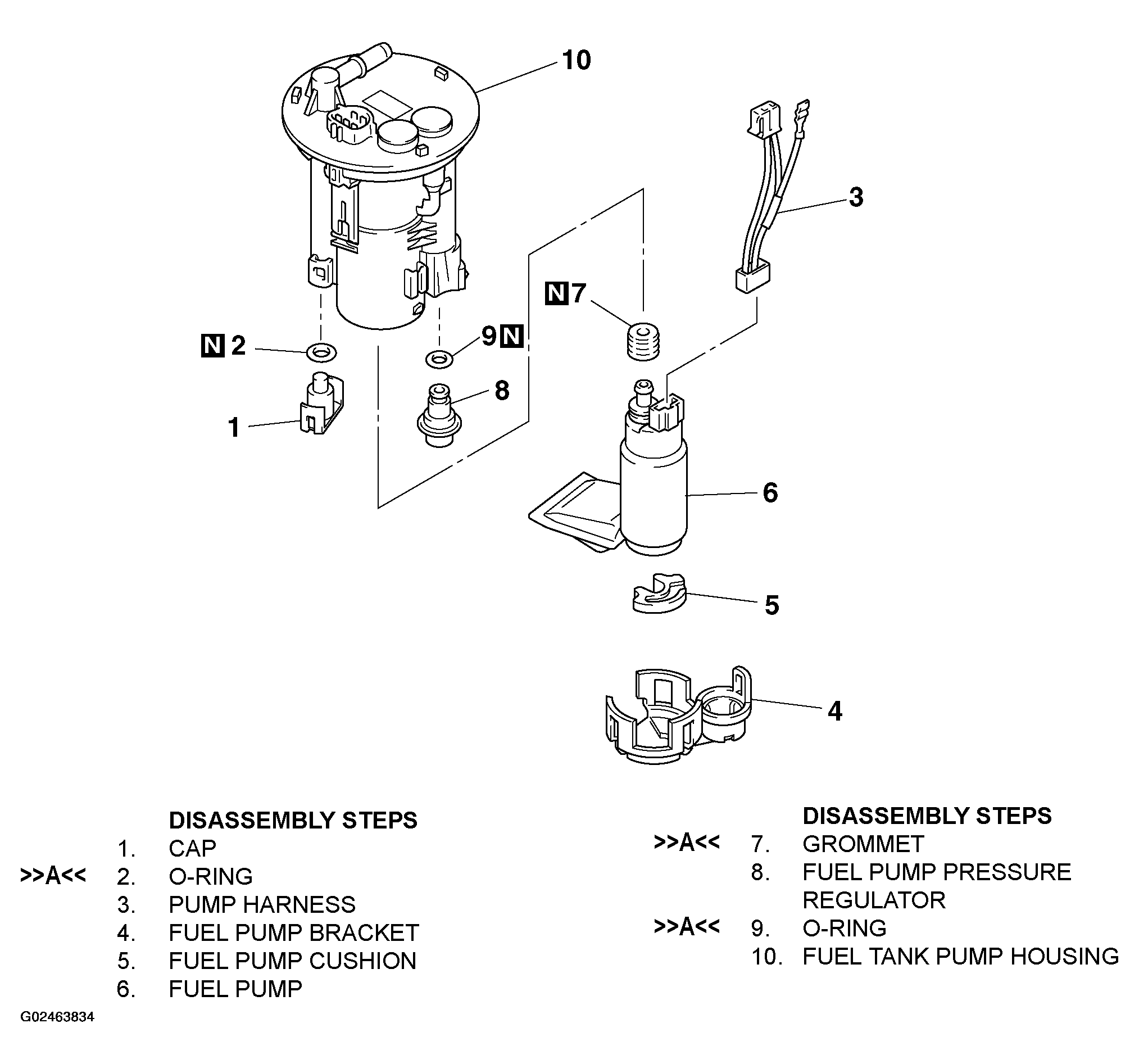

Fig 1: Identifying Fuel Pump Module Assembly Components
G02463834Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
