Home
>>
Mitsubishi
>>
2005
>>
Lancer ES, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Chassis Electrical -- Except Evolution
>>
Combination Meter Assembly
>>
Special Tools
Special Tools

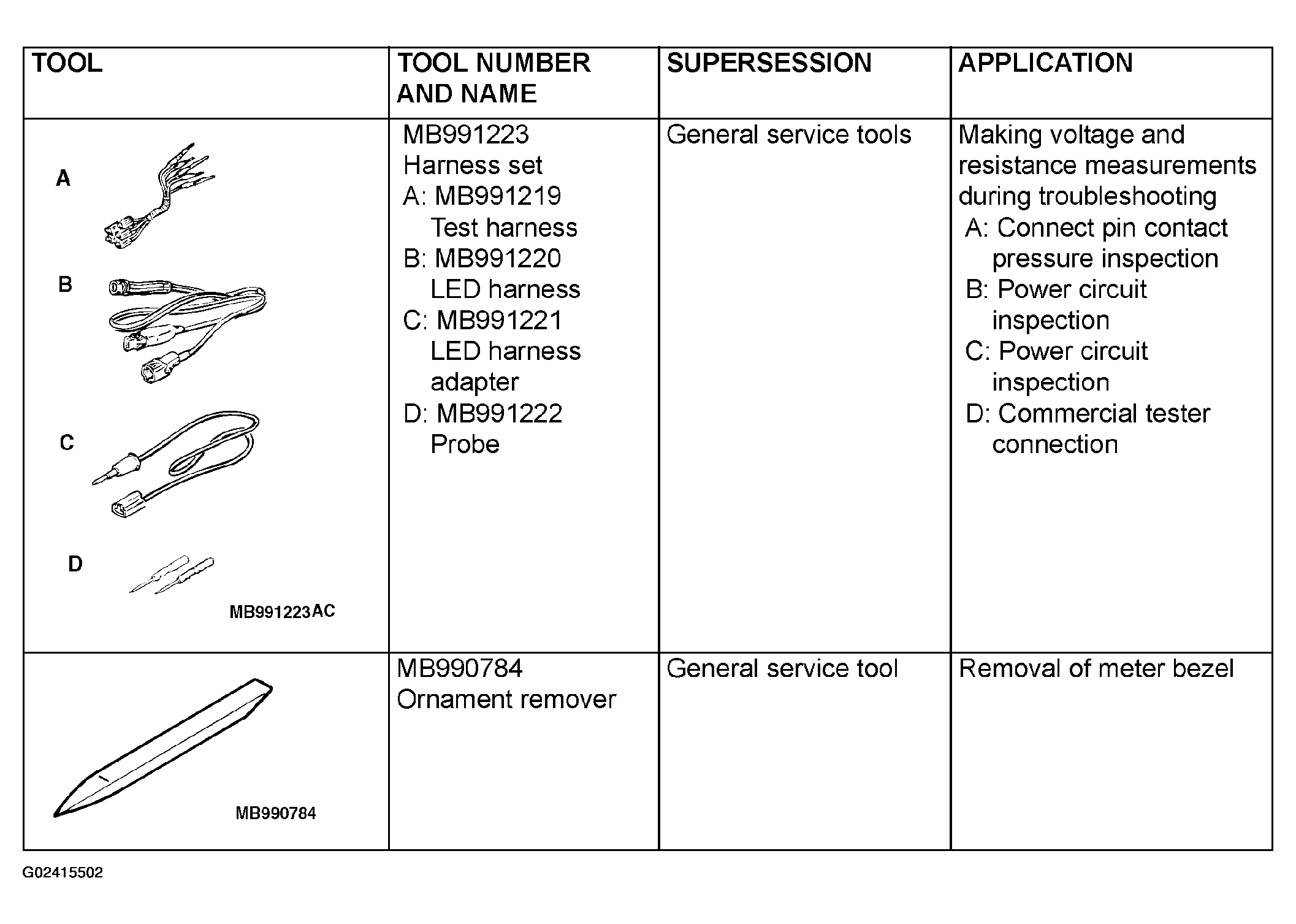

Fig 1: Identifying Special Tools Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

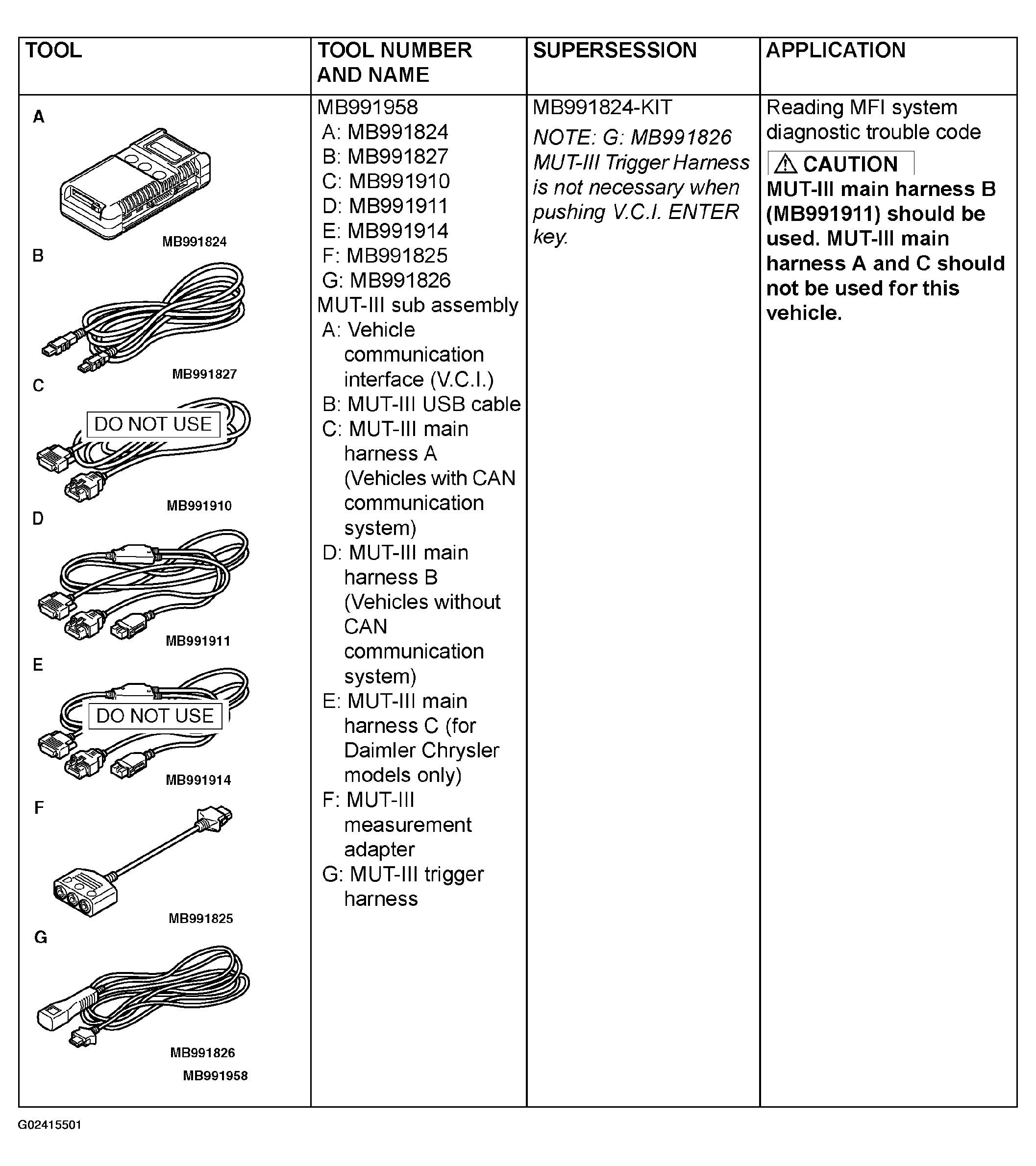

Fig 2: Identifying Special Tools Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
