Removal And Installation: Notes

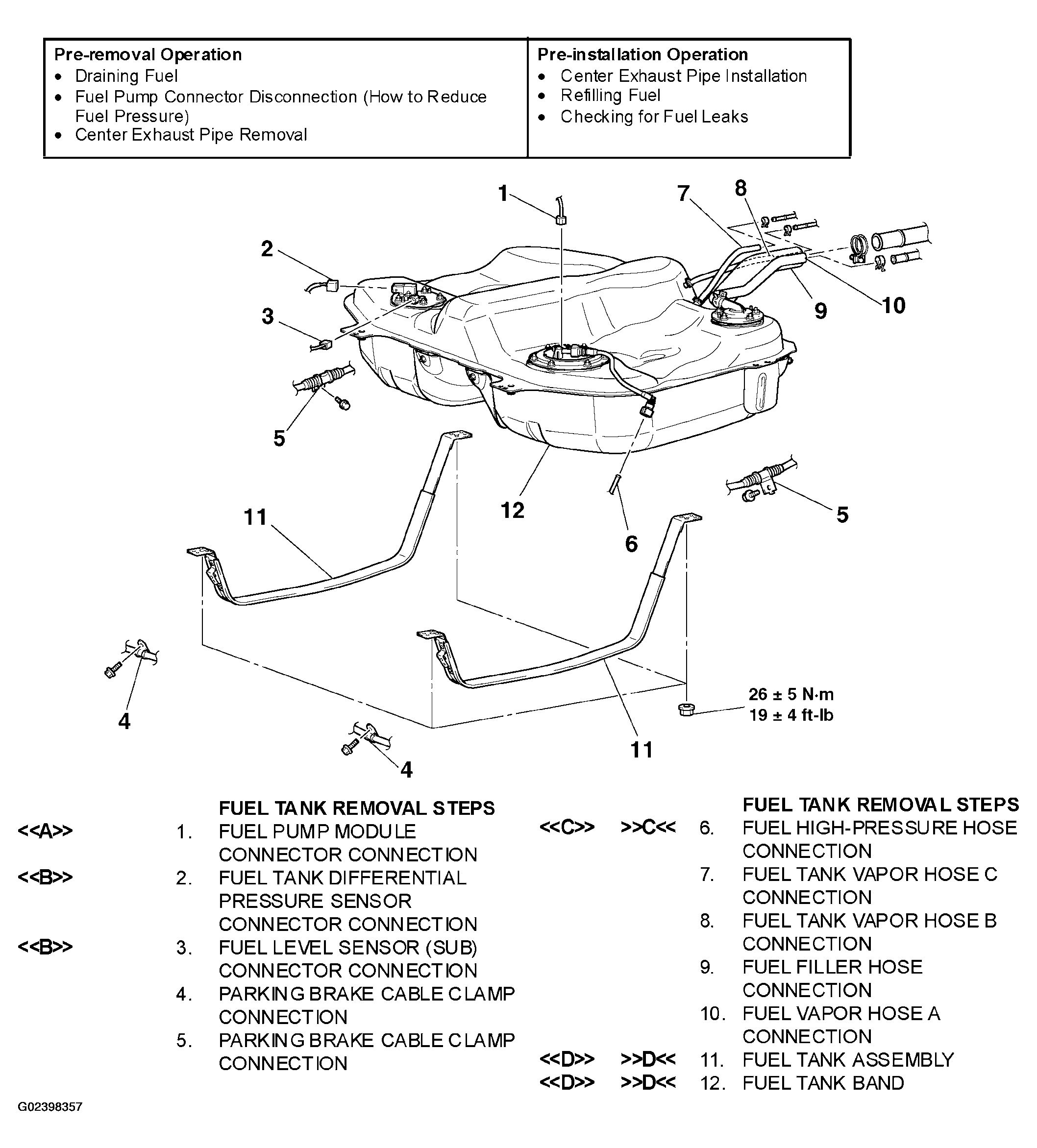

Fig 1: Removing And Installing Fuel Tank (1 Of 3)
G02398357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

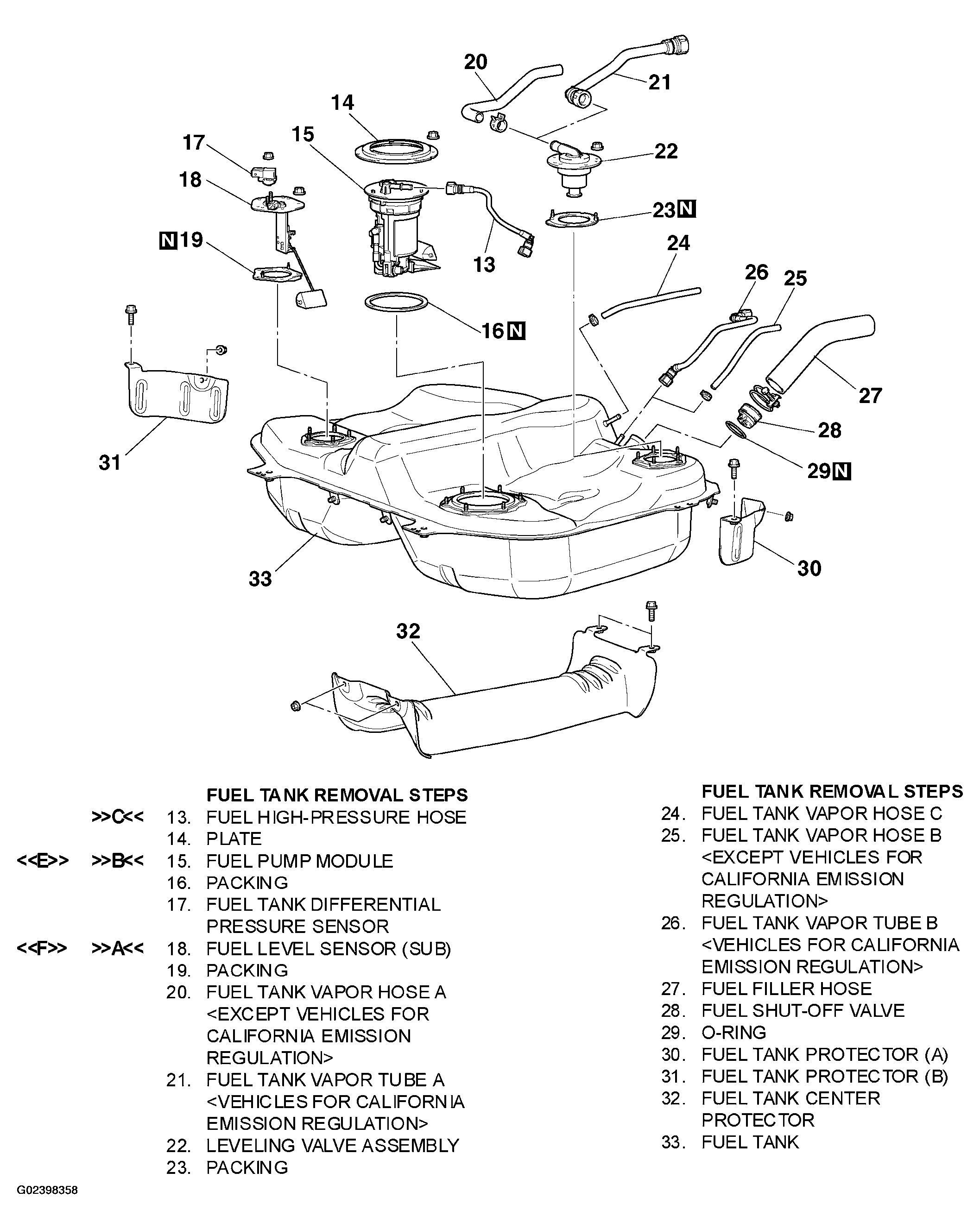

Fig 2: Removing And Installing Fuel Tank (2 Of 3)
G02398358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

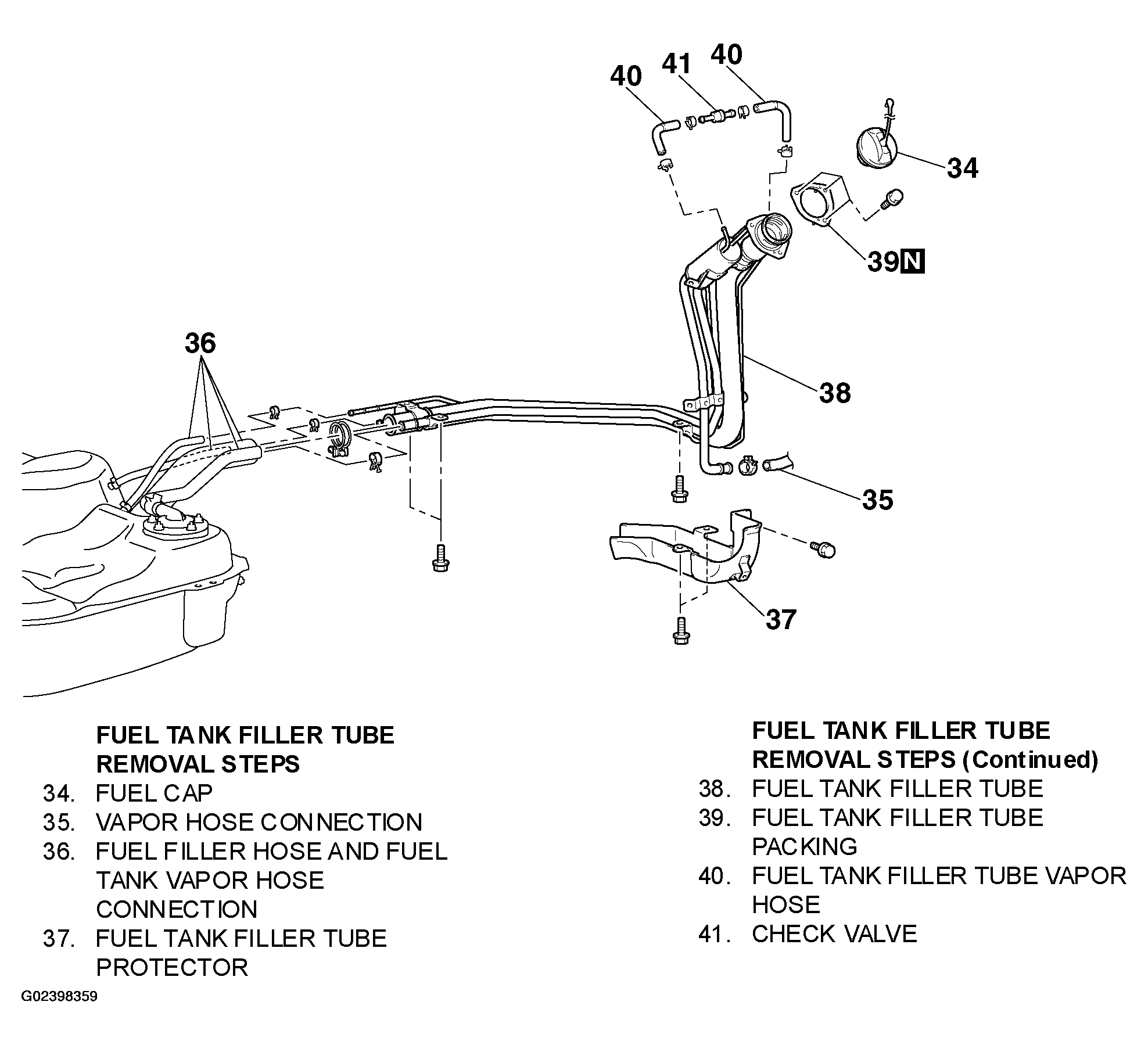

Fig 3: Removing And Installing Fuel Tank (3 Of 3)
G02398359Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
