Home >> Mitsubishi >> 2005 >> Galant LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> UNDERDRIVE Clutch And Input Shaft >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

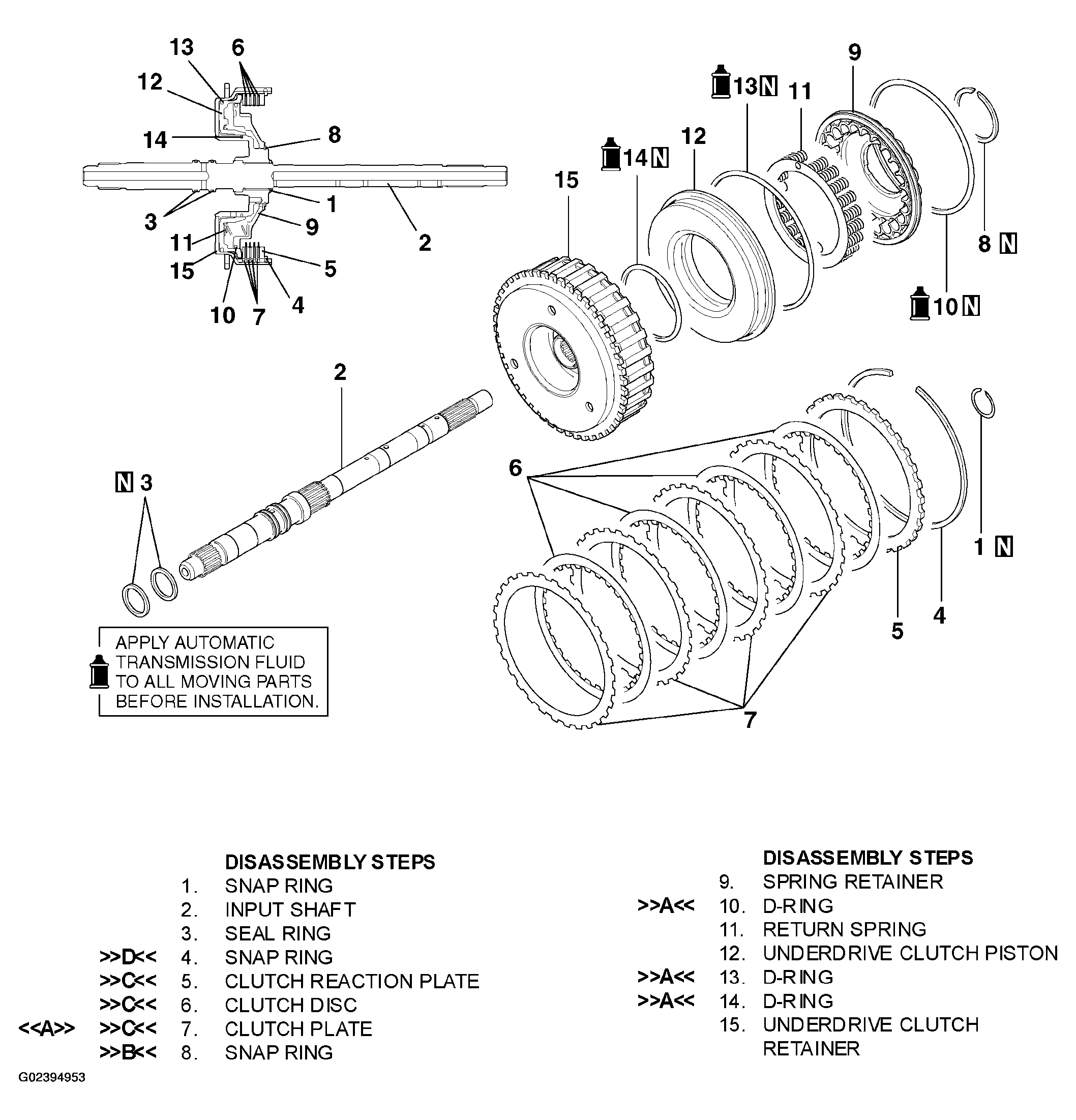

Fig 1: Disassembling Underdrive Clutch And Input Shaft Assembly
G02394953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
