Home >> Mitsubishi >> 2005 >> Galant LS >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

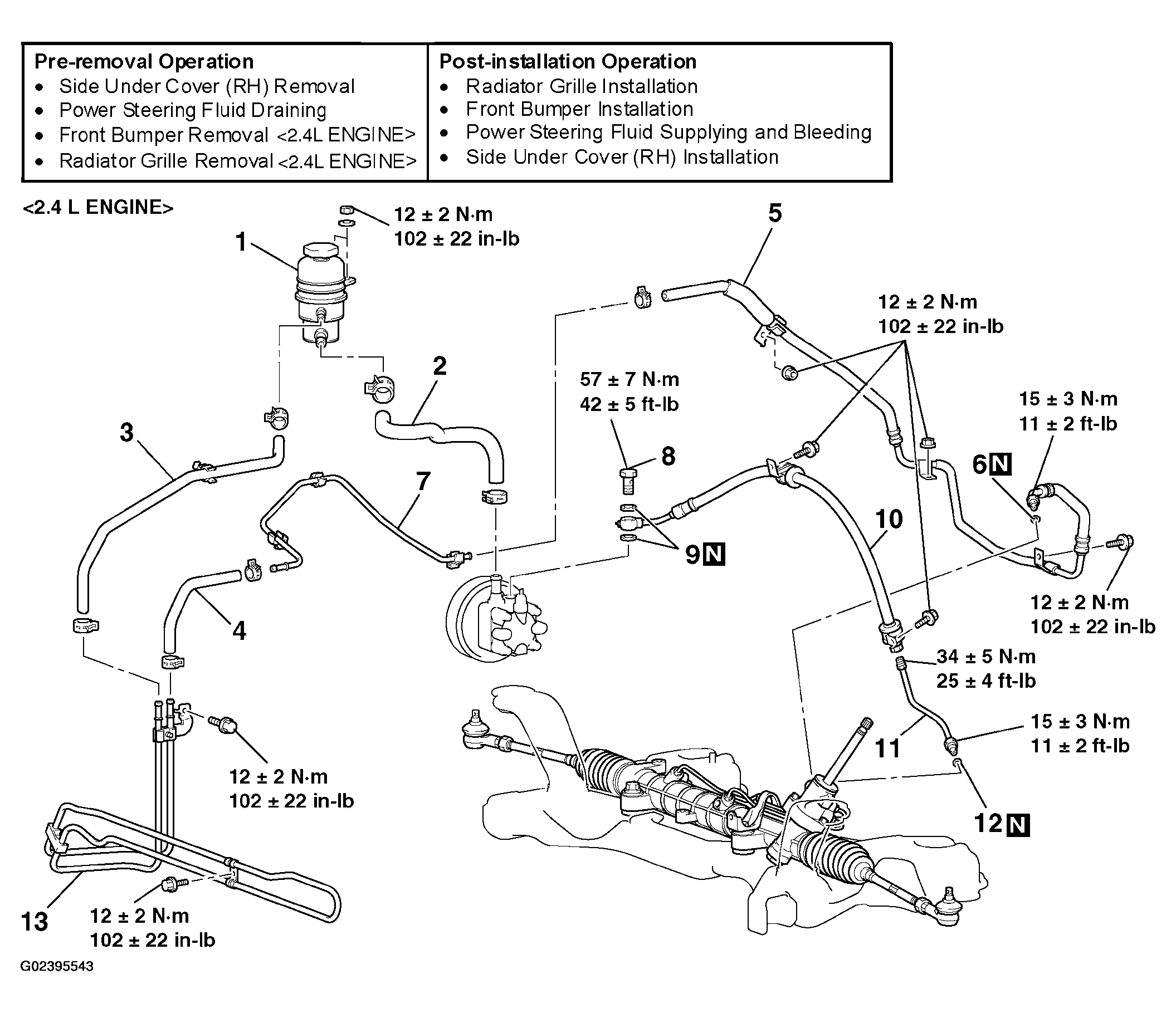

Fig 1: Removing/Installing Power Steering Hoses (2.4L Engine)
G02395543Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Removing/Installing Power Steering Hoses (3.8L Engine)
G02395544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
