Removal And Installation: Notes

WARNING:

Before removing the steering wheel and air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
When removing and installing the steering wheel, do not let it bump against the air bag module.

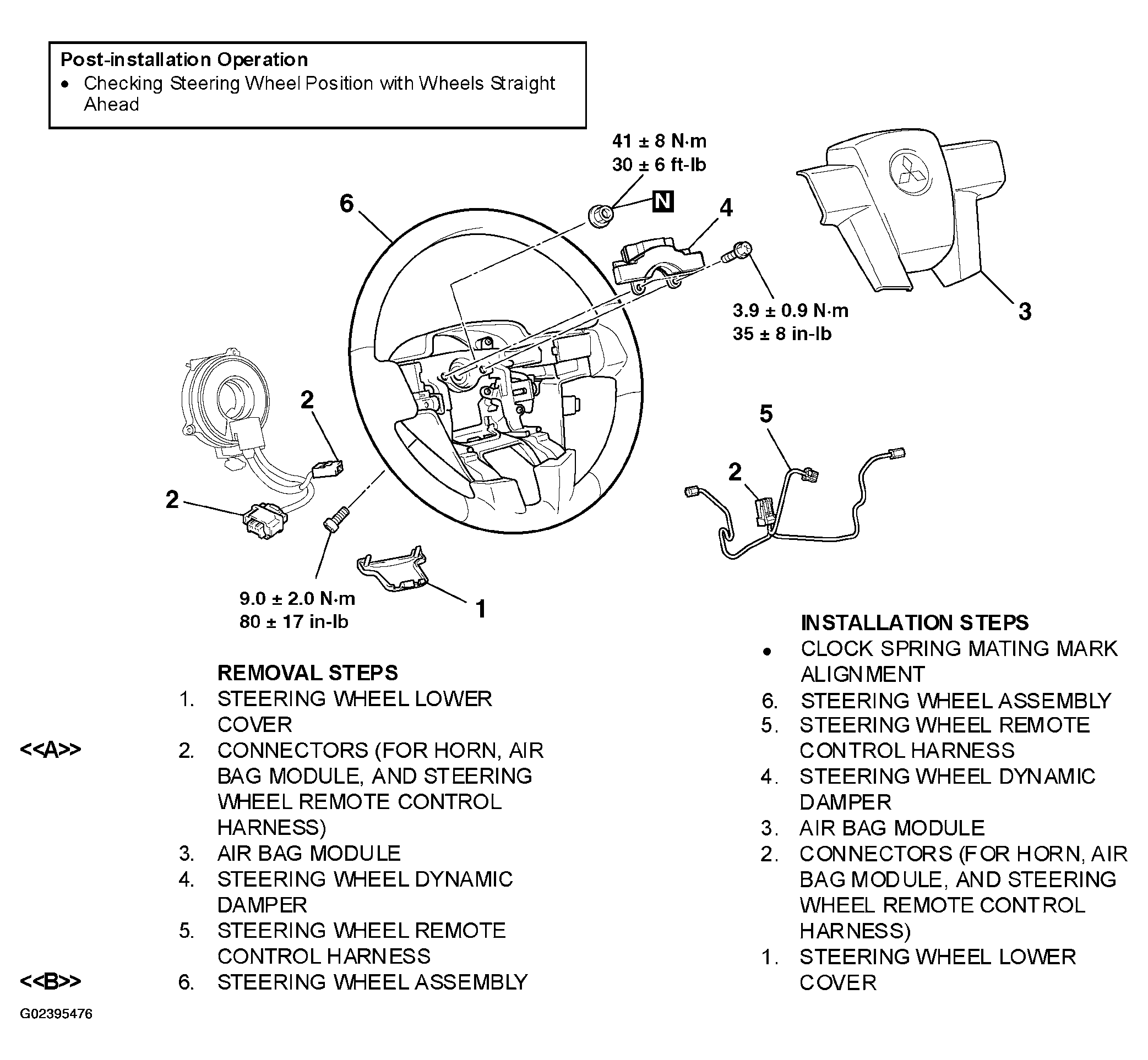

Fig 1: Exploded View Of Steering Wheel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For air bag module removal, refer to AIR BAG MODULE AND CLOCK SPRING .

Required Special Tool:
