Disassembly And Assembly: Notes

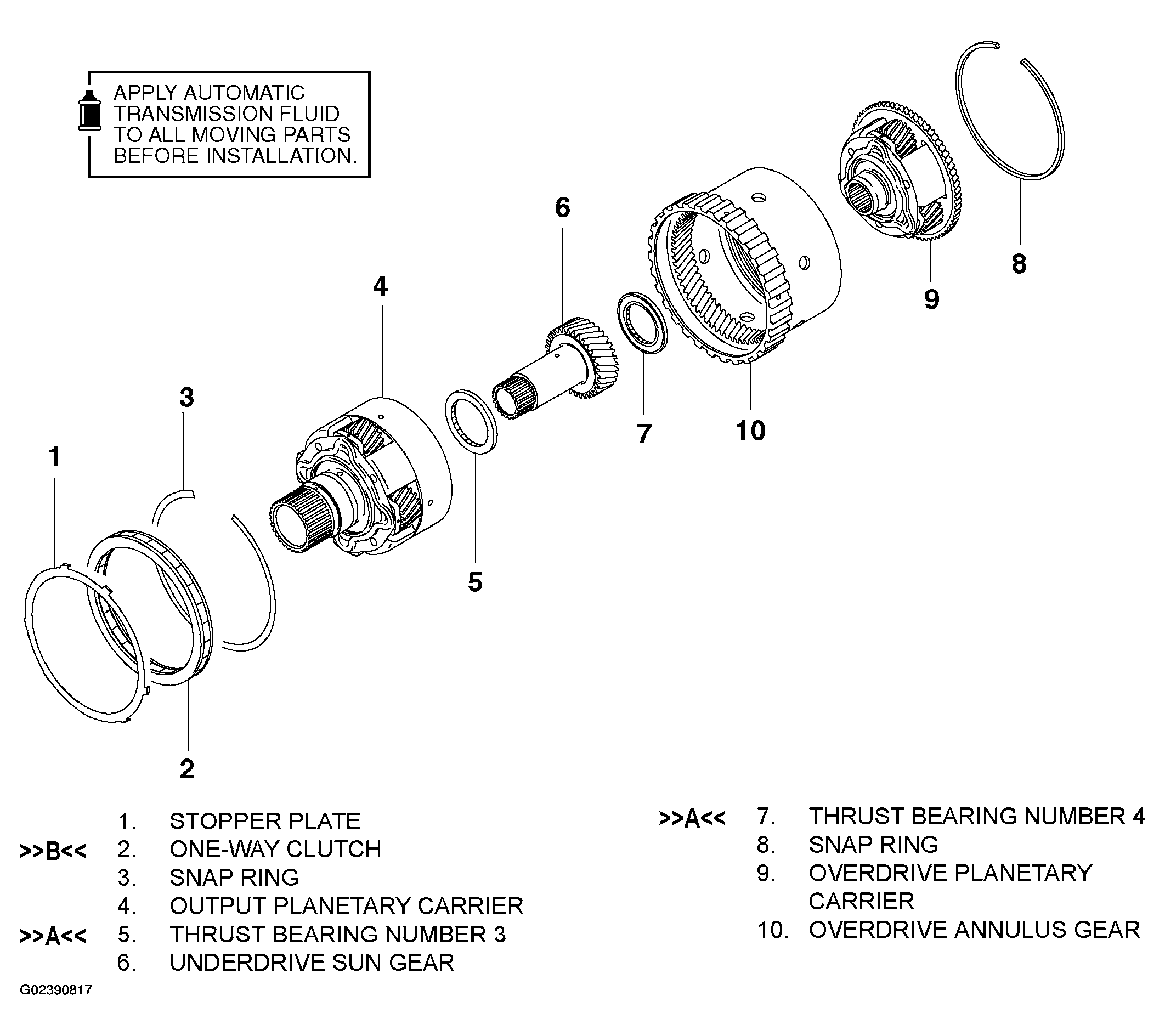

Fig 1: Disassembling & Assembly Of Planetary Gear

G02390817

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
