Removal And Installation: Notes

WARNING:
  • Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.
  • Do not drop or subject the seat slide sensor to impact or vibration. Replace the seat slide sensor, if dents, cracking, deformation, or rust are present.

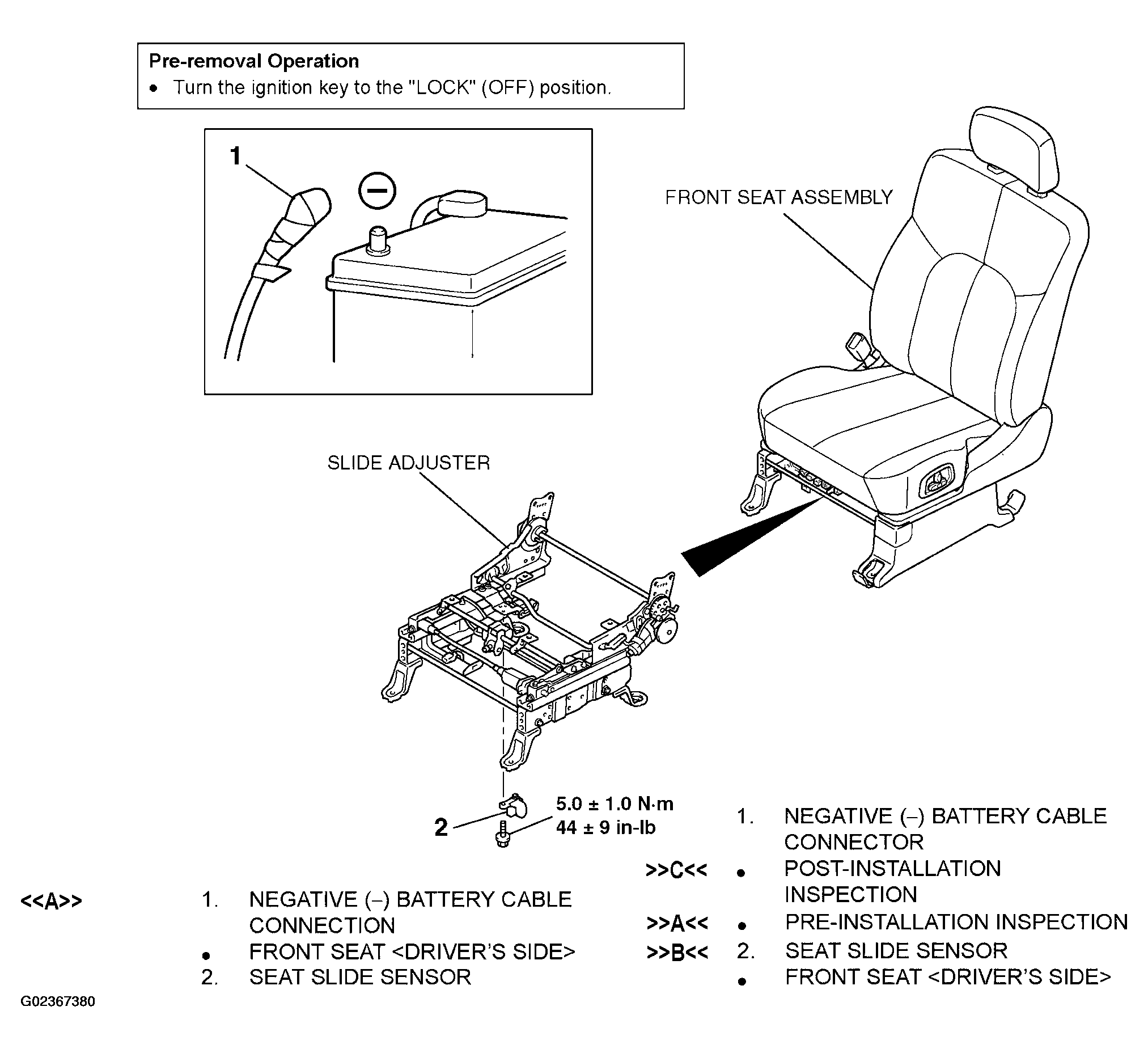

Fig 1: Removing & Installing Seat Slide Sensor
G02367380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
