Side Impact Sensor

  1. Check that there is no bending or corrosion in the center pillar.
  2. Check that there is no denting, breakage or bending of the side impact sensor.
  3. Check that there is no harness crimping, connector damage or bent terminals.
NOTE: The illustration shows the side impact sensor (RH). The position of the side impact sensor (LH) is symmetrical to this.

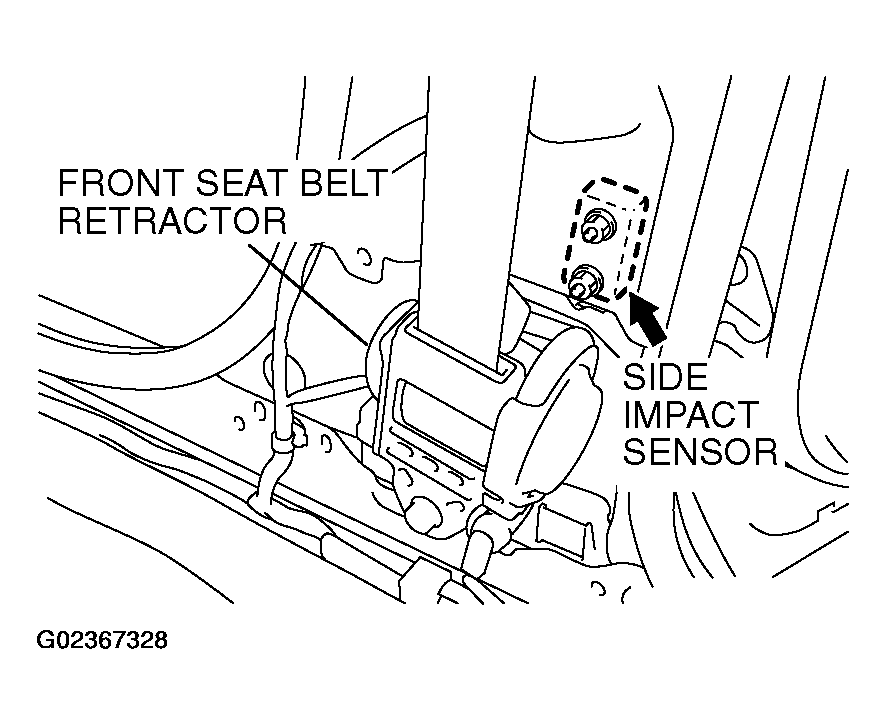

Fig 1: Identifying Side Impact Sensor And Front Seat Belt Retractor
G02367328Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
